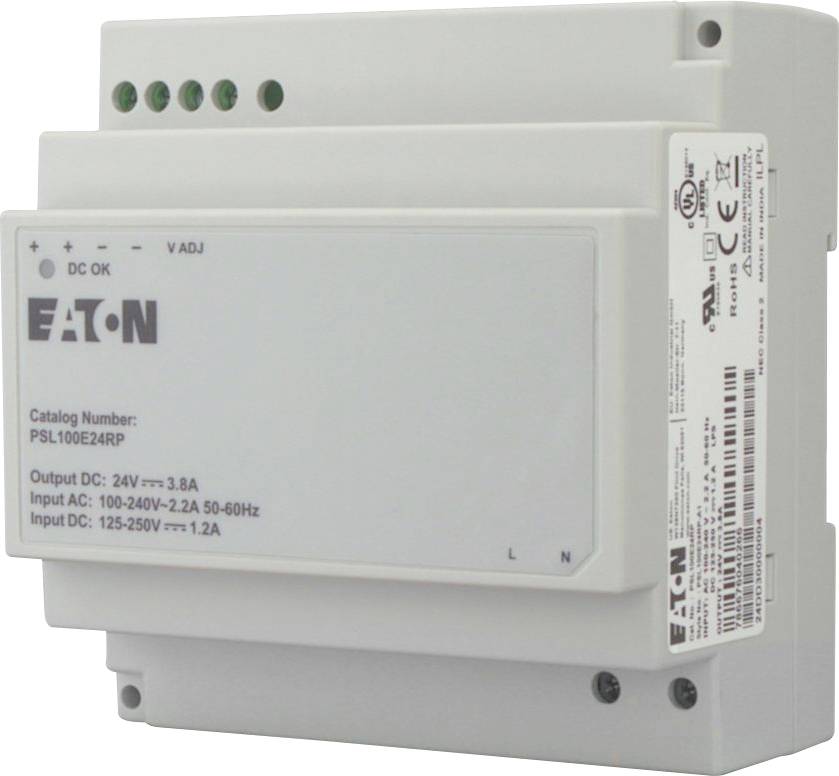

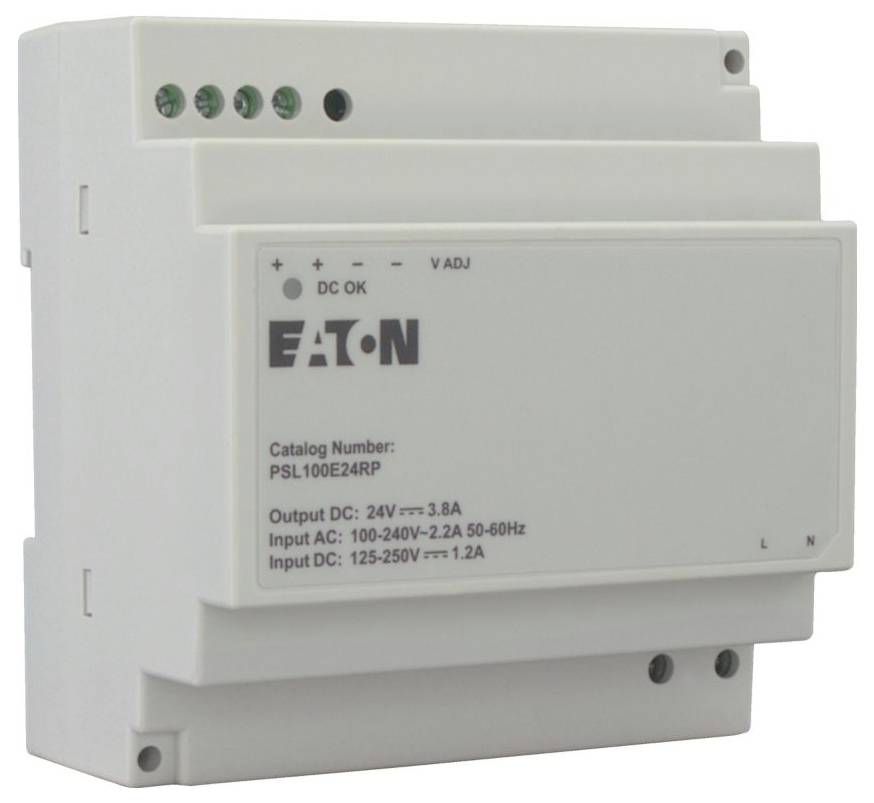

Eaton EP-401405 Power supply unit 24 V 3.8 A 100 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
14-day return policy included
Highlights & Details
Power supply, single-phase, 90 - 264 V AC / 24 V DC, 3.8 A
- Output 24 V / 3.8 A
- Power 100 W
- Screws
Technical specifications
- Type
Single phase
- Product type
Power supply unit
- Input voltage (max.)
264 V
- Max. output current
3.8 A
- Output current (max.) - rounded
3.8 A
- Min. input voltage
90 V
- Dim
(L x W x H) 91 x 89.9 x 55.6 mm
- Output voltage (max.)
24 V
- Connection
Screws
100 W
- Input frequency
50/60 Hz
IP20
- Operating temperature (max.)
71 °C
- Operating temperature (min.)
-25 °C
- Operating temperature
-25 °C - +71 °C
- Weight
0.35 kg
- Width
89.9 mm
- Height
55.6 mm
- Length
91 mm
- Type
PSL100E24RP
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3553261 Eaton EP-401405 Power supply unit 24 V 3.8 A 100 W
User & Safety Instructions
User & Safety Instructions 3553261 Eaton EP-401405 Power supply unit 24 V 3.8 A 100 W
Description
New! Suitable for mounting in series. Ideal for the supply of Easy E4 control relays with 24VDC
This text is machine translated.
This text is machine translated.
Hints
The power adapter can be operated with a direct current voltage. Please connect the positive pole to L, the negative pole to N and the PE connection to an earthing wire or to the machine ground.
