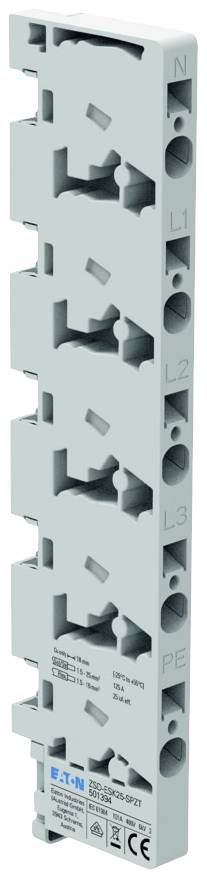

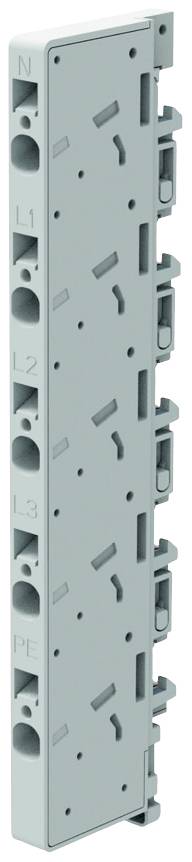

Eaton EP-501394 Feed-in terminal for ZSD and 40mm busbar, 5x 1.5-25mm² Power connection terminal Multicolour 1 pc(s)
EAN:
Part number:
Item no:
Product type
Power connection terminal
Factory colour
Multicolour
Dim
(W x D) 12 mm x 5 mm
Content
1 pc(s)
Width
12 mm
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.05
€ 25.83
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.88 / piece)
€ 26.88
plus VAT.
Highlights & Details
Feed-in terminal for ZSD and 40mm busbar, 5x 1.5-25mm²
- Feed directly next to the arrester in the lower connection compartment between 2 main circuit breakersSuitable for round wire connection
Technical specifications
- Width of terminal 12.5 mmMax. Conductor cross-section 25 mm²Max. Rated operating current Ie 101 A
- Product type
Power connection terminal
- Factory colour
Multicolour
- Dim
(W x D) 12 mm x 5 mm
- Content
1 pc(s)
- Width
12 mm
- Depth
5 mm
- Weight
0
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2734689 Eaton EP-501394 Feed-in terminal for ZSD and 40mm busbar, 5x 1.5-25mm² Power connection terminal Multicolour 1 pc(s)
Description
Supply terminal for ZSD and 40mm busbar, 5x 1.5-25mm², for space-saving feed up to 25mm² directly onto the busbar system, individually or in connection with the SPZT...-S surge arresters
