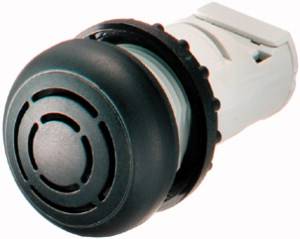

Eaton M22-AMC-AMP 198272 Acoustic reporter Pulse (Ø x H) 29.7 mm x 11.5 mm Black 1 pc(s) Piece
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
Only 10 Piece(s) available
Technical specifications
- Buzzer: 83 dB/10 cm, 18 - 30 mA, plus pole at X1, f = 2300 Hz with BA 9s lamp holder
- Connection cross-sections: 0.5 mm² - 1.5 mm²
- Rated surge voltage strength 4000 V/AC
- Rated insulation voltage 250 V.
- Over voltage category III
- Packaging type
Piece
- Product type
Acoustic reporter
- Switch/button features
Pulse
- Type
Intermittent tone
- Factory colour
Black
- Height
11.5 mm
- (Ø)
29.7 mm
- Dim
(Ø x H) 29.7 mm x 11.5 mm
IP40
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Content
1 pc(s)
- Type
M22-AMC-AMP
- RoHS-compliant
Yes
83 dB
DC
Pulse tone
0-0 V
0-0 V
24-24 V
Other
- UKCA
not relevant
