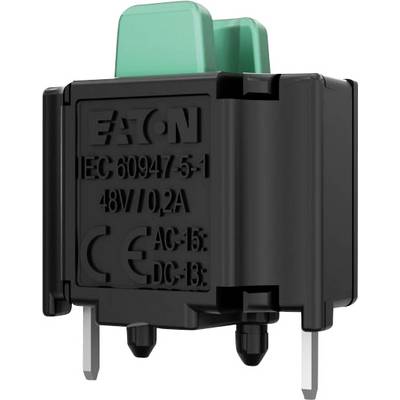

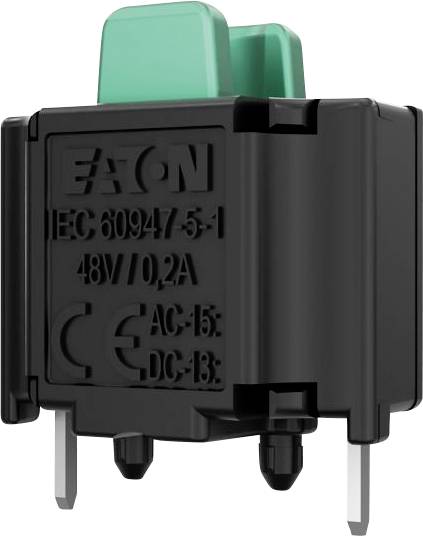

Eaton M22-KP10 Switch, Auxiliary switch SMD 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
14-day return policy included
Highlights & Details
M22 CONTACT 1S for printed circuit
- M22 command and warning devices can now be combined with printed circuits
Technical specifications
- SHOCK RESISTANCE 50 g, mechanical, according to IEC/EN 60068-2-27, half-sine pulse 11 ms
- Product type
Switch
- Switch/button features
SMD
- Connection
Type C CEE 7/16 plug 2.8 mm
- Type
plug on and integrate
- Recess diameter
22.5 mm
- Contact type
1 change-over
- Contact material
Gold plated
- Switch position
1 NO
IP00
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Width
15 mm
- Height
9.8 mm
- Mounting type
PCB mount
- Content
1 pc(s)
- Dim
(W x H) 15 mm x 9.8 mm
- Industrial packaging
Yes
- Weight
0.001 kg
- Type
M22-KP10
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3743278 Eaton M22-KP10 Switch, Auxiliary switch SMD 1 change-over 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3743278 Eaton M22-KP10 Switch, Auxiliary switch SMD 1 change-over 1 pc(s)
Information
Information 3743278 Eaton M22-KP10 Switch, Auxiliary switch SMD 1 change-over 1 pc(s)
Description
Eaton Moeller® series M22 contact piece, PCB-connection, 1 closer. Can be combined with the RMQ-Titan M22 range from Eaton
