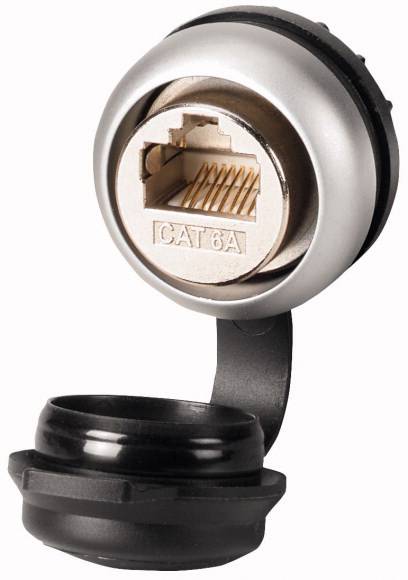

Network socket CAT 6A with removable protective cover, showing the network connection for Ethernet cable connection.

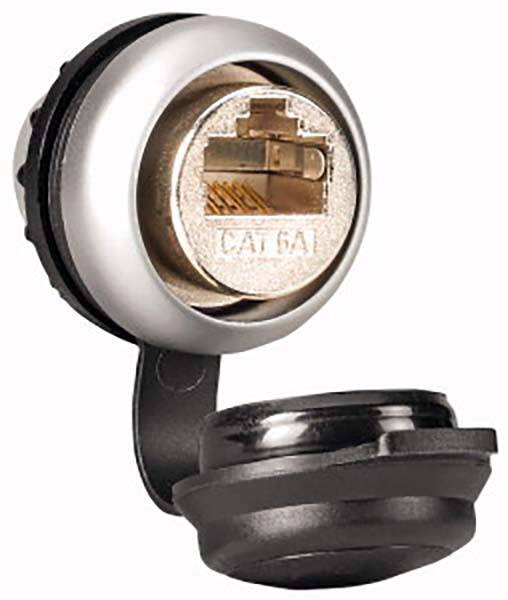

A round network socket outlet that is open and shows an RJ45 socket, suitable for CAT 6A cable connections.

1/5

Product type

RJ45 socket module

Connector type

RJ45 plug enclosure

Specification

CAT 6A

Connector standard

RJ45

Type

M22-RJ45-CAT6A

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

39 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 36.13 / piece)

€ 36.13

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Eaton M22-RJ45-CAT6A N/A EP-400122 RJ45 plug enclosure 1 pc(s)

Our service for you

Technical specifications

Type: M22-RJ45-CAT6A

Product type: RJ45 socket module

Connector type: RJ45 plug enclosure

: CAT 6A

Connector standard: RJ45

Connection: RJ45

Type A: RJ45

No. of ports: 8 x

Bore Ø: 22.5 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Max. temperature: 70 °C

Min. temperature: -25 °C

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2619347 Eaton M22-RJ45-CAT6A Eaton M22-RJ45-CAT6A N/A EP-400122 RJ45 plug enclosure 1 pc(s) EP-400122 RJ45 plug enclosure 1 pc(s

User & Safety Instructions

User & Safety Instructions 2619347 Eaton M22-RJ45-CAT6A Eaton M22-RJ45-CAT6A N/A EP-400122 RJ45 plug enclosure 1 pc(s) EP-400122 RJ45 plug enclosure 1 pc(s

Information

Information 2619347 Eaton M22-RJ45-CAT6A Eaton M22-RJ45-CAT6A N/A EP-400122 RJ45 plug enclosure 1 pc(s) EP-400122 RJ45 plug enclosure 1 pc(s

Description

All around convincingThe M22-RJ45-CAT6A panel jack provides reliable and easy access to the control cabinet technology. The configuration, configuration and programming of the control cabinet is significantly simplified thanks to the RJ45 socket. Powerful!The M22-RJ45 impresses with its high protection class of IP65 and an ambient temperature of -25°C to +70 °C. Its improved shielding and greater power reserves make it a great extension of the existing M22-RJ45-SA. The M22-RJ45-CAT6A enables transmission frequencies of up to 500 MHz, which enables Ethernet applications up to 10-Gigabit.FeaturesIndustry 4.0 developments confirm the need for such an interface. With ever higher operating frequencies required, the M22-RJ45-CAT6A can keep up with up to 10 Gigabit Ethernet and optimally supplements the modern control cabinet.CompatibilityThe mounting socket is for cat. 6a, but can also be easily backward compatible with existing categories such as cat. 5e. DesignThe M22-RJ45-CAT6A fits seamlessly into the RMQ-Titan range and can be easily integrated into a wide range of applications.

This text is machine translated.

Features

Protection class IP65 with closed protective flapTransmission frequencies up to 500 MHzEnables up to 10 Gigabit Ethernet applicationsAmbient temperatures from -25 to +70 °C.Backward compatible with existing categories (e.g. cat 5e)
