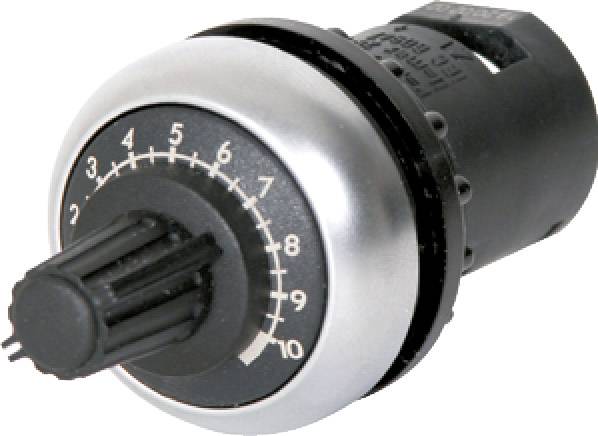

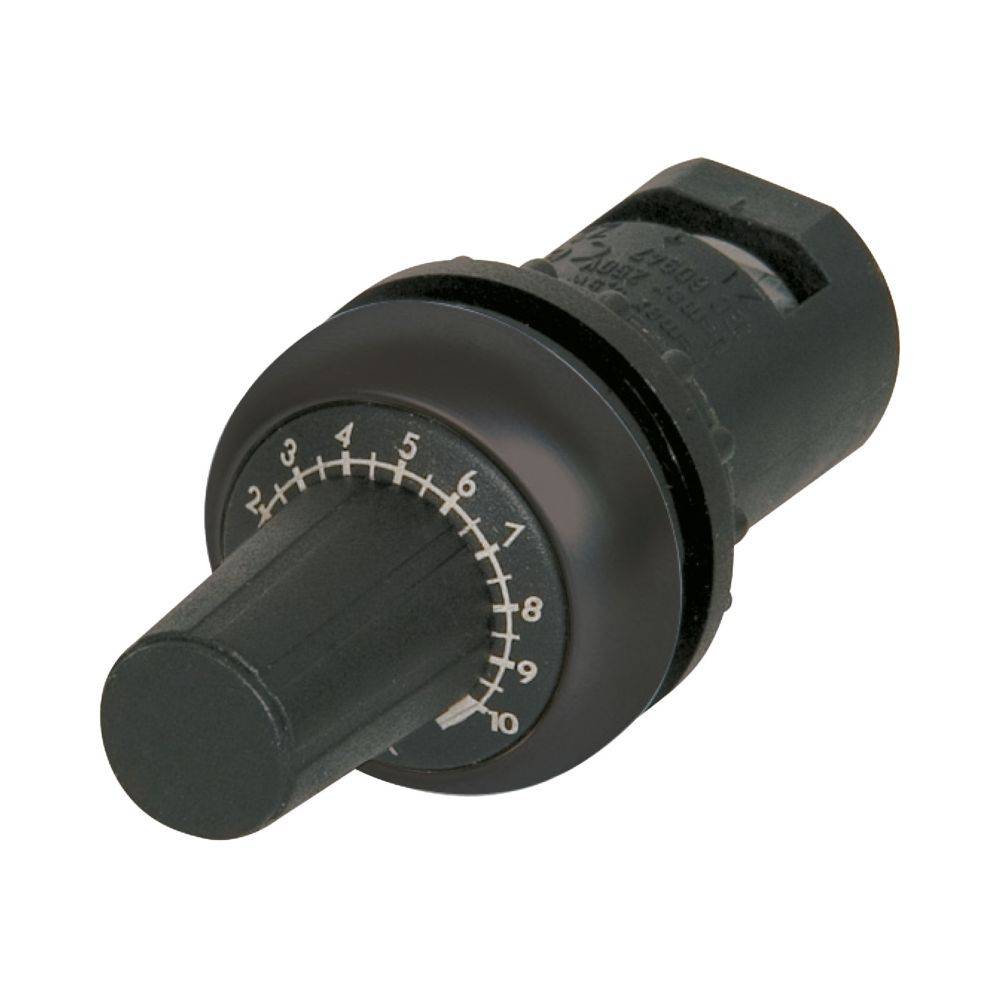

Eaton M22S-R100K M22S-R100K Single turn rotary pot Mono 0.5 W 100 kΩ 1 pc(s)
EAN:
Part number:
Item no:
Product type
Single turn rotary pot
Resistance
100 kΩ
Resistance characteristic
linear
Output
Mono
Power rating
0.5 W
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 68.06
5
3% = € 2.04
€ 66.02
10
5% = € 3.40
€ 64.66
50
10% = € 6.81
€ 61.25
100
20% = € 13.61
€ 54.45
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 68.06 / piece)
€ 68.06
plus VAT.
14-day return policy included
Highlights & Details
Rotary Potentiometer M22
- 100 kΩ
- linear
Technical specifications
- Installation diameter: 22 mm
- With a scale of 1 to 10
- Product type
Single turn rotary pot
- Resistance
100 kΩ
- Resistance characteristic
linear
- Output
Mono
- Power rating
0.5 W
- Connection
Screws
- Axle length
32.9 mm
- Axle type
Serrated
Plastic
- Height
29.2 mm
- (Ø)
29.5 mm
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Tolerance ±
10 %
IP66
- Content
1 pc(s)
- Type
M22S-R100K
- Dim
(Ø x H) 29.5 mm x 29.2 mm
22.5 mm
0.5 W
100000 Ohm
Screw connection
IP66
1-1
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1308762 Eaton M22S-R100K M22S-R100K Single turn rotary pot Mono 0.5 W 100 kΩ 1 pc(s)
Description
Scope of delivery
- M22S-R100K.
