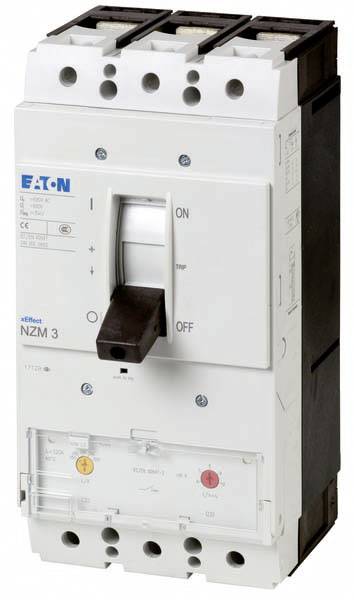

Eaton NZMN3-A400-BT Circuit breaker 1 pc(s) Adjustment range (amperage): 320 - 400 A Switching voltage (max.): 690 V AC
EAN:
Part number:
Item no:
Product type
Circuit breaker
Amperage adjustment range (max.)
400 A
Connection
Clamp
Type
NZMN3-A400-BT
Amperage adjustment range (min.)
320 A
Datasheet (PDF)
Number
Total (€ 2,037.82 / piece)
€ 2,037.82
plus VAT.
14-day return policy included
Technical specifications
- Type of connection Main circuit: Frame terminal
- Type of actuator: Rocker arm
- Rated current IU: 400 A
- Setting range of the instantaneous short-circuit actuator: 2400 A - 4000 A
- Complete unit with protection unit: Yes
- Motor drive optional: Yes
- Position of connection for main circuit: Front
- Product type
Circuit breaker
- Type
NZMN3-A400-BT
- Amperage adjustment range (min.)
320 A
- Amperage adjustment range (max.)
400 A
- Adjustment range (amperage)
320 - 400 A
- No. of pins
3-pin
- Switching voltage (max.)
690 V AC
- Mounting type
Fixed
- Connection
Clamp
IP20
- Content
1 pc(s)
- RoHS-compliant
Yes
0
0
400 A
FALSE
3
320-400 A
0
690-690 V
IP20
Front side
FALSE
Frame clamp
Rocker lever
FALSE
50 kA
0-0 A
2400-4000 A
FALSE
FALSE
TRUE
Built-in device fixed built-in technique
FALSE
TRUE
- UKCA
yes
