Yellow and red load disconnector in the OFF position, with a black switchbox, suitable for electrical safety applications.

Yellow and red load disconnector in the OFF position, with a black switchbox, suitable for electrical safety applications.

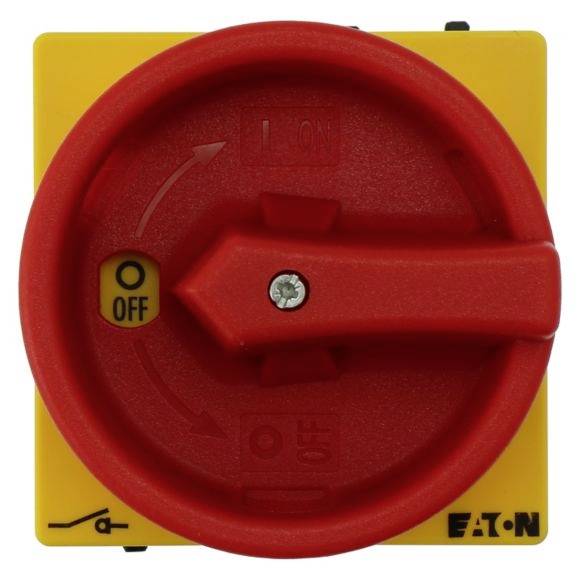

A red emergency stop switch on a yellow background, showing the 'OFF' position. Design by Eaton, used to interrupt an electrical circuit.

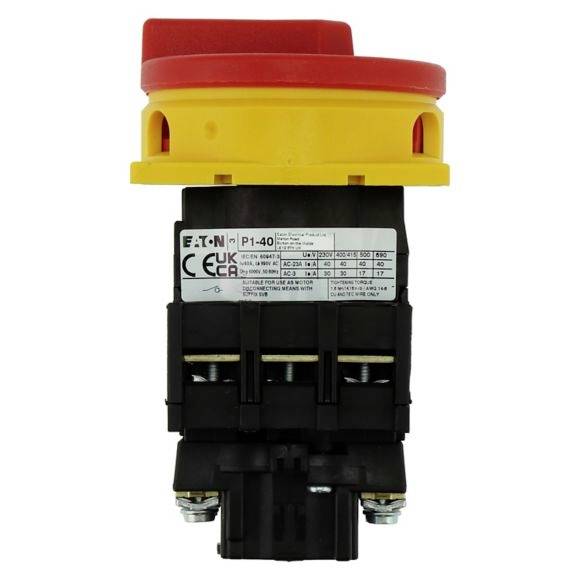

Emergency stop switch by Eaton, model P1-40. Red rotary knob with yellow protective cover on a black housing. CE marking visible.

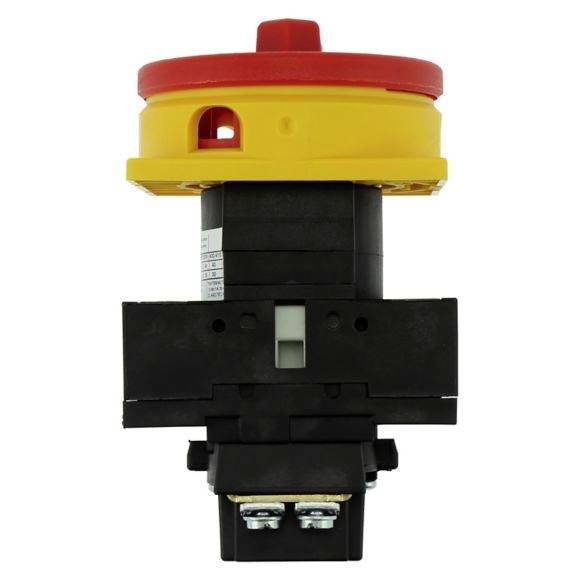

A red emergency stop switch with a yellow housing, mounted on a black base. Primarily used in machinery for safety shutdown.

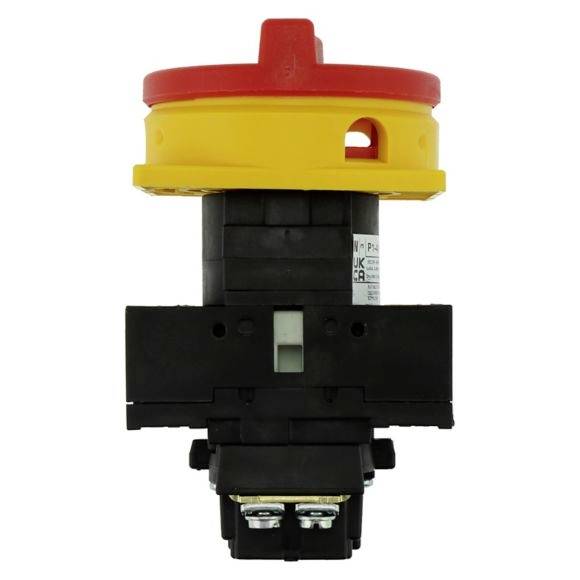

Yellow-red emergency stop switch in an unlocked position. The switch is mounted on a black enclosure.

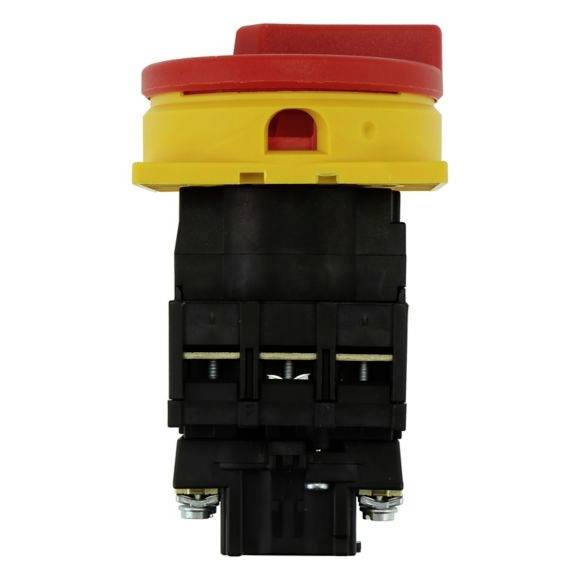

A red emergency stop button on a yellow background, used for quickly shutting down machinery in an emergency.

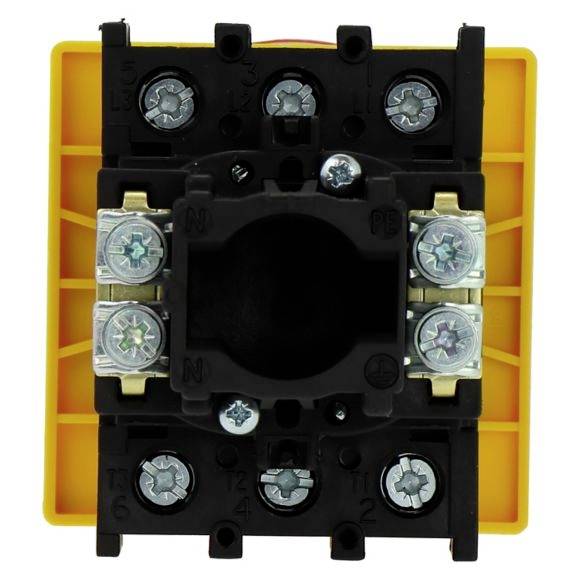

An electrical switch with six screw connections and a yellow frame.

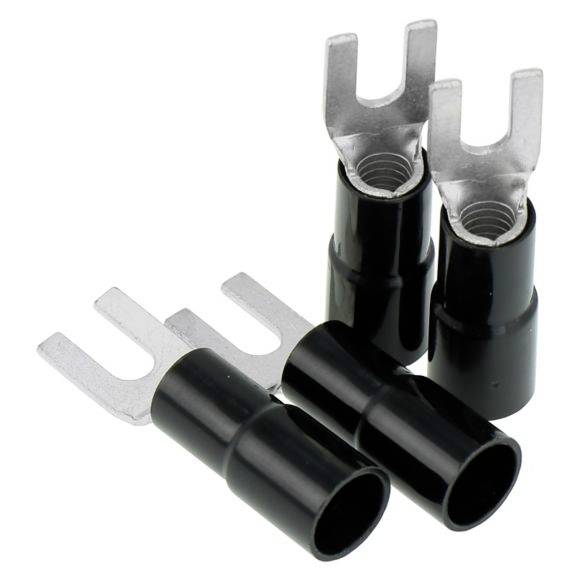

'Four black cable shoes with fork terminals for electrical connections in a set, against a white background.'

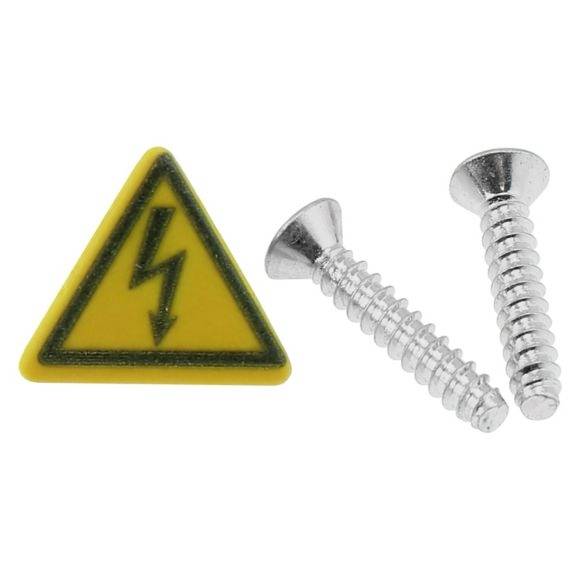

A yellow warning symbol with a lightning bolt for electrical voltage, next to two silver screws. Caution indication for electrical components.

1/12

Product type

Cam switch

Operation type

EPO rotary switch

Switching angle

1 x 90 °

Mounting type

Recess-mount

Switching voltage

690 V

Datasheet (PDF)

Deutsch (Deutschland)

Eaton

Dispatches on Thu, 1 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 96.63 / piece)

€ 96.63

plus VAT.

14 days return policy included

Report legal concerns

Highlights & Details

Main switch, P1, 40 A, built-in, 3-pole, Emergency-OFF function, with red rotary handle and yellow locking collar, lockable in 0 position

P1-40/EA/SVB
This text is machine translated.

Technical specifications

Product type: Cam switch

Switch/button features: Lockable
+ kill switch

Casing/button colour: Yellow
Red

Functions: latch

Operation type: EPO rotary switch

Switching angle: 1 x 90 °

Type: Lockable in 0-position

Mounting type: Recess-mount

Switch position: 1 x On/Off

Print motif: OFF/ON

Number of pins: 3

Connection: Screws

Switching voltage: 690 V

Switching current (max.): 40 A

: 7.5 kW

Min. temperature: -25 °C

Max. temperature: +50 °C

: IP65

Content: 1 pc(s)

Type: P1-40/EA/SVB

UKCA: yes

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 2909353 Eaton P1-40/EA/SVB Cam switch Lockable, + kill switch 40 A 690 V 1 x 90 ° Yellow, Red 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2909353 Eaton P1-40/EA/SVB Cam switch Lockable, + kill switch 40 A 690 V 1 x 90 ° Yellow, Red 1 pc(s)
