Ebara 1540000116A SB3-30 Well pump 2700 l/h 45 m
EAN:
Part number:
Item no:
Highlights & Details

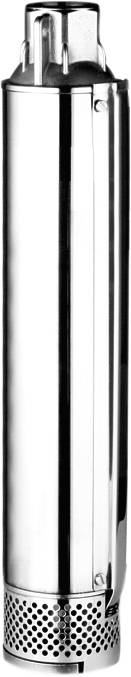

Ebara SB3-30 submersible pump
- Maximum delivery height 45 m.
- Output: 750 W
- Three-phase version
- This text is machine translated.
Technical specifications
- Product type
Well pump
- Max. delivery head
45 m
- Max. feed rate
2700 l/h
- Max. discharge pressure
4.5 bar
- Operating voltage
400 V
IP58
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2207512 Ebara 1540000116A SB3-30 Well pump 2700 l/h 45 m
Description
The 3” underwater pumps made of AISI 304/PPO glass-fiber reinforced are suitable for conveying clear liquids that do not attack the pump materials. Applications include water supply from deep wells, booster systems, irrigation systems, plant/apparatus construction and industrial applications.
This text is machine translated.
This text is machine translated.
Features
- Max. Immersion depth 60 m.
- Max. Temperature of the medium: 30°C.
- Max. Solids content 50 g/m3
- Number of poles: 2
- Insulation class: F
- Protection class IP 58
- Voltage three-phase current 3~400V ±6-10%
- Materials
- Outer CASING AISI 304 (EN 1.4301)
- PPO impeller (GFK)
- SHAFT AISI 430F (EN 1.4105)
- Pressure CASING AISI 304 (EN 1.4301)
- Motor CARRIER AISI 304 (EN 1.4301)
Scope of delivery
- Submersible pump
- Including motor
- 1.75 m power cable
- unmounted
- User manual.
