Ebara 1564070104 MULTIGO 40/15 Submersible pump 4800 l/h 84 m
EAN:
Part number:
Item no:
Highlights & Details

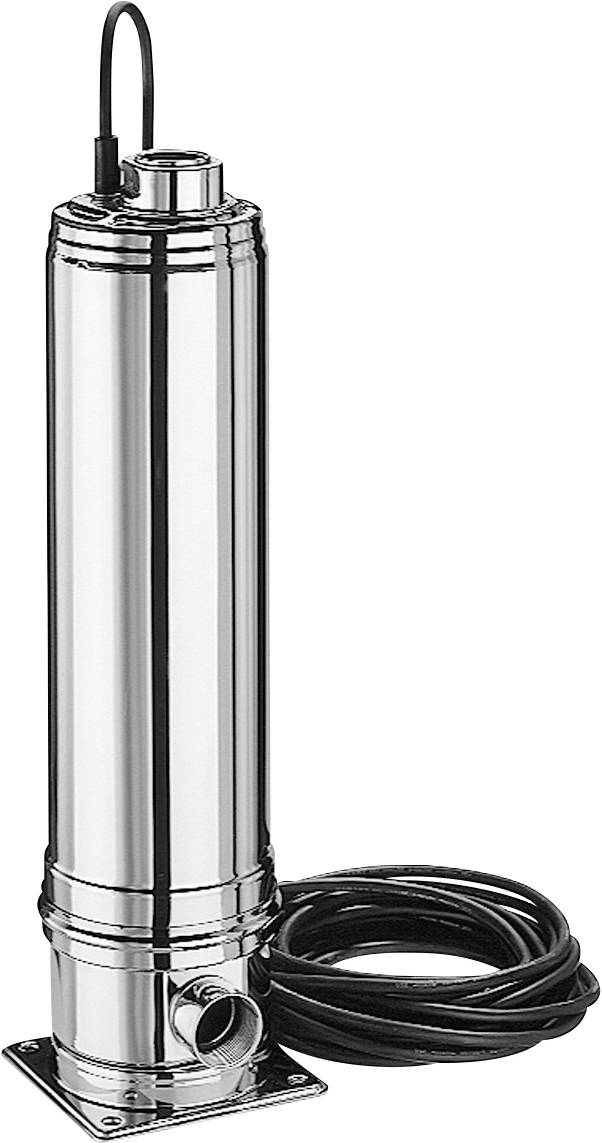

Ebara MULTIGO 40/15 submersible pump
- Max. delivery head=84 m
- Max. feed rate=4800 l/h
- Operating voltage=400 V
Technical specifications
- Product type
Submersible pump
- Max. delivery head
84 m
- Max. feed rate
4800 l/h
- Max. discharge pressure
8.4 bar
- Operating voltage
400 V
- Immersion depth
17 m
IP68
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2207171 Ebara 1564070104 MULTIGO 40/15 Submersible pump 4800 l/h 84 m
Description
5” underwater/cistern pumps made of AISI 304/PPE+PS glass fiber reinforced
The 5” underwater/cistern pumps made of AISI 304/PPE+PS glass fiber reinforced are suitable for conveying clear liquids that do not attack the pump materials. Applications include water supply from vessels, cisterns and wells, rain water use, irrigation, pressure increase, Washing systems, filter systems, plant/apparatus construction and industrial applications. MULTIGO pumps can be either immersed or operated in a dry position (inline version available).
This text is machine translated.
The 5” underwater/cistern pumps made of AISI 304/PPE+PS glass fiber reinforced are suitable for conveying clear liquids that do not attack the pump materials. Applications include water supply from vessels, cisterns and wells, rain water use, irrigation, pressure increase, Washing systems, filter systems, plant/apparatus construction and industrial applications. MULTIGO pumps can be either immersed or operated in a dry position (inline version available).
This text is machine translated.
Features
- Max. Immersion depth 17 m.
- Operating pressure (max.) 10 bar
- Max. Medium temperature 40°C.
- Max. Suction height 6m
- MEI > 0.4
- Number of poles: 2
- Insulation class F
- Pump housing AISI 304 (EN 1.4301)
- PPE+PS IMPELLER (GFK)
- Shaft AISI 431 (EN 1.4057)
- Ceramic/coal/NBR mechanical seal
- Seal carrier AISI 304
- Three-phase current 3~400V ±10%
- The three-phase version has no built-in motor protection, so the user must provide overload protection.
- This text is machine translated.
Scope of delivery
- Ebara MULTIGO 40/15 submersible pump
