Buy Ebara 1582064604 IDROGO 40/12 (TÜV/GS) Submersible pump 4800 l/h 72 m

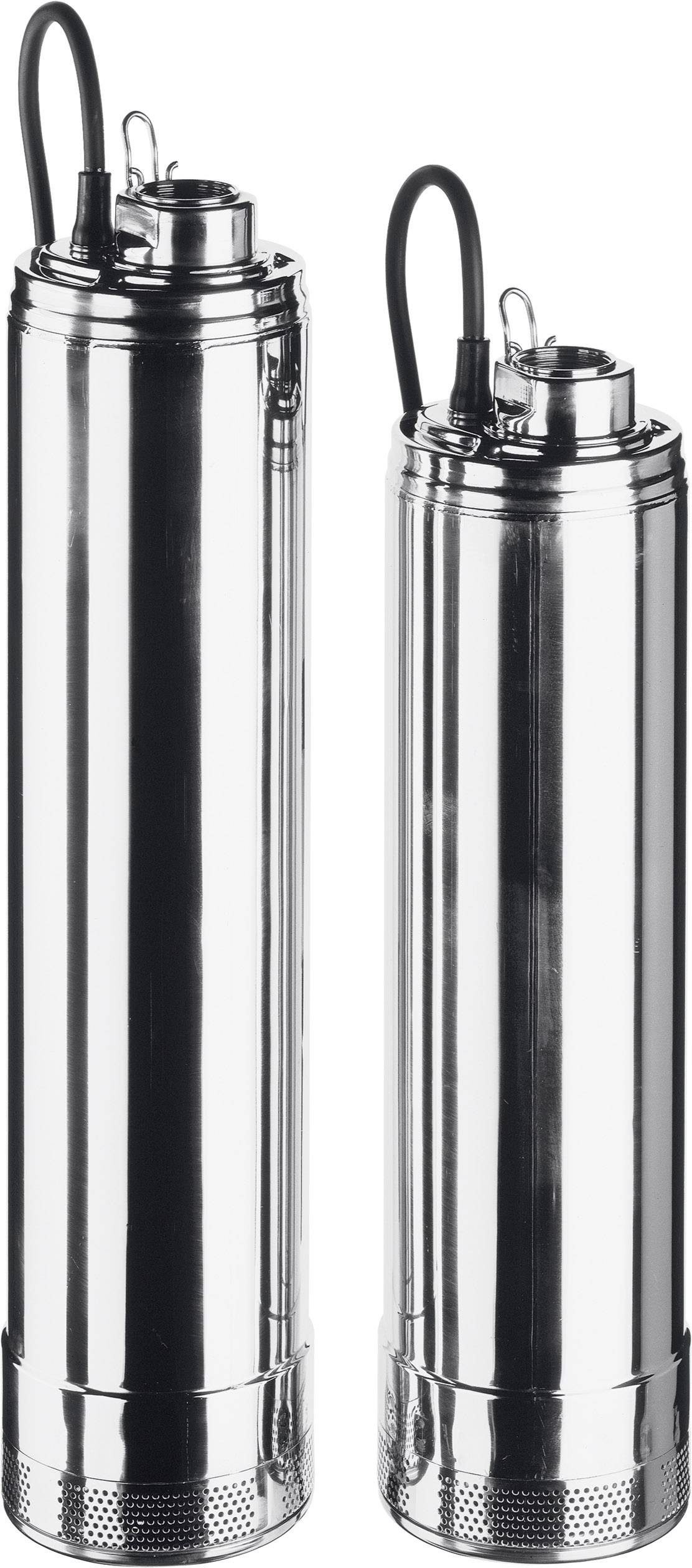

Two cylindrical metal submersible pumps, one larger and one smaller, stand upright next to each other. They have power cables at the top.

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

EBARA IDROGO 40/12 (TUV/GS) CISTERN PUMP

Max. delivery head=72 m
Max. feed rate=4800 l/h
Operating voltage=230 V, 400 V

Technical specifications

Product type: Submersible pump

Max. delivery head: 72 m

Max. feed rate: 4800 l/h

Max. discharge pressure: 7.2 bar

Operating voltage: 230 V
400 V

Immersion depth: 17 m

: IP68

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2207239 Ebara 1582064604 IDROGO 40/12 (TÜV/GS) Submersible pump 4800 l/h 72 m

Description

5” underwater/cistern pumps made of AISI 304/PPE+PS glass fiber reinforced
The 5” underwater/cistern pumps made of AISI 304/PPE+PS glass fiber reinforced are suitable for conveying clear liquids that do not attack the pump materials. Applications include water supply from vessels, cisterns and wells, rain water use, irrigation, pressure increase, Washing systems, filter systems, plant/apparatus construction and industrial applications.

This text is machine translated.

Features

Max. Immersion depth 17 m.
Operating pressure (max.) 10 bar
Max. Medium temperature 40°C.
Number of poles: 2
Insulation class F
Outer CASING AISI 304 (EN 1.4301)
PPE+PS IMPELLER (GFK)
Shaft AISI 431 (EN 1.4057)
Three-phase current 3~230V ±10%
Three-phase current 3~400V ±10%
Mechanical seal (motor side) made of coal/ceramic/NBR; (pump side) made of SiC/coal/NB
The three-phase version has no built-in motor protection, so the user must provide overload protection.
This text is machine translated.
