Buy Ebara 1582064721 IDROGO M 40/12 (TÜV/GS) Submersible pump 4800 l/h 72 m

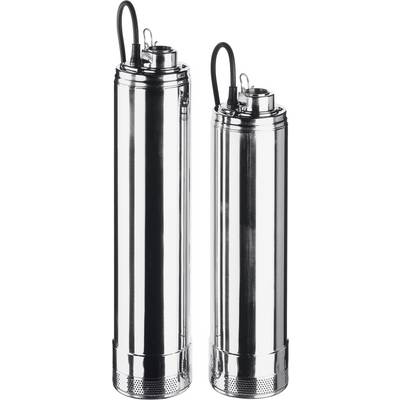

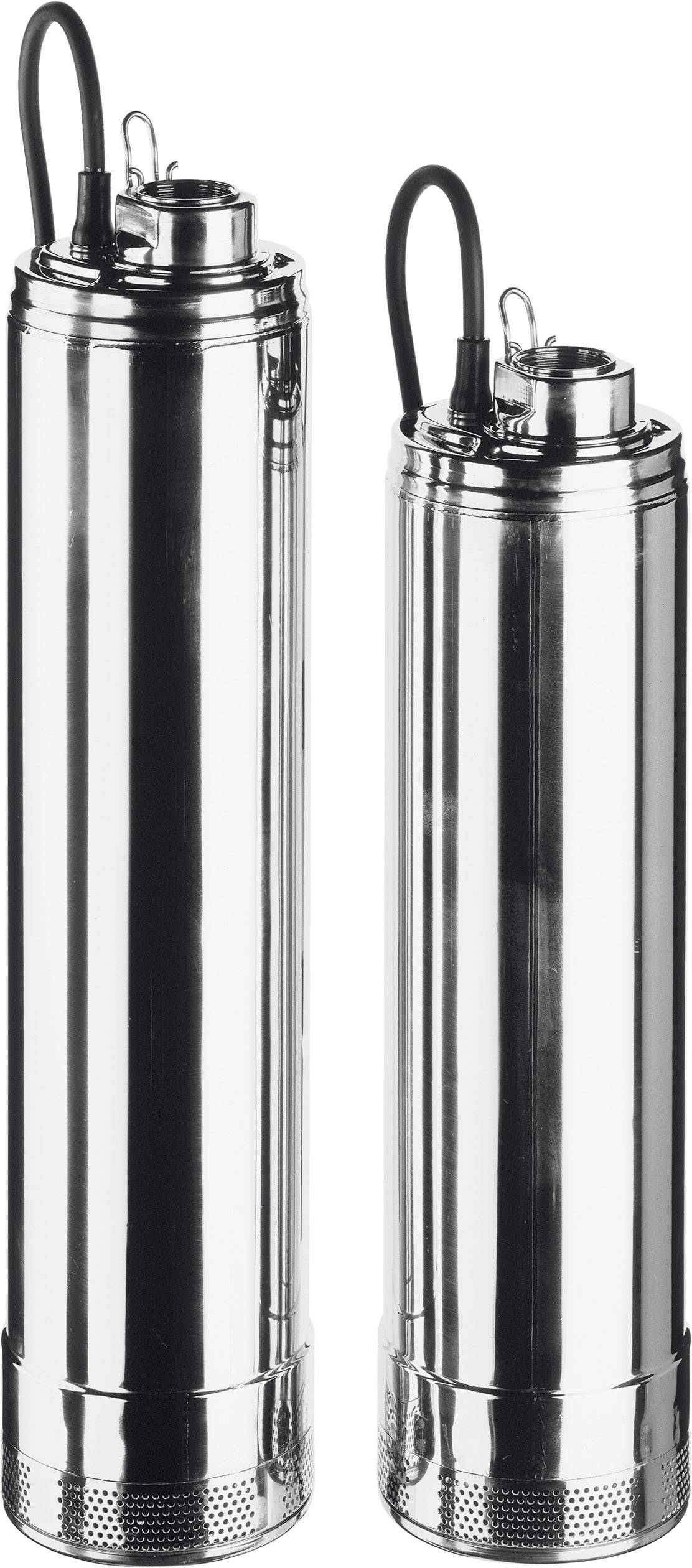

Two silver cylindrical water pumps side by side, each with a cable connection on top. The one on the left is slightly larger than the one on the right.

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

EBARA IDROGO M 40/12 (TUV/GS) CISTERN PUMP

Max. delivery head=72 m
Max. feed rate=4800 l/h
Operating voltage=230 V

Technical specifications

Product type: Submersible pump

Max. delivery head: 72 m

Max. feed rate: 4800 l/h

Max. discharge pressure: 7.2 bar

Operating voltage: 230 V

Immersion depth: 17 m

: IP68

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2207210 Ebara 1582064721 IDROGO M 40/12 (TÜV/GS) Submersible pump 4800 l/h 72 m

Description

5” underwater/cistern pumps made of AISI 304/PPE+PS glass fiber reinforced
The 5” underwater/cistern pumps made of AISI 304/PPE+PS glass fiber reinforced are suitable for conveying clear liquids that do not attack the pump materials. Applications include water supply from vessels, cisterns and wells, rain water use, irrigation, pressure increase, Washing systems, filter systems, plant/apparatus construction and industrial applications.

This text is machine translated.

Features

Max. Immersion depth 17 m.
Operating pressure (max.) 10 bar
Max. Medium temperature 40°C.
Number of poles: 2
Insulation class F
Outer CASING AISI 304 (EN 1.4301)
PPE+PS IMPELLER (GFK)
Shaft AISI 431 (EN 1.4057)
Mechanical seal (motor side) made of coal/ceramic/NBR; (pump side) made of SiC/coal/NB
Alternating current 1~230V ±10%
The alternating current version has a power capacitor and an integrated bimetal circuit breaker with automatic reset.
This text is machine translated.
