Buy Ebara 1589070021A DW M 150 Effluent sump pump 42000 l/h 15 m

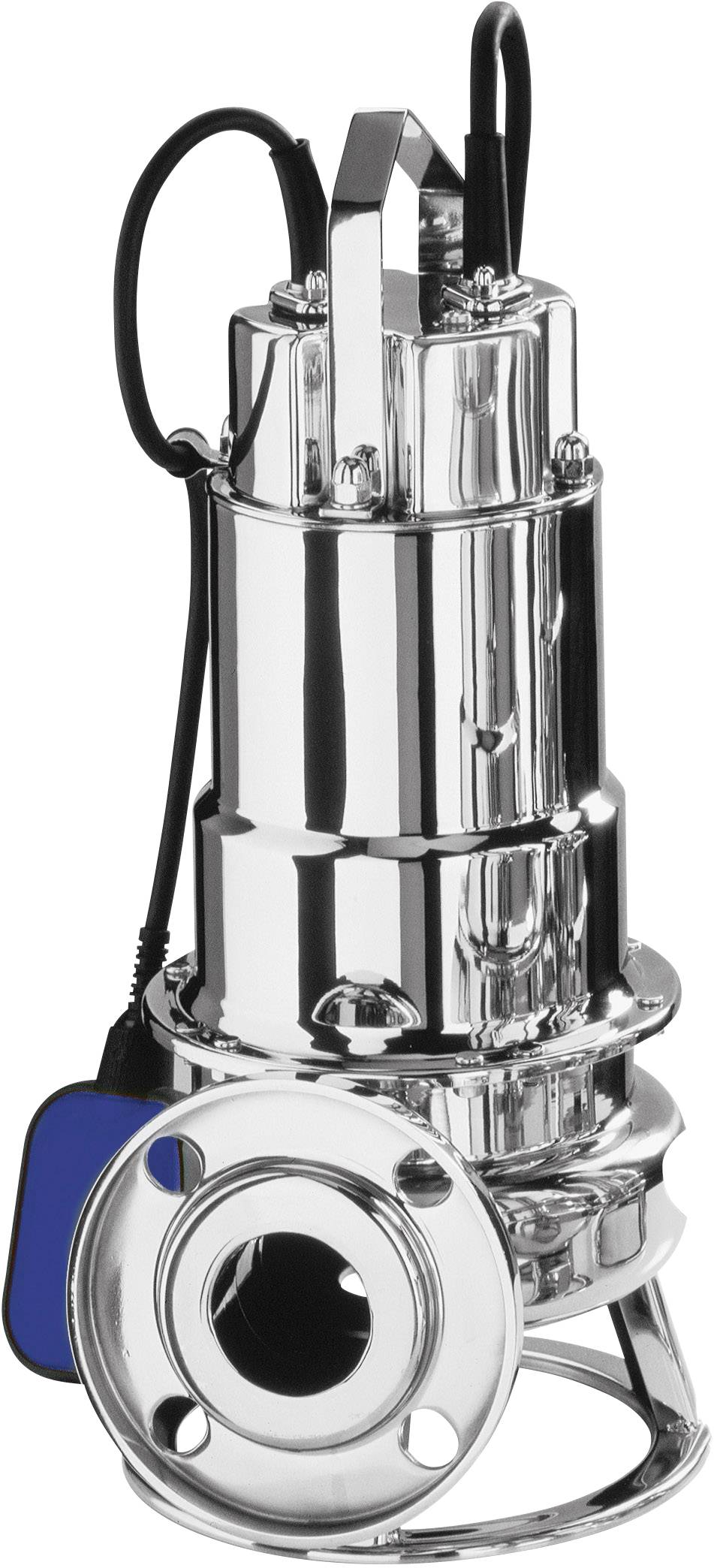

A silver submersible pump with multiple cylindrical sections, cables, and a blue float switch on the side.

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

EBARA DW M 150 SUBMERSIBLE PUMP

Max. delivery head=15 m
Max. feed rate=42000 l/h
Operating voltage=230 V

Technical specifications

Product type: Effluent sump pump

Max. delivery head: 15 m

Max. feed rate: 42000 l/h

Max. discharge pressure: 1.5 bar

Operating voltage: 230 V

Max. size of solids: 50 mm

Immersion depth: 7 m

: IPX8

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2207245 Ebara 1589070021A DW M 150 Effluent sump pump 42000 l/h 15 m

Description

Submersible pumps for dirt and waste water made of stainless steel AISI 304/cast iron
The submersible pumps made of stainless steel AISI 304/cast iron are suitable for the conveyance of dirt and waste water. The areas of application include the disposal of waste water and waste water also with fibrous components and solids, drying of cellars, garages and commercial objects, emptying of pump shafts and containers for dirty water, leachate and rainwater, disposal of gray water also from commercial washing machines and dishwashers, plant/apparatus construction and industrial applications.

This text is machine translated.

Features

Pump housing AISI 304 (EN 1.4301)
Impeller AISI 304 (EN 1.4301)
Shaft AISI 303 (EN 1.4305) (media touching part)
Mechanical seal: Double mechanical seal in oil template
Coal/ceramic/NBR (motor side)
Silicon Carbide/Silicon Carbide/NBR (Pump Side)
Channel unicycle
AC version
Permanent split capacitor installed in overload motor protection with automatic reset.
This text is machine translated.
