Ebara 1653070100E GP-JEM 150 - 50 Domestic water pump 230 V 4.5 m³/h
EAN:
Part number:
Item no:
Highlights & Details
EBARA GP-JEM 150 - 50 SUBMERSIBLE PUMP
- Max. delivery head=59 m
- Max. feed rate=4.5 m³/h
- Operating voltage=230 V
Technical specifications
- Product type
Domestic water pump
- Operating voltage
230 V
- Power consumption (P1)
1700 W
- Power (P2)
1100 W
- Max. feed rate
4.5 m³/h
- Max. delivery head
59 m
- Max. discharge pressure
5.9 bar
- Boiler volume
50 l
- Hose connector
32 mm (1 1/4") Ø
- Pressure connection
25 mm (1") IT
IP44
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2207166 Ebara 1653070100E GP-JEM 150 - 50 Domestic water pump 230 V 4.5 m³/h
Description

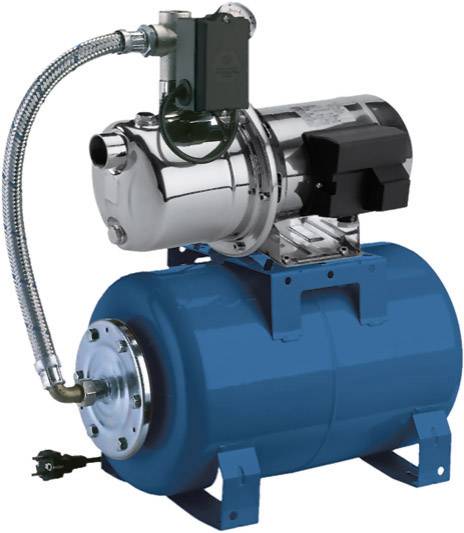

Domestic water supply with electromechanical pressure switch
House waterworks
Fully automatic, ready-to-plug mounted domestic water supply
With diaphragm pressure vessel, pressure switch, pressure gauge and flexible hose
Optionally with diaphragm pressure vessel, n made of painted steel or stainless steel
factory preset and checked
Pump
Housing made of stainless steel (GP-JE(S)(X)) or cast iron (GP-AGA)
Impeller made of stainless steel (GP-JE(X)) or plastic (GP-JES(X)/ GP-AGA)
Shaft and seal carrier made of stainless steel
maintenance and leak-free mechanical seal
Very noisy operation
Especially suitable for continuous operation
With TUV/GS mark (GP-JEXM)
This text is machine translated.
House waterworks
Fully automatic, ready-to-plug mounted domestic water supply
With diaphragm pressure vessel, pressure switch, pressure gauge and flexible hose
Optionally with diaphragm pressure vessel, n made of painted steel or stainless steel
factory preset and checked
Pump
Housing made of stainless steel (GP-JE(S)(X)) or cast iron (GP-AGA)
Impeller made of stainless steel (GP-JE(X)) or plastic (GP-JES(X)/ GP-AGA)
Shaft and seal carrier made of stainless steel
maintenance and leak-free mechanical seal
Very noisy operation
Especially suitable for continuous operation
With TUV/GS mark (GP-JEXM)
This text is machine translated.
Features
- Conveying medium: Clear liquids that do not attack the pump materials chemically and mechanically
- Temperature max. 45°C.
- Suction height: Max. 8 m
- Operating pressure: Max. 6 bar
- Impeller: Closed
- Shaft seal: Mechanical seal
- Hydraulics: Self-priming by ejector
- Bearing: Sealed ball bearings
- Pump housing: Stainless steel 1.4301
- Impeller: Stainless steel 1.4301
- Ejector/nozzle/diffuser: Plastic, GFK
- Pump shaft: Stainless steel 1.4305
- Mechanical seal: Coal/ceramic
- O-ring: NBR
- Motor housing: Stainless steel 1.4301
- Motor carrier: Stainless steel 1.4301
- Diaphragm pressure vessel: Painted steel
- Membrane: Food-resistant, non-toxic
- This text is machine translated.
Scope of delivery
- EBARA GP-JEM 150 - 50 SUBMERSIBLE PUMP
