Buy Ebara 1711004600 BEST ONE M (TÜV) Effluent sump pump 10.2 m³/h 9 m

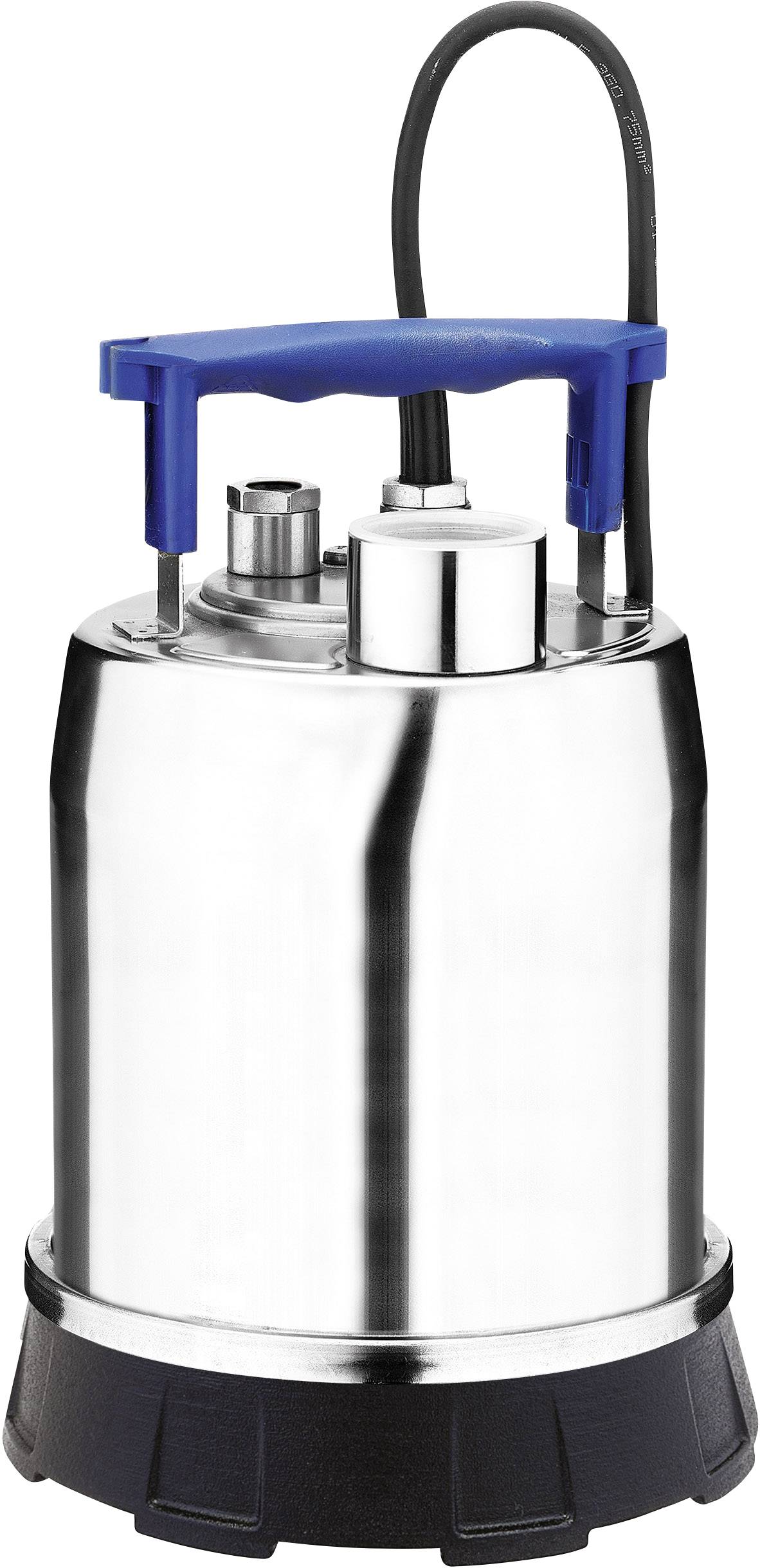

A stainless steel submersible pump with a blue carry handle and black cable, suitable for use in construction sites and water extraction.

Image similar

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

EBARA BEST ONE M (TUV) SUBMERSIBLE PUMP

Max. delivery head=9 m
Max. feed rate=10.2 m³/h
Operating voltage=230 V

Technical specifications

Product type: Effluent sump pump

Max. delivery head: 9 m

Max. feed rate: 10.2 m³/h

Max. discharge pressure: 0.9 bar

Operating voltage: 230 V

Max. size of solids: 10 mm

: IP68

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2207231 Ebara 1711004600 BEST ONE M (TÜV) Effluent sump pump 10.2 m³/h 9 m

Description

Submersible pumps for waste water made of stainless steel AISI 304
The submersible pumps made of stainless steel AISI 304 are suitable for conveying dirty water or clear water (BEST ONE MS). Areas of application include waste water disposal, drying of cellars and garages, emptying of pump shafts and containers for leachate and rainwater, disposal of gray water from washing machines, dishwashers and showers, plant/apparatus construction and industrial applications.

This text is machine translated.

Features

Max. Immersion depth 5 m with 10 m cable length
2 m with 5 m cable length
Max. Medium temperature 50°C.
Max. Solid size
10 mm (BEST ONE)
20 MM (BEST ONE VOX)
Number of poles: 2
Insulation class F
protection class IP68
Pump housing AISI 304 (EN 1.4301)
Impeller AISI 304 (EN 1.4301)
Shaft AISI 303 (EN 1.4305)
Shaft PROTECTION SLEEVE AISI 303 (EN 1.4305)
Ceramic coating
Ceramic/Coal/NBR mechanical seal (standard)
Silicon Carbide/Silicon Carbide/FPM (Q1Q1V)
Shaft sealing ring NBR
Alternating current voltage 1~230V ± 10%
The alternating current version has a power capacitor and an integrated bimetal circuit breaker with automatic reset.
This text is machine translated.
