Ebara 1731154721A BEST 4 M (TÜV) Submersible pump 21600 l/h 19 m
EAN:
Part number:
Item no:
Highlights & Details

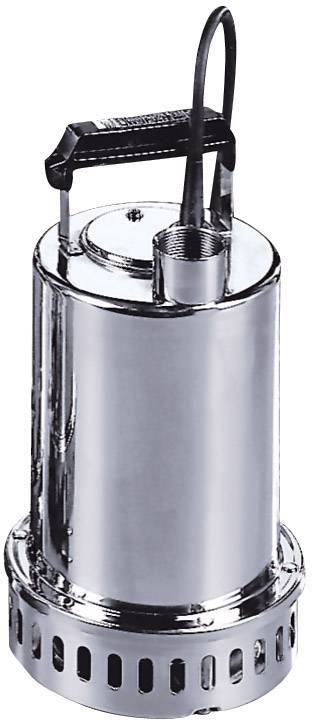

EBARA BEST 4 M (TUV) SUBMERSIBLE PUMP
- Max. delivery head=19 m
- Max. feed rate=21600 l/h
- Operating voltage=230 V
Technical specifications
- Product type
Submersible pump
- Max. delivery head
19 m
- Max. feed rate
21600 l/h
- Max. discharge pressure
1.9 bar
- Operating voltage
230 V
- Max. size of solids
10 mm
- Immersion depth
7 m
IP68
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2207177 Ebara 1731154721A BEST 4 M (TÜV) Submersible pump 21600 l/h 19 m
Description
Submersible pumps for waste water made of stainless steel AISI 304
The submersible pumps made of stainless steel AISI 304 are suitable for conveying dirty water. Areas of application include waste water disposal, drying of cellars and garages, emptying of pump shafts and containers for leachate and rainwater, disposal of gray water from washing machines, dishwashers and showers, plant/apparatus construction and industrial applications.
This text is machine translated.
The submersible pumps made of stainless steel AISI 304 are suitable for conveying dirty water. Areas of application include waste water disposal, drying of cellars and garages, emptying of pump shafts and containers for leachate and rainwater, disposal of gray water from washing machines, dishwashers and showers, plant/apparatus construction and industrial applications.
This text is machine translated.
Features
- Max. Immersion depth 7 m.
- Max. Medium temperature 35°C.
- Max. Solid size 10 mm
- Number of poles: 2
- Insulation class F
- Pump housing AISI 304 (EN 1.4301)
- Impeller AISI 304 (EN 1.4301)
- Shaft AISI 303 (EN 1.4305) (media touching part)
- Mechanical seal: Coal/ceramic/NBR (motor side)
- Silicon Carbide/Silicon Carbide/NBR (Pump Side)
- Alternating current 1~230V ± 10%
- With 10 m power cable H07RN-8F
- This text is machine translated.
Scope of delivery
- EBARA BEST 4 M (TUV) SUBMERSIBLE PUMP
