Ebara 1751004600 OPTIMA M (TÜV) Effluent sump pump 9 m³/h 7 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

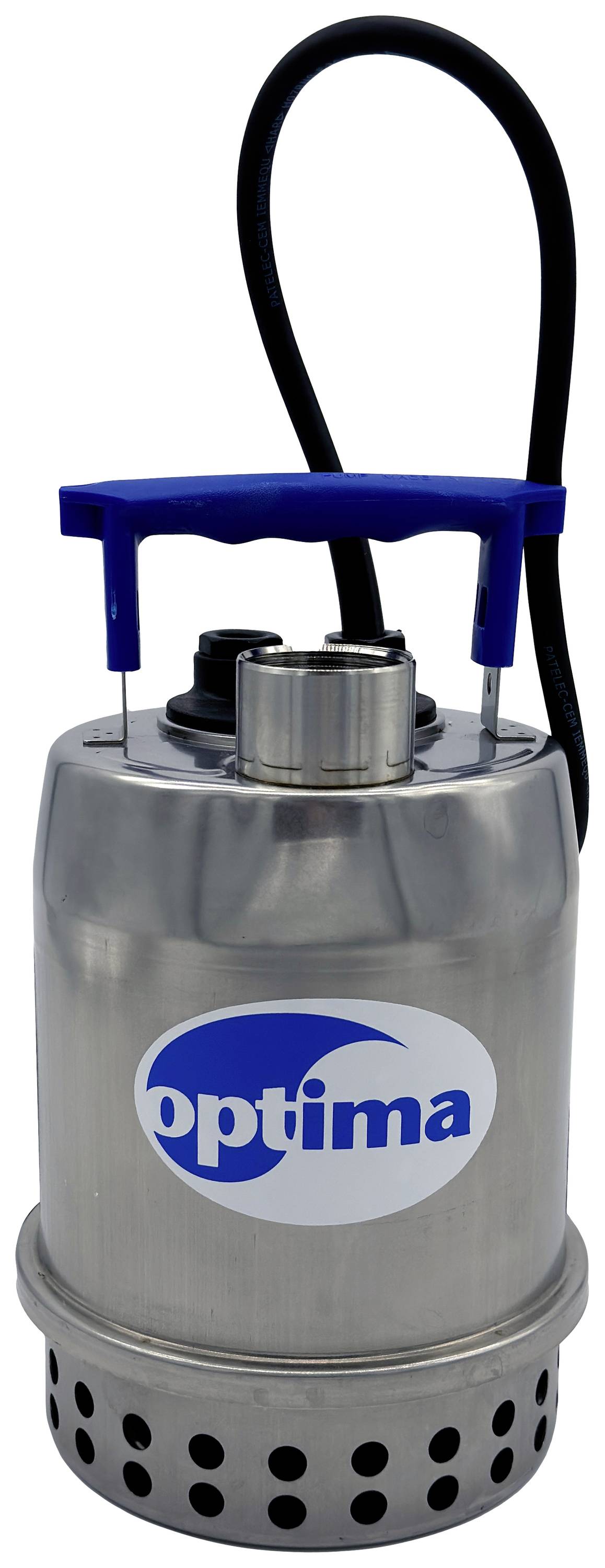

EBARA OPTIMA M (TUV) SUBMERSIBLE PUMP
- Max. delivery head=7 m
- Max. feed rate=9 m³/h
- Operating voltage=230 V
Technical specifications
- Product type
Effluent sump pump
- Max. delivery head
7 m
- Max. feed rate
9 m³/h
- Max. discharge pressure
0.7 bar
- Operating voltage
230 V
- Overload protection
Yes
IP68
Documents & Downloads
Datasheet
Datasheet 2207230 Ebara 1751004600 OPTIMA M (TÜV) Effluent sump pump 9 m³/h 7 m
User & Safety Instructions
User & Safety Instructions 2207230 Ebara 1751004600 OPTIMA M (TÜV) Effluent sump pump 9 m³/h 7 m
Description
Submersible pumps for waste water made of stainless steel AISI 304/ PPE+PS
The submersible pumps made of stainless steel AISI 304/ PPE+PS are suitable for conveying dirty water or clear water (OPTIMA MS). Areas of application include the disposal of waste water, the drying of cellars and garages, the emptying of pump shafts and containers for leachate and rain water, the disposal of gray water from washing machines, dishwashers and showers.
This text is machine translated.
The submersible pumps made of stainless steel AISI 304/ PPE+PS are suitable for conveying dirty water or clear water (OPTIMA MS). Areas of application include the disposal of waste water, the drying of cellars and garages, the emptying of pump shafts and containers for leachate and rain water, the disposal of gray water from washing machines, dishwashers and showers.
This text is machine translated.
Features
- Max. Immersion depth 5 m at 10 m cable length, 2 m at 5 m cable length
- Max. Medium temperature 50°C.
- Max. Solid size 10 mm
- Number of poles: 2
- Insulation class F
- protection class IP68
- Alternating current voltage 1~230V ±10%
- Operating capacitor
- Integrated bimetal protection switch with automatic reset
- Pump housing AISI 304 (EN 1.4301)
- PPE + PS IMPELLER (GFK)
- Shaft AISI 303 (EN 1.4305)
- Shaft protection sleeve AISI 303 (EN 1.4305) with ceramic coating
- Mechanical seal: Ceramic/coal/NBR (standard) silicon carbide/silicon carbide/FPM (optional)
- Shaft sealing ring NBR
Scope of delivery
- EBARA OPTIMA M (TUV) SUBMERSIBLE PUMP
