Buy Ebara 1751104600 OPTIMA MA (TÜV) Effluent sump pump 9 m³/h 7 m

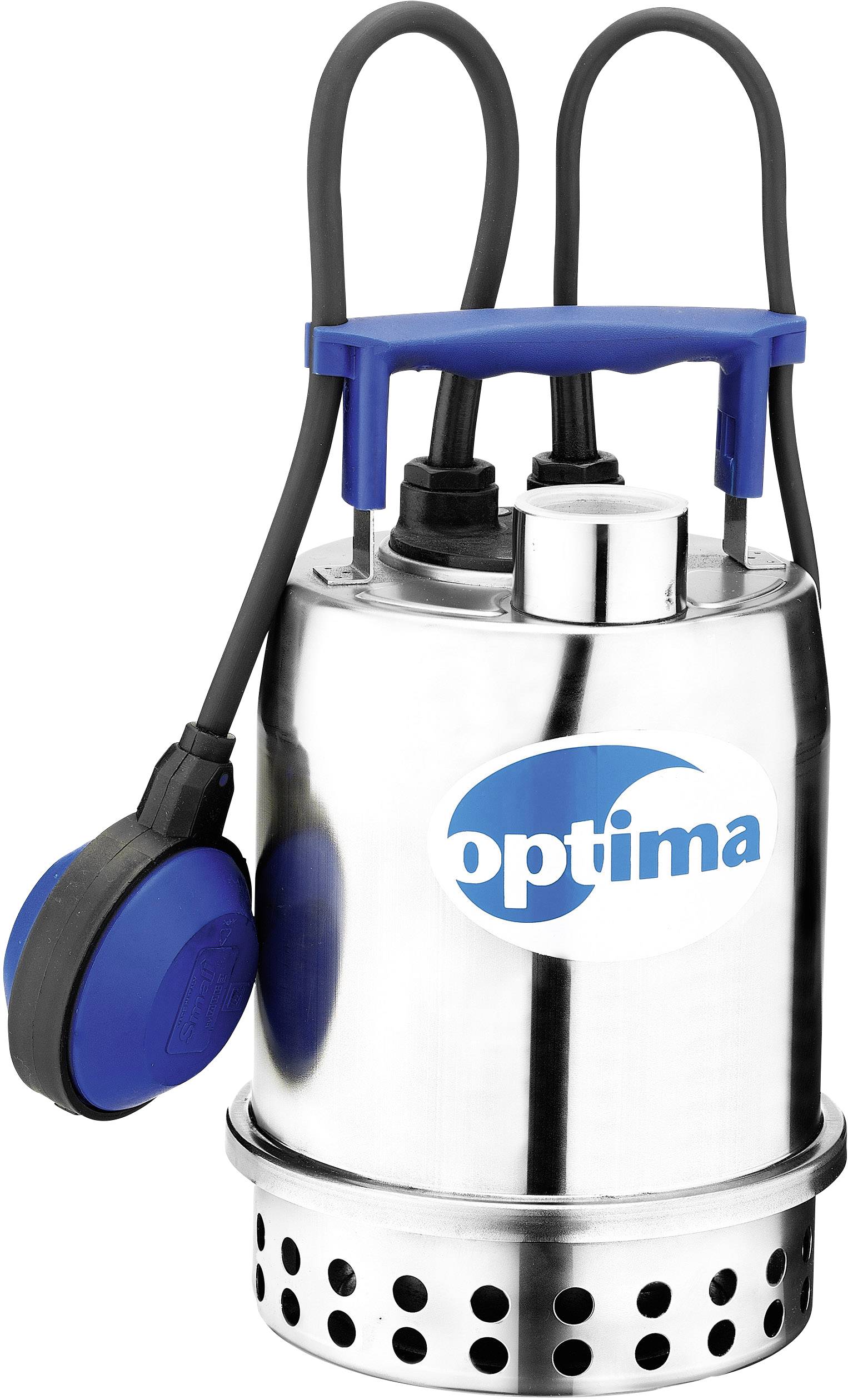

Silver water pump with a blue handle, black cable, and float. The pump is labelled 'optima'.

Unavailable

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

EBARA OPTIMA MA (TUV) SUBMERSIBLE PUMP

Max. delivery head=7 m
Max. feed rate=9 m³/h
Operating voltage=230 V
With float switch

Technical specifications

Product type: Effluent sump pump

Max. delivery head: 7 m

Max. feed rate: 9 m³/h

Max. discharge pressure: 0.7 bar

Operating voltage: 230 V

Float switch: Yes

Overload protection: Yes

: IP68

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2207218 Ebara 1751104600 OPTIMA MA (TÜV) Effluent sump pump 9 m³/h 7 m

Description

Submersible pumps for waste water made of stainless steel AISI 304/ PPE+PS
The submersible pumps made of stainless steel AISI 304/ PPE+PS are suitable for conveying dirty water or clear water (OPTIMA MS). Areas of application include the disposal of waste water, the drying of cellars and garages, the emptying of pump shafts and containers for leachate and rain water, the disposal of gray water from washing machines, dishwashers and showers.

This text is machine translated.

Features

Max. Immersion depth 5 m at 10 m cable length, 2 m at 5 m cable length
Max. Medium temperature 50°C.
Max. Solid size 10 mm
Number of poles: 2
Insulation class F
protection class IP68
Alternating current voltage 1~230V ±10%
Operating capacitor
Integrated bimetal protection switch with automatic reset
Pump housing AISI 304 (EN 1.4301)
PPE + PS IMPELLER (GFK)
Shaft AISI 303 (EN 1.4305)
Shaft protection sleeve AISI 303 (EN 1.4305) with ceramic coating
Mechanical seal: Ceramic/coal/NBR (standard) silicon carbide/silicon carbide/FPM (optional)
Shaft sealing ring NBR
