Buy Ebara 1771031404A RIGHT 75 Effluent sump pump 14 m³/h 8.75 m

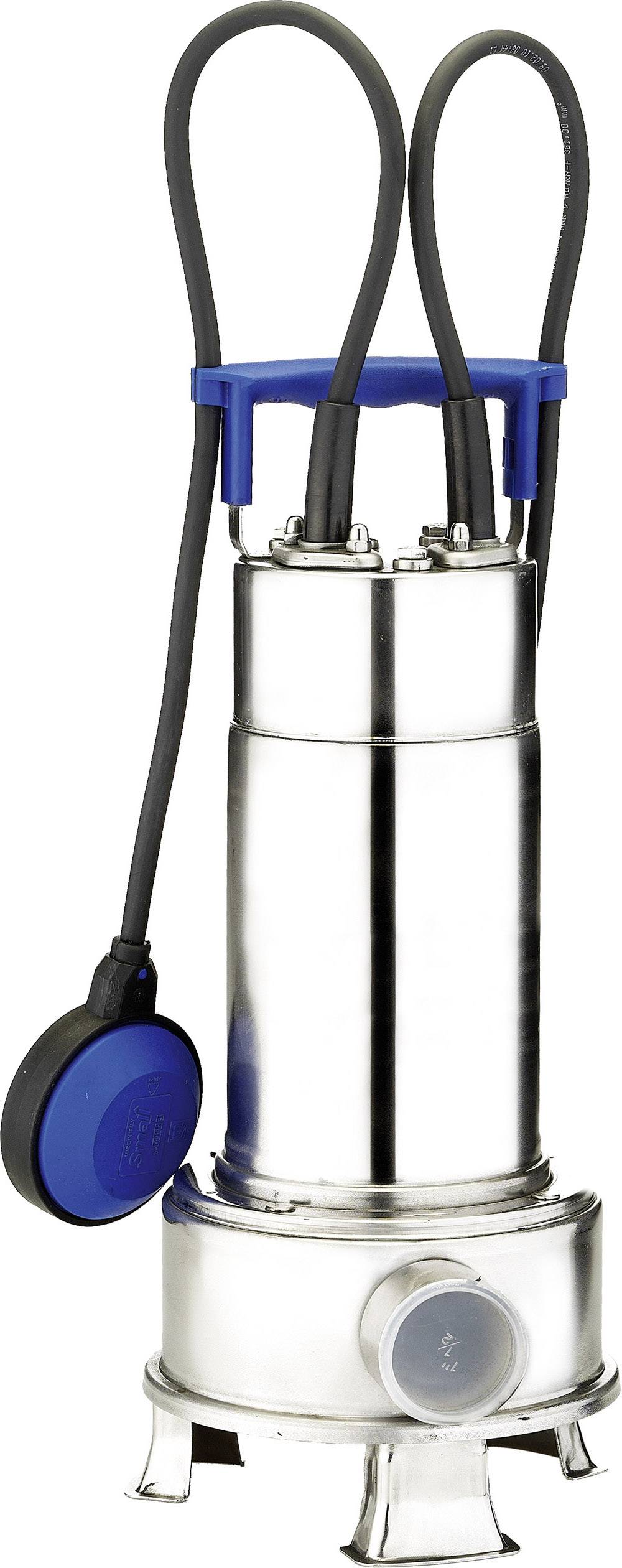

A silver stainless steel water pump with a blue float switch. It stands on three legs and has three black cables on top.

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ebara RIGHT 75 submersible pump

Max. delivery head=8.75 m
Max. feed rate=14 m³/h
Operating voltage=400 V

Technical specifications

Product type: Effluent sump pump

Max. delivery head: 8.75 m

Max. feed rate: 14 m³/h

Max. discharge pressure: 0.875 bar

Operating voltage: 400 V

Max. size of solids: 35 mm

: IPX8

Description

Submersible pumps for dirt and waste water made of stainless steel AISI 304
The submersible pumps made of stainless steel AISI 304 are suitable for the conveyance of dirt and waste water. Among the areas of application are waste water and waste water disposal with fibrous components and solids, drying of cellars, garages and commercial objects, emptying of pump shafts and containers for dirty water, leachate and rainwater, disposal of gray water also from commercial washing machines and dishwashers, plant/apparatus construction and industrial applications.

This text is machine translated.

Features

Max. Immersion depth 7 m with 10 m cable length
Max. Medium temperature 50°C.
Max. Solid size 35 mm (free ball passage)
Number of poles: 2
Insulation class F
Protection type IPX8
Three-phase current 3~400V ±10%
Pump housing AISI 304 (EN 1.4301)
Impeller AISI 304 (EN 1.4301)
Shaft AISI 303 (EN 1.4305)(Media contact part)
Mechanical seal
Coal/ceramic/NBR (motor side)
Silicon Carbide/Silicon Carbide/NBR (Pump Side)
With 10 m power cable H07RN-F, free cable end.
Three-phase version with integrated thermo-sensor cable for connection to an external motor protection
