Ebara 1771051221A RIGHT 100 M Effluent sump pump 18 m³/h 10.5 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

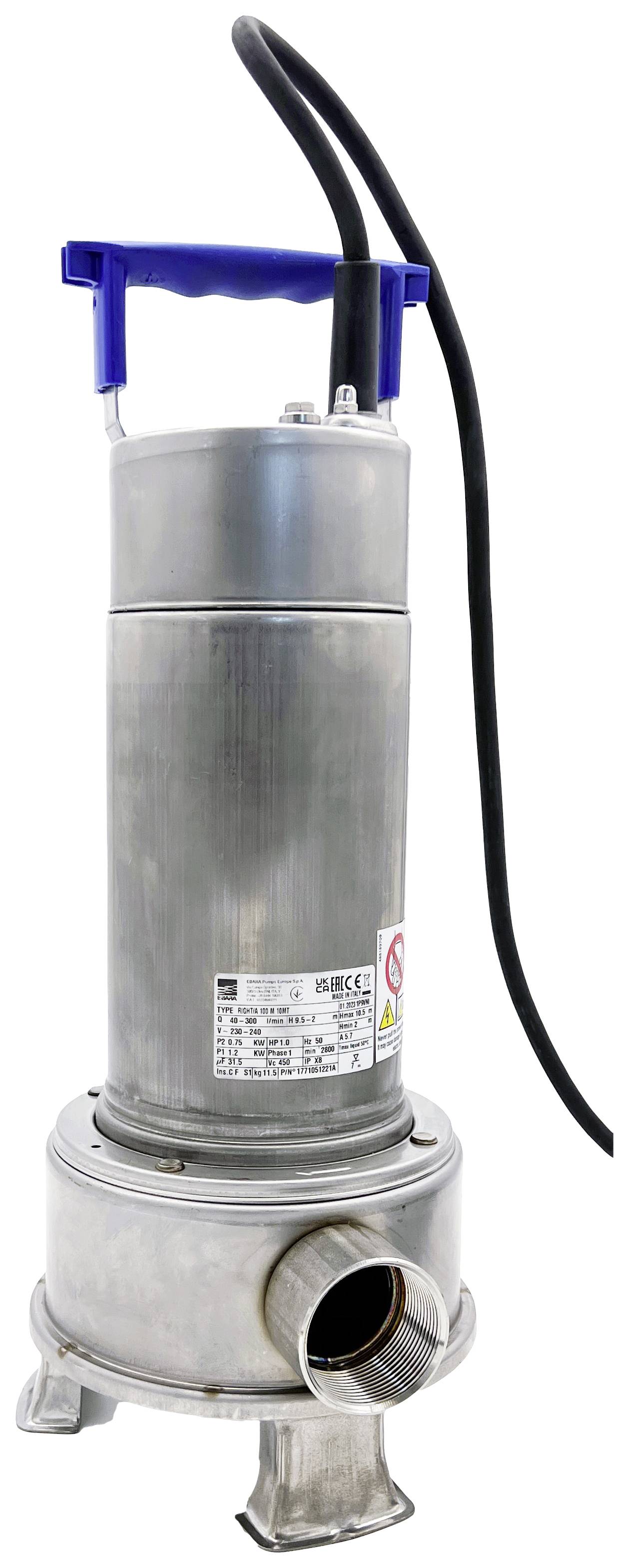

EBARA RIGHT 100 M SUBMERSIBLE PUMP
- Max. delivery head=10.5 m
- Max. feed rate=18 m³/h
- Operating voltage=230 V
Technical specifications
- Product type
Effluent sump pump
- Max. delivery head
10.5 m
- Max. feed rate
18 m³/h
- Max. discharge pressure
1.05 bar
- Operating voltage
230 V
- Max. size of solids
35 mm
- Overload protection
Yes
IPX8
Documents & Downloads
Datasheet
Datasheet 2207184 Ebara 1771051221A RIGHT 100 M Effluent sump pump 18 m³/h 10.5 m
User & Safety Instructions
User & Safety Instructions 2207184 Ebara 1771051221A RIGHT 100 M Effluent sump pump 18 m³/h 10.5 m
Description
Submersible pumps for dirt and waste water made of stainless steel AISI 304
The submersible pumps made of stainless steel AISI 304 are suitable for the conveyance of dirt and waste water. Among the areas of application are waste water and waste water disposal with fibrous components and solids, drying of cellars, garages and commercial objects, emptying of pump shafts and containers for dirty water, leachate and rainwater, disposal of gray water also from commercial washing machines and dishwashers, plant/apparatus construction and industrial applications.
This text is machine translated.
The submersible pumps made of stainless steel AISI 304 are suitable for the conveyance of dirt and waste water. Among the areas of application are waste water and waste water disposal with fibrous components and solids, drying of cellars, garages and commercial objects, emptying of pump shafts and containers for dirty water, leachate and rainwater, disposal of gray water also from commercial washing machines and dishwashers, plant/apparatus construction and industrial applications.
This text is machine translated.
Features
- Max. Immersion depth 7 m with 10 m cable length
- Max. Medium temperature 50°C.
- Max. Solid size 35 mm (free ball passage)
- Number of poles: 2
- Insulation class F
- Protection type IPX8
- Alternating current voltage 1~230V ± 10%
- Pump housing AISI 304 (EN 1.4301)
- Impeller AISI 304 (EN 1.4301)
- Shaft AISI 303 (EN 1.4305)(Media contact part)
- Mechanical seal
- Coal/ceramic/NBR (motor side)
- Silicon Carbide/Silicon Carbide/NBR (Pump Side)
- 10 m power cable H07RN-F and safety plug
- The alternating current version has a power capacitor and an integrated bimetal circuit breaker with automatic reset.
Scope of delivery
- EBARA RIGHT 100 M SUBMERSIBLE PUMP
