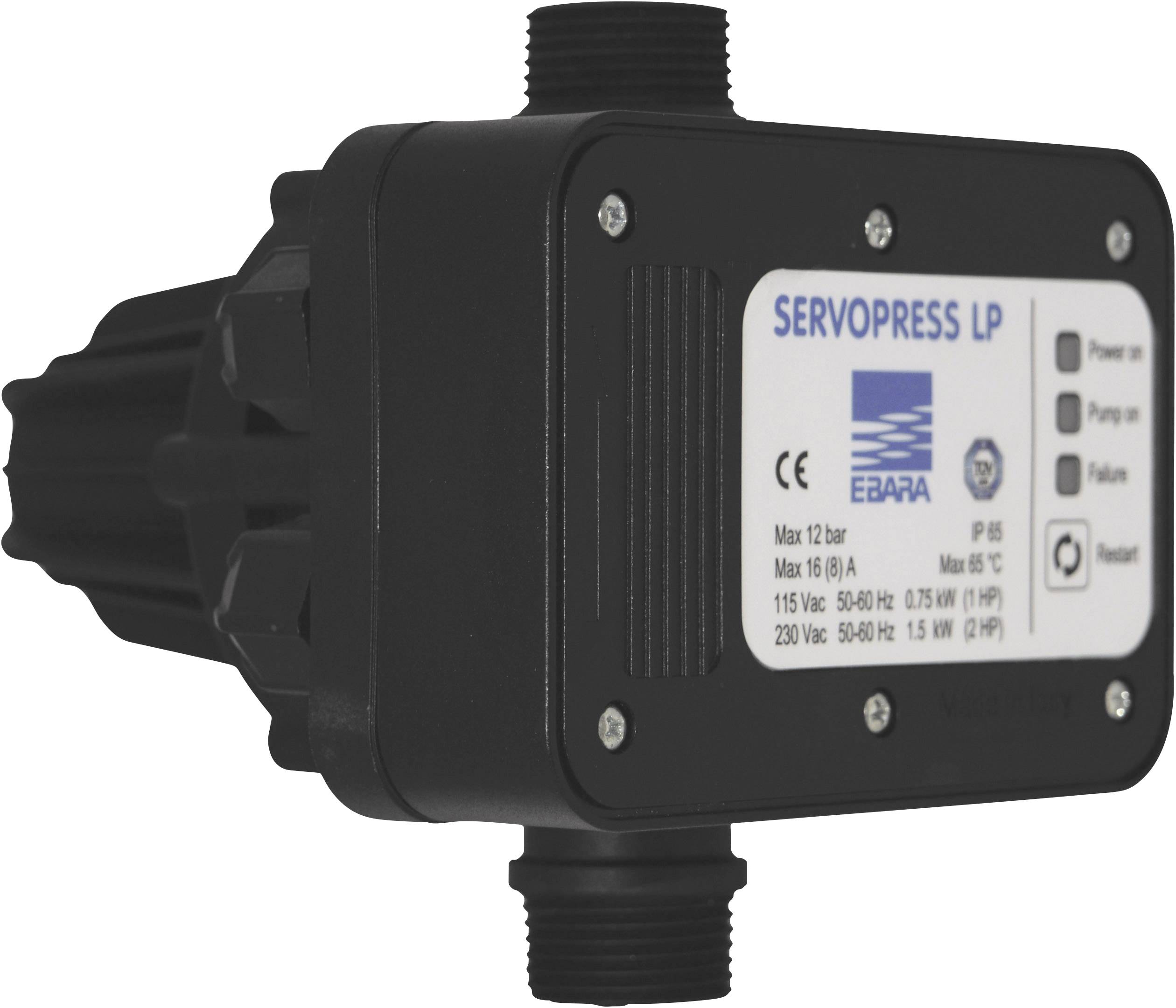

Ebara 6000001897 SERVOPRESS LP Electronic pump control system
EAN:
Part number:
Item no:
Highlights & Details
EBARA SERVO PRESSURE LP PUMP CONTROL
- Adjustable switch-on pressure 1.5 - 2.5 bar
- Maximum flow rate 3,5m³/h
- Power max. 1.5 kW
- This text is machine translated.
Technical specifications
- Product type
Electronic pump control system
- Operating voltage
230 V
- Factory colour
Black
IP65
- Connection
1"
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2207220 Ebara 6000001897 SERVOPRESS LP Electronic pump control system
Description
Features
- All types with connection possibility for pressure gauge KIT
- All types of automatic restart on error (10 restart attempts within 24 hours)
- All types of anti-lock function (no pump start within 24 hrs = pump starts briefly)
- Pressure regulator with dry run protection for automatic operation of water supply systems
- Molded reinforced plastic body (flame retardant)
- Pressure diaphragm made of EPDM
- Flow cone made of brass
- Insulating film-coated printed circuit board
- Relay with special contacts for up to 300,000 switching cycles at 2.2 kW load
- Integrated check valve
- Switch-on pressure 1.5 bar (Servopress LP)
- With 1.5m power cable with Schuko plug and 0.5m power cable with Schuko coupling
- For 1~230V ± 10%, 50/60Hz, protection class IP 65, operating pressure max. 10 bar
- With 3x LED (standby/operation/alarm) and reset button
- Pressure switches are equipped with:
- 1.5m power cable with Schuko plug and
- 0.5m power cable equipped with Schuko-coupling.
Scope of delivery
- Ebara servo press LP pump control
Hints
Conditions of use:
These automatic pressure switches should not be used for small, frequent pick-up units, e.g. drip irrigation, because the switching frequency is too high!
For the same reason, the pressure holding system must also be "tight"!
