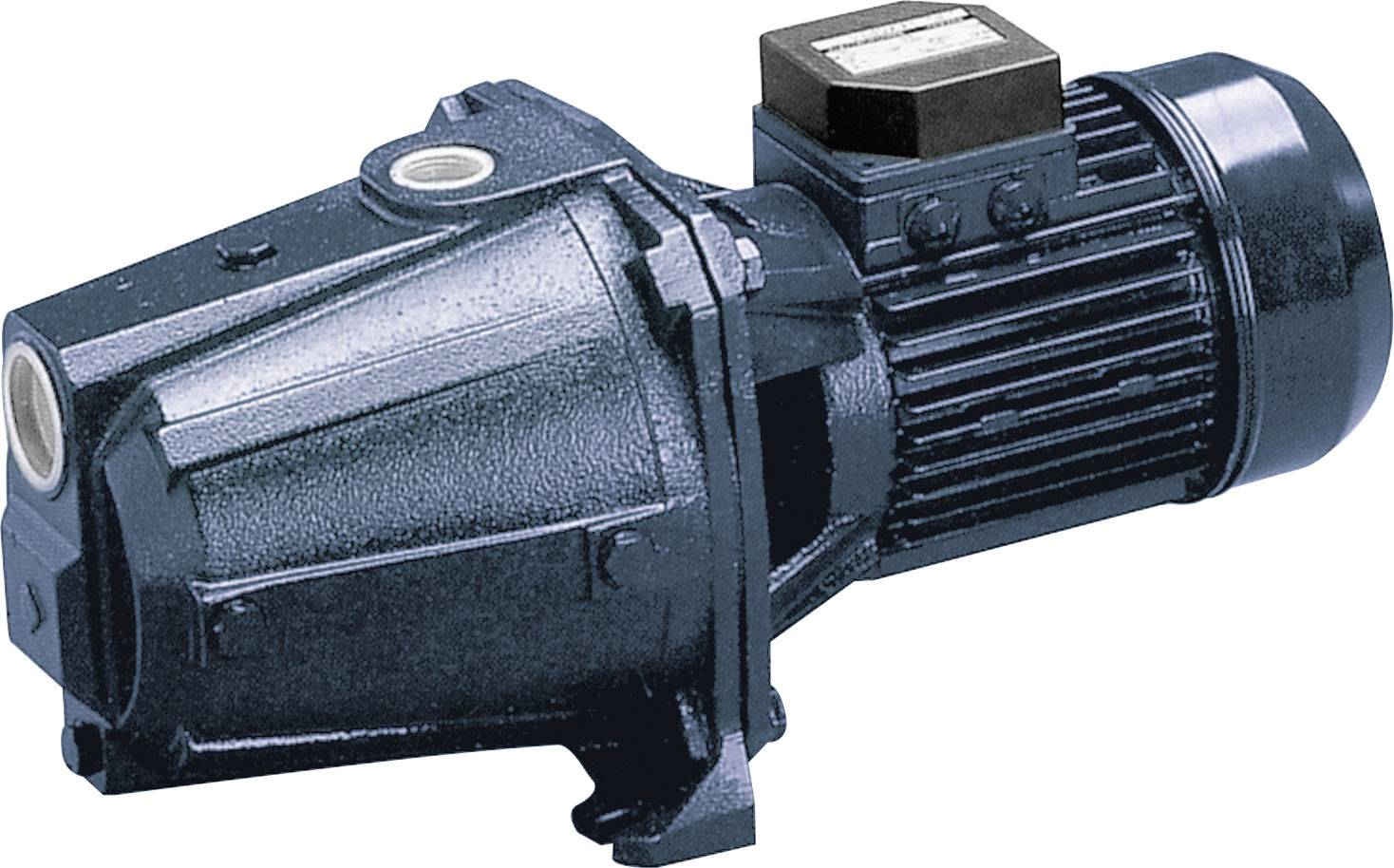

Ebara AGA 1.50 T (TÜV) Rotodynamic pump 7200 5 m 230 V, 400 V
EAN:
Part number:
Item no:
Highlights & Details
EBARA AGA 1.50 T (TUV) CENTRIFUGAL PUMP
- Impeller: Brass
- Motor carrier: Gray cast iron
- Operating pressure (max.) 10 bar
- Max. feed rate=7200;Max. delivery head=5 m
Technical specifications
- Product type
Rotodynamic pump
- Operating voltage
230 V
400 V
- Max. delivery head
5 m
- Max. feed rate
7200
- Overload protection
Yes
- Max. cable length
10 m
- Power (P2)
1650 W
IP44
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2207190 Ebara AGA 1.50 T (TÜV) Rotodynamic pump 7200 5 m 230 V, 400 V
Description
Self-priming, single-stage centrifugal pumps made of gray cast iron
The self-priming, horizontal centrifugal pumps made of gray cast iron are for the conveyance of clear liquids, which are the
Do not attack pump materials, suitable. Applications include water supply, pressure increase, irrigation, rain water use, washing facilities and filter systems.
The self-priming pumps AGA - AGC are practical and user-friendly. Thanks to their low weight and small dimensions, they are easy to install and maintain. Installed on a flat surface and well fixed, they enable a suction of up to 8 m. Before commissioning, the pump must be completely filled and bled. A foot valve including filter (on site) allows reliable operation.
This text is machine translated.
The self-priming, horizontal centrifugal pumps made of gray cast iron are for the conveyance of clear liquids, which are the
Do not attack pump materials, suitable. Applications include water supply, pressure increase, irrigation, rain water use, washing facilities and filter systems.
The self-priming pumps AGA - AGC are practical and user-friendly. Thanks to their low weight and small dimensions, they are easy to install and maintain. Installed on a flat surface and well fixed, they enable a suction of up to 8 m. Before commissioning, the pump must be completely filled and bled. A foot valve including filter (on site) allows reliable operation.
This text is machine translated.
Features
- Operating pressure (max.) 6 bar for AGA 0.60-0.75-1.00; 10 bar for the rest of the series
- Max. Temperature of the medium: 45°C.
- Max. Suction height 8 m.
- Number of poles: 2
- Insulation class: F
- Protection class: IP44
- 3-phase current: 3~230/400V ±10%
- Pump casing gray cast iron
- Impeller: PPE+PS (GFK) for AGA 0.60-0.75-1.00, brass for the rest of the series
- Ejector/difusor: PPE+PS (GFK)
- Shaft: Stainless steel AISI 303 (EN 1.4305) (contact with media)
- Ceramic/Coal/NBR mechanical seal (standard)
- Engine carrier: Aluminum for AGA 0.60-0.75-1.00, cast iron for the rest of the series
- This text is machine translated.
Scope of delivery
- EBARA AGA 1.50 T (TUV) CENTRIFUGAL PUMP
Hints
The alternating current version has a power capacitor and an integrated bimetal circuit breaker with automatic reset.The three-phase version has no built-in motor protection, so the user must provide overload protection.
