Ebara JEXM 150 Garten (TÜV) Rotodynamic pump 4.5 m³/h 59 m 230 V
EAN:
Part number:
Item no:
Highlights & Details
Ebara JEXM 150 Garden (TUV) submersible pump
- Max. delivery head=59 m
- Max. feed rate=4.5 m³/h
- Operating voltage=230 V
Technical specifications
- Product type
Rotodynamic pump
- Operating voltage
230 V
- Max. delivery head
59 m
- Max. feed rate
4.5 m³/h
- Max. cable length
10 m
IP54
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2207216 Ebara JEXM 150 Garten (TÜV) Rotodynamic pump 4.5 m³/h 59 m 230 V
Description

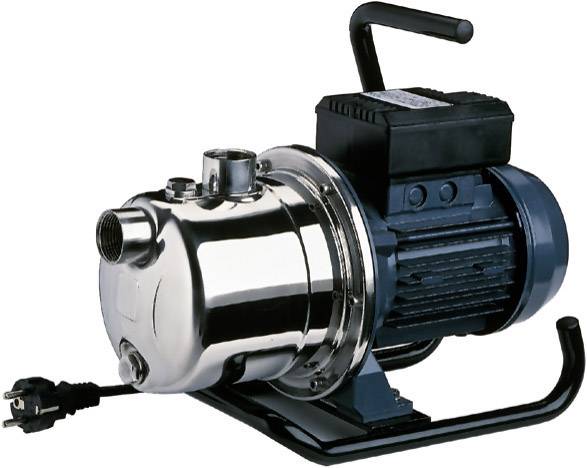

Self-priming, single-stage centrifugal pumps made of AISI 304
The self-priming, horizontal centrifugal pumps made of stainless steel AISI 304 (EN 1.4301) are suitable for conveying clear liquids that do not attack the pump materials. Areas of application include water supply, pressure increase, irrigation, rain water use, washing facilities, Filter systems, apparatus construction and industrial applications.
This text is machine translated.
The self-priming, horizontal centrifugal pumps made of stainless steel AISI 304 (EN 1.4301) are suitable for conveying clear liquids that do not attack the pump materials. Areas of application include water supply, pressure increase, irrigation, rain water use, washing facilities, Filter systems, apparatus construction and industrial applications.
This text is machine translated.
Features
- Operating pressure (max.) 6 bar
- Max. Medium temperature 45°C.
- Max. Suction height 8 m.
- Number of poles: 2
- Insulation class F
- Protection class IP54 (IP55 on request)
- Alternating current voltage 1~230V ±10%
- Pump housing stainless steel AISI 304 (EN 1.4301)
- Impeller AISI 304 (EN 1.4301) stainless steel for JEX PPE+PS (GFK) for JESX
- Ejector/difusor PPE+PS (GFK)
- Shaft stainless steel AISI 303 (EN 1.4305)(media contact part)
- Ceramic/Coal/NBR mechanical seal (standard)
- Motor carrier and motor housing made of aluminum
- The alternating current version has a power capacitor and an integrated bimetal circuit breaker with automatic reset.
- This text is machine translated.
Scope of delivery
- Ebara JEXM 150 Garden (TUV) submersible pump
