Eberle 0101 20 141 500 EV 230 Klemmleiste Punchdown block Surface-mount 365 days mode 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 80.66 / piece)
€ 80.66
plus VAT.
14-day return policy included
Highlights & Details
Distributor strip
- IP43 protection
- 6 room regulation
Technical specifications
- Power input: 10 W
- Dim: 310 x 90 x 65 mm (incl. top-hat rail)
- Product type
Punchdown block
- Operation type
thermal
- Switching cycle
365 days mode
- Frost protection
No
- Display
No
- Compatible with
Underfloor heating
- Mounting type
Surface-mount
- Operating voltage
230 V
- Nighttime drop
No
- Factory colour
White
- Width
9 cm
- Height
6.5 cm
- Length
31 cm
IP43
- Dim
(L x W x H) 31 x 9 x 6.5 cm
- Adjustment range
-
- Operating voltage
230 V/50 Hz
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 611273 Eberle 0101 20 141 500 EV 230 Klemmleiste Punchdown block Surface-mount 365 days mode 1 pc(s)
Description

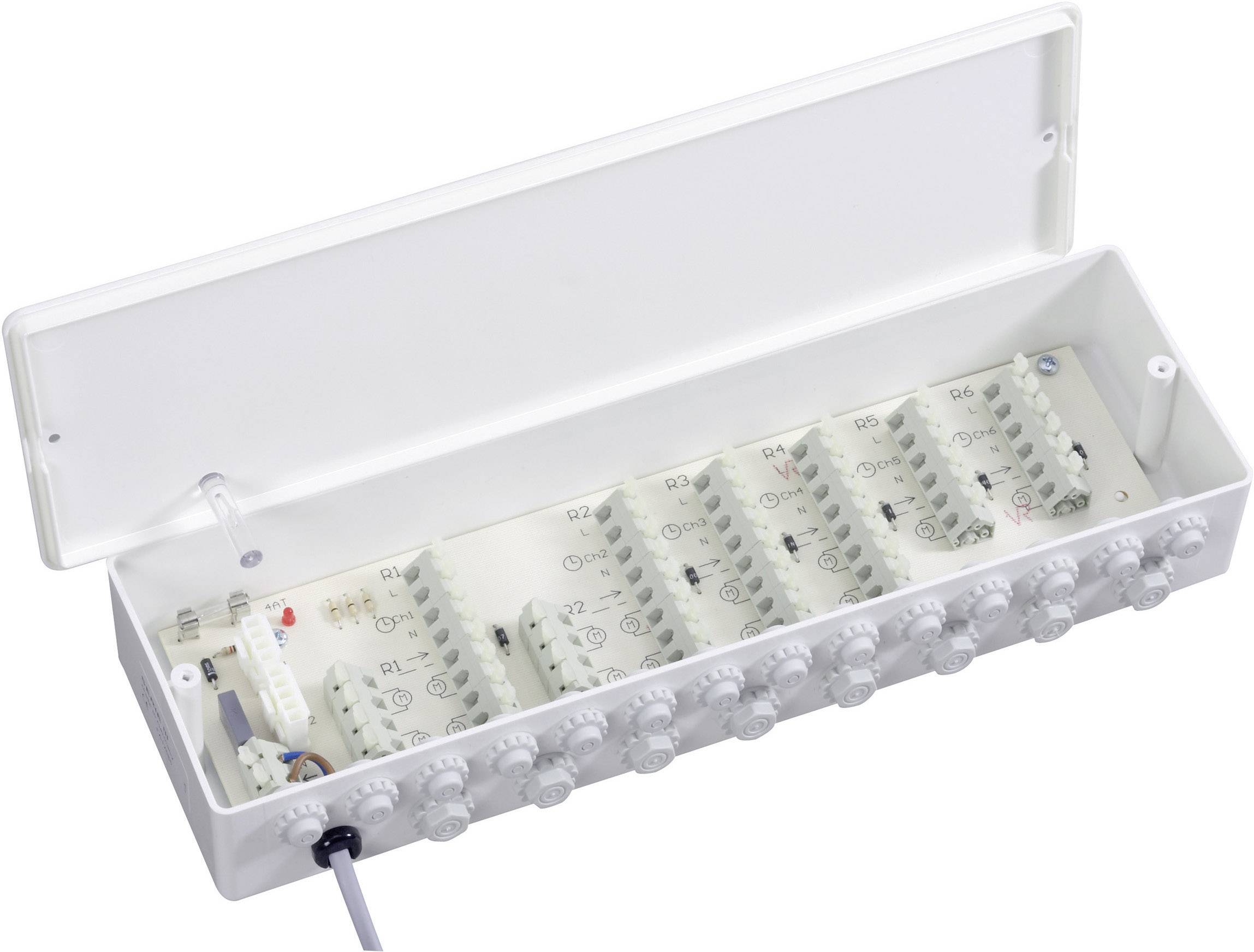

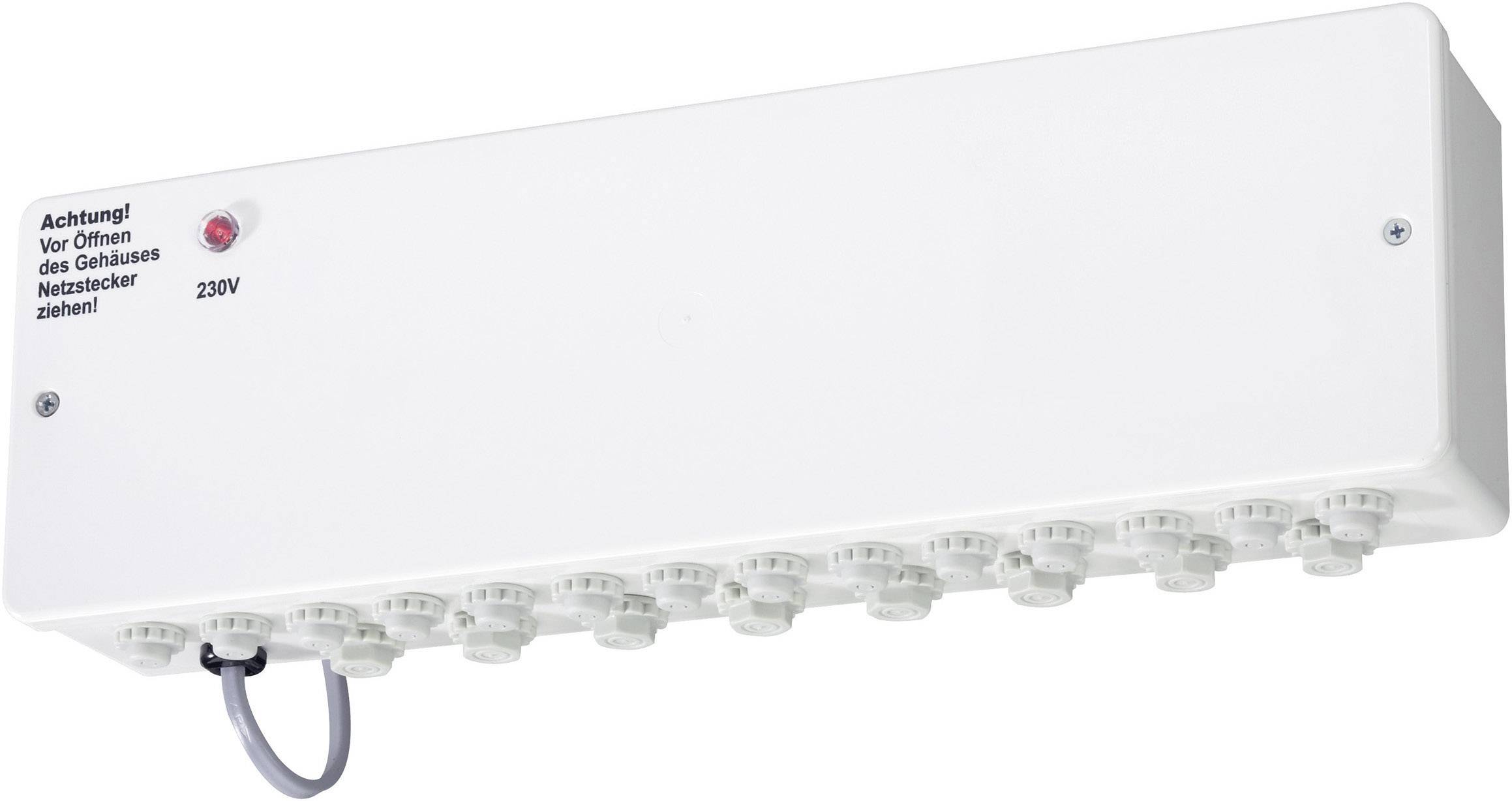

Distributor bank for the direct electrical wiring of temperature controlleers to electro-thermal actuators at hot-water floor heaters. Independent regulation of up to 6 rooms/regulation zones, whereby each room/zone needs its own room thermostat and can thus be regulated individually.
Features
- Automatic daylight savings time adjustment
- Party/holiday function.
