Eberle 527812455504 UTE 4800-F-RAL9010-G-55 Indoor thermostat Flush mount 24h mode, 7 day mode Heating/cooling 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
Highlights & Details

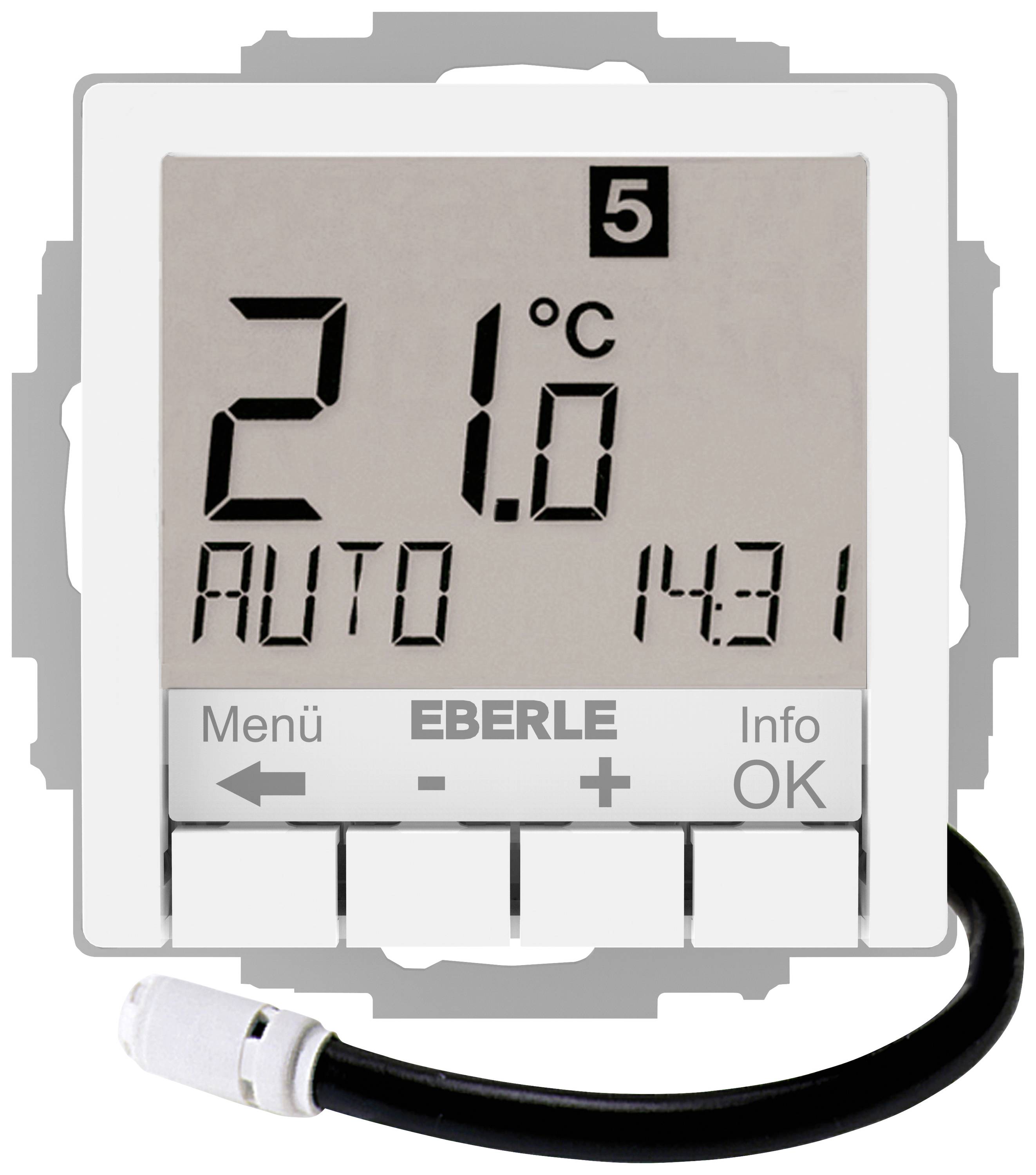

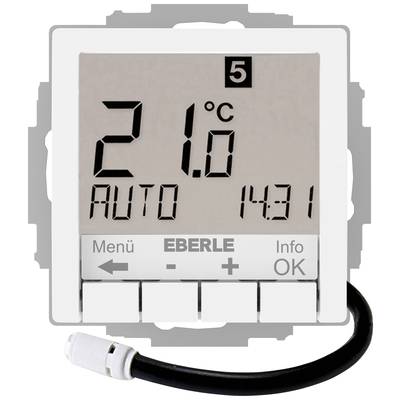

Eberle UTE 4800-F-RAL9010-G-55 UP thermostat insert
- Flexible - adjustable time programs
- Energy efficient - optimum-start function
- Transparent - power consumption display
- Versatile - heating/cooling application
- Easy installation - programmable via display menu and with removed control panel
- Digital - optimally readable display with background lighting
Technical specifications
- Switching current: 10 mA … 16 (4) A * 230 V~
- Product type
Indoor thermostat
- Operation type
electronical
- Switching cycle
24h mode
7 day mode
- Max. temperature setting
40 °C
- Temperature settings
10 up to 40 °C
- Frost protection
Yes
- Display
Yes
- Remote sensor
Yes
- Compatible with
Underfloor heating
Heaters
- Mounting type
Flush mount
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Contact load capacity
16 A
- Factory colour
White (glossy)
- Similar RAL
9010
- Width
55 mm
- Height
55 mm
- Dim
(W x H) 55 mm x 55 mm
- Type
Heating/cooling
- Contact type
1 maker
- Min. temperature setting
10 °C
Documents & Downloads
Datasheet
Datasheet 3192694 Eberle 527812455504 UTE 4800-F-RAL9010-G-55 Indoor thermostat Flush mount 24h mode, 7 day mode Heating/cooling 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3192694 Eberle 527812455504 UTE 4800-F-RAL9010-G-55 Indoor thermostat Flush mount 24h mode, 7 day mode Heating/cooling 1 pc(s)
Description
UTE 4100/4800-F with integrated remote sensor is the perfect solution for electrical floor temperature control systems and direct floor heating - for an environment to feel comfortable.
This text is machine translated.
This text is machine translated.
Features
- Nominal voltage AC 230 V
- White backlighting
- Single-line text display for self-explanatory operation
- Pre-set and adjustable lifestyle time programs
- Extra day program (e.g. for public holidays)
- Block formation of switching times: 7-days, 5/2-days, all days equal
- Max. 9 switch times per day
- Optimum start (temperature is reached at the set time)
- Short-time timer (Party) for changing the temperature on an hourly basis
- Restart delay, e.g. for burners
- Adaptation to valves open without current (with R-variant)
- Valve protection (for R-version)
- Automatic summer/winter time changeover
- Anti-theft protection
- Holiday function with date (from / to)
- Frost protection
- PWM or 2 point controller
- Also programmable with removed control panel
- Energy consumption display (switch-on time * costs) for the last 2 days, last week, month or year.
