Eberle 527816455604 UTE 4100-F-RAL9016-G-55 Indoor thermostat Flush mount Heating/cooling 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
14-day return policy included
Highlights & Details

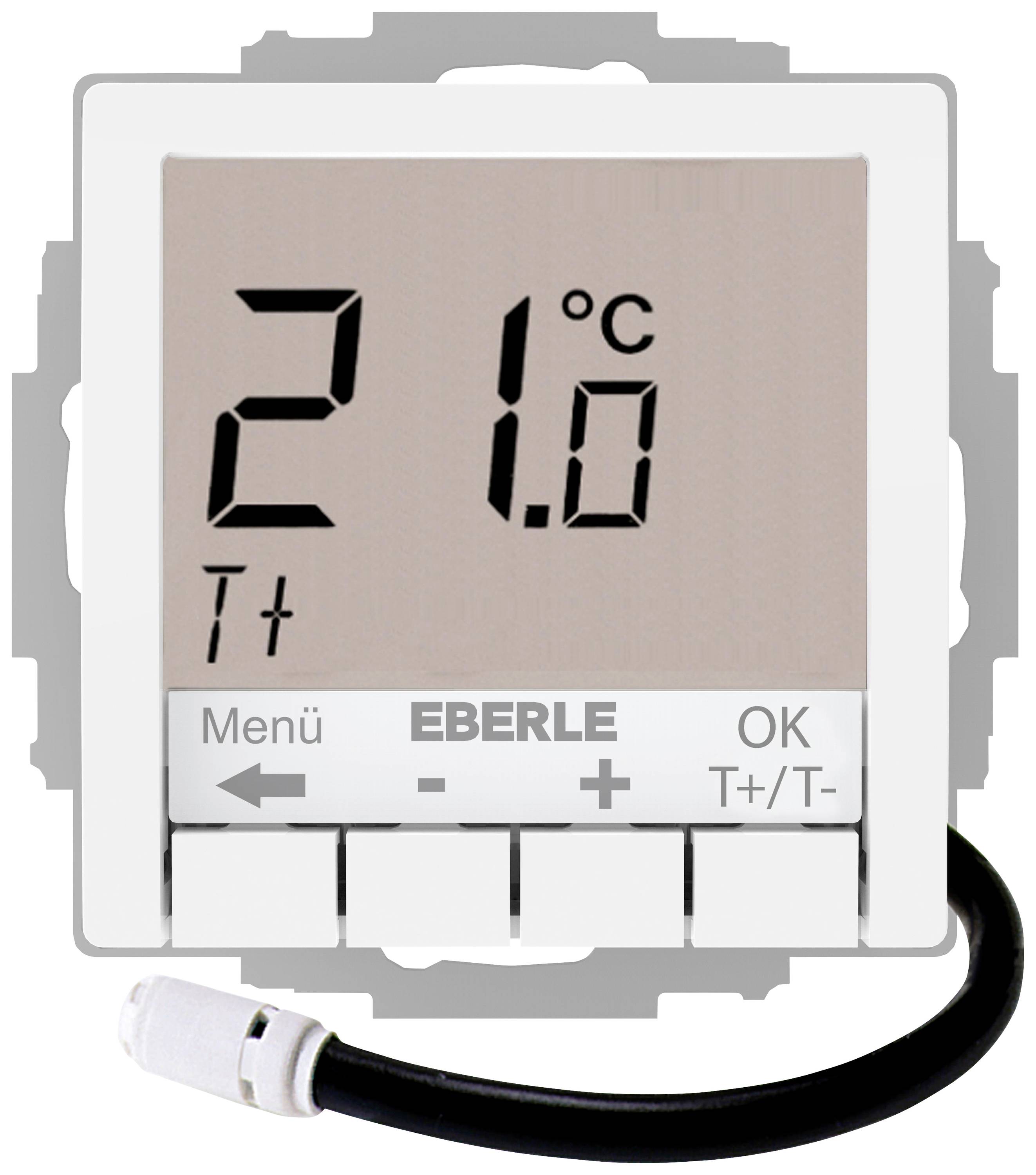

Eberle UTE 4100-F-RAL9016-G-55 UP thermostat insert
- Flexible - adjustable time programs
- Energy efficient - optimum-start function
- Transparent - power consumption display
- Versatile - heating/cooling application
- Easy installation - programmable via display menu and with removed control panel
- Digital - optimally readable display with background lighting
Technical specifications
- Switching current: 10 mA … 16 (4) A * 230 V~
- Product type
Indoor thermostat
- Operation type
electronical
- Max. temperature setting
40 °C
- Temperature settings
10 up to 40 °C
- Frost protection
Yes
- Display
Yes
- Remote sensor
Yes
- Compatible with
Underfloor heating
Heaters
- Mounting type
Flush mount
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Contact load capacity
16 A
- Nighttime drop
Yes
- Factory colour
White (glossy)
- Similar RAL
9016
- Width
55 mm
- Height
55 mm
- Dim
(W x H) 55 mm x 55 mm
- Type
Heating/cooling
- Contact type
1 maker
- Min. temperature setting
10 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3192689 Eberle 527816455604 UTE 4100-F-RAL9016-G-55 Indoor thermostat Flush mount Heating/cooling 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3192689 Eberle 527816455604 UTE 4100-F-RAL9016-G-55 Indoor thermostat Flush mount Heating/cooling 1 pc(s)
Description
UTE 4100/4800-F with integrated remote sensor is the perfect solution for electrical floor temperature control systems and direct floor heating - for an environment to feel comfortable.
This text is machine translated.
This text is machine translated.
Features
- Nominal voltage AC 230 V
- White backlighting
- Single-line text display for simplified operation
- Backlight (off, continuous, only after pressing a button)
- Simple switching between 2 temperatures (e. g. comfort and lowering temperature)
- ECO input for activating a freely adjustable temperature, for example for night reduction
- Also programmable with removed control panel
- Turn-off function, press the Menu button for 10 seconds
- Short-time timer (Party) for changing the temperature on an hourly basis
- Energy consumption display (switch-on time * costs) for the last 2 days, last week, month or year (mainly for electric heating)
- Frost protection
- Adjustable range of the temperature can be limited
- Temperature display can be adjusted to local conditions
- Anti-theft protection
- Adjustable operator languages
- PWM or 2 point controller
- Adaptation to valves open without current
- Adjustable heating/cooling
- Valve protection (for R-version)
- .
Hints
