Buy Eberle 547890054502 UTE 2100-RAL9010-G-55 Indoor thermostat Flush mount 1 pc(s)

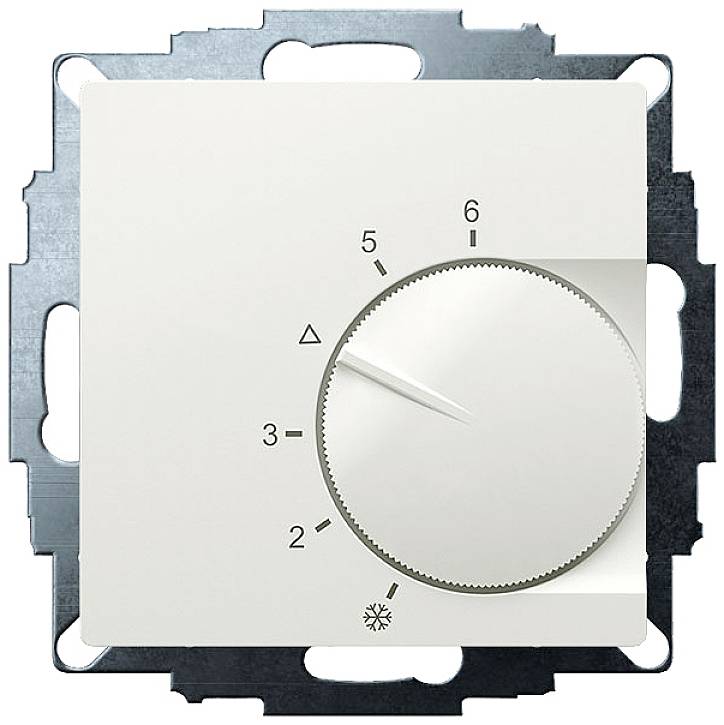

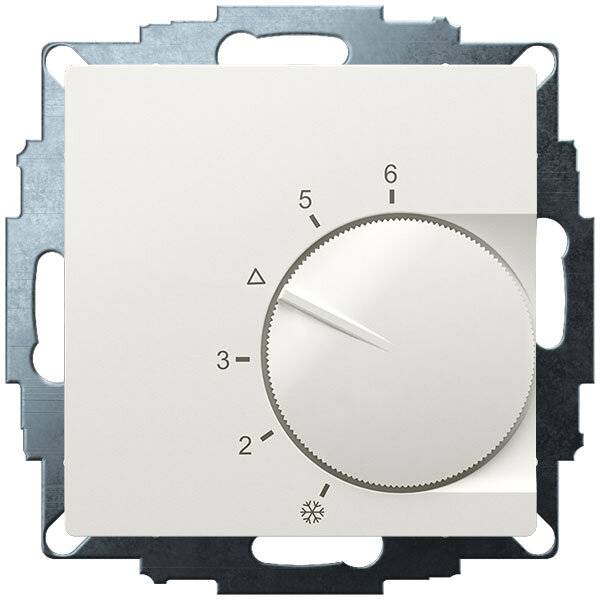

White rotary thermostat on a metal plate, scale from 1 to 6, currently set to 4. Suitable for temperature regulation of heating systems.

Eberle 547890054502 UTE 2100-RAL9010-G-55 Indoor thermostat Flush mount 1 pc(s)-1

Eberle 547890054502 UTE 2100-RAL9010-G-55 Indoor thermostat Flush mount 1 pc(s)-2

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 50.41 / piece)

€ 50.41

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

EBERLE UTE 2100-RAL9010-G-55 UP-ROOM CONTROLLER

FLUSH-MOUNTED ROOM CONTROLLER, 5 - 30 C, 230 V ACContact-free output by means of triacSwitchable 5 actuators a 3 W

Technical specifications

Product type: Indoor thermostat

Operation type: electronical

Max. temperature setting: 30 °C

Temperature settings: 5 up to 30 °C

Frost protection: Yes

Display: No

Remote sensor: No

Compatible with: Underfloor heating

Mounting type: Flush mount

Power supply (LOV): mains-powered

Operating voltage: 230 V

Factory colour: Polar white glossy

Similar RAL: 9010

Width: 55 mm

Height: 55 mm

: IP30

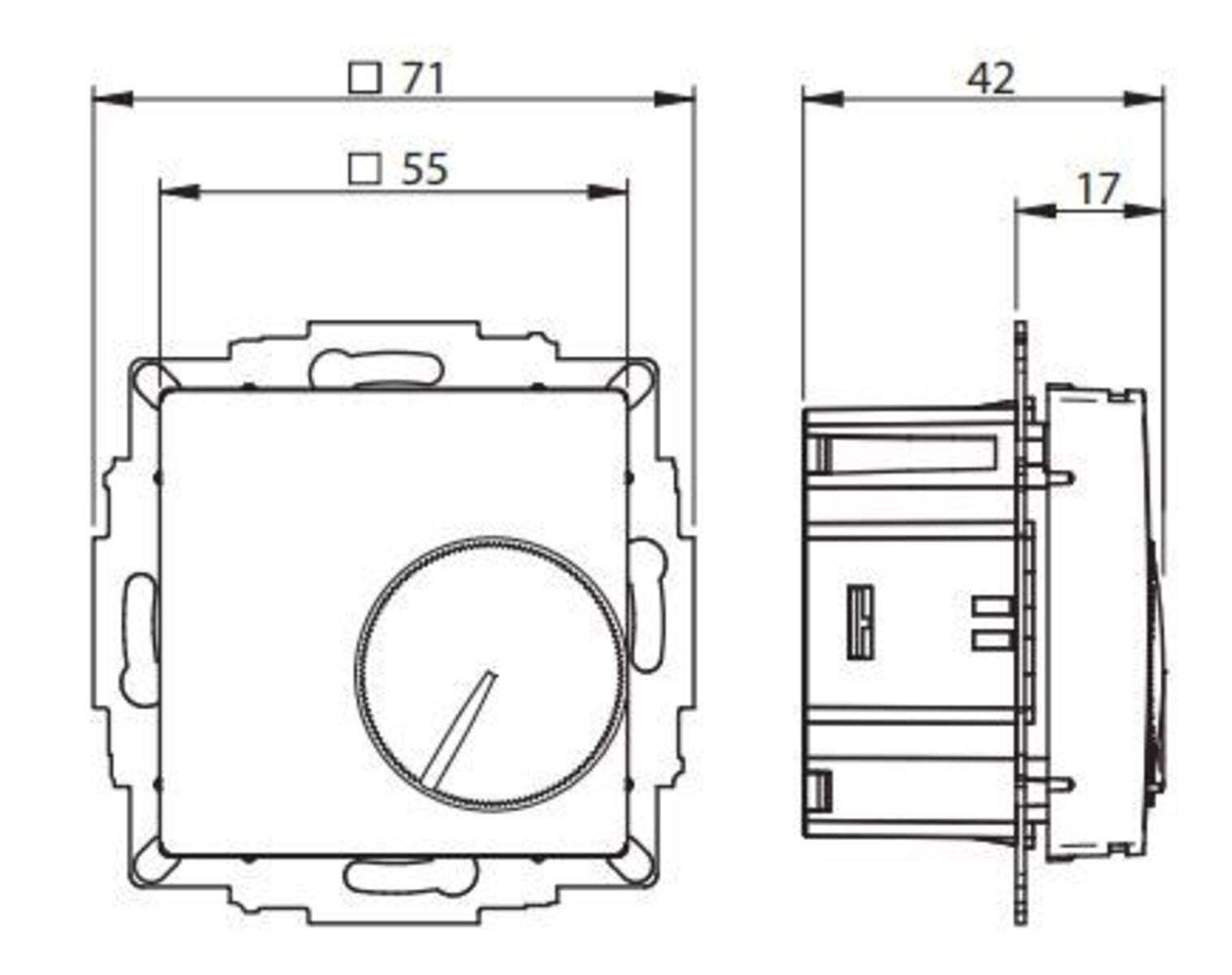

Dim: (W x H) 55 mm x 55 mm

Weight: 60 g

Contact type: Triac

Min. temperature setting: 5 °C

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2559375 Eberle 547890054502 UTE 2100-RAL9010-G-55 Indoor thermostat Flush mount 1 pc(s)

Description

Electronic flush-mounted room temperature controller for controlling or monitoring temperatures in living rooms, offices and hotels. Suitable for all common switch programs. Polar white glossy, 55x55 cover with button. Suitable for water-guided heating systems. By using a triac switch completely noiseless, in contrast to relays or bimetallic. Can be switched for actuators closed without current or closed without current, therefore can be used for heating or cooling. Adjustable range restriction in the adjustment knob as heating cost brake. A captive screw with threaded insert to secure the housing cover and convenient plug-in terminals make it easy to install. Mounting in 55er flush-mounted socket.

This text is machine translated.
