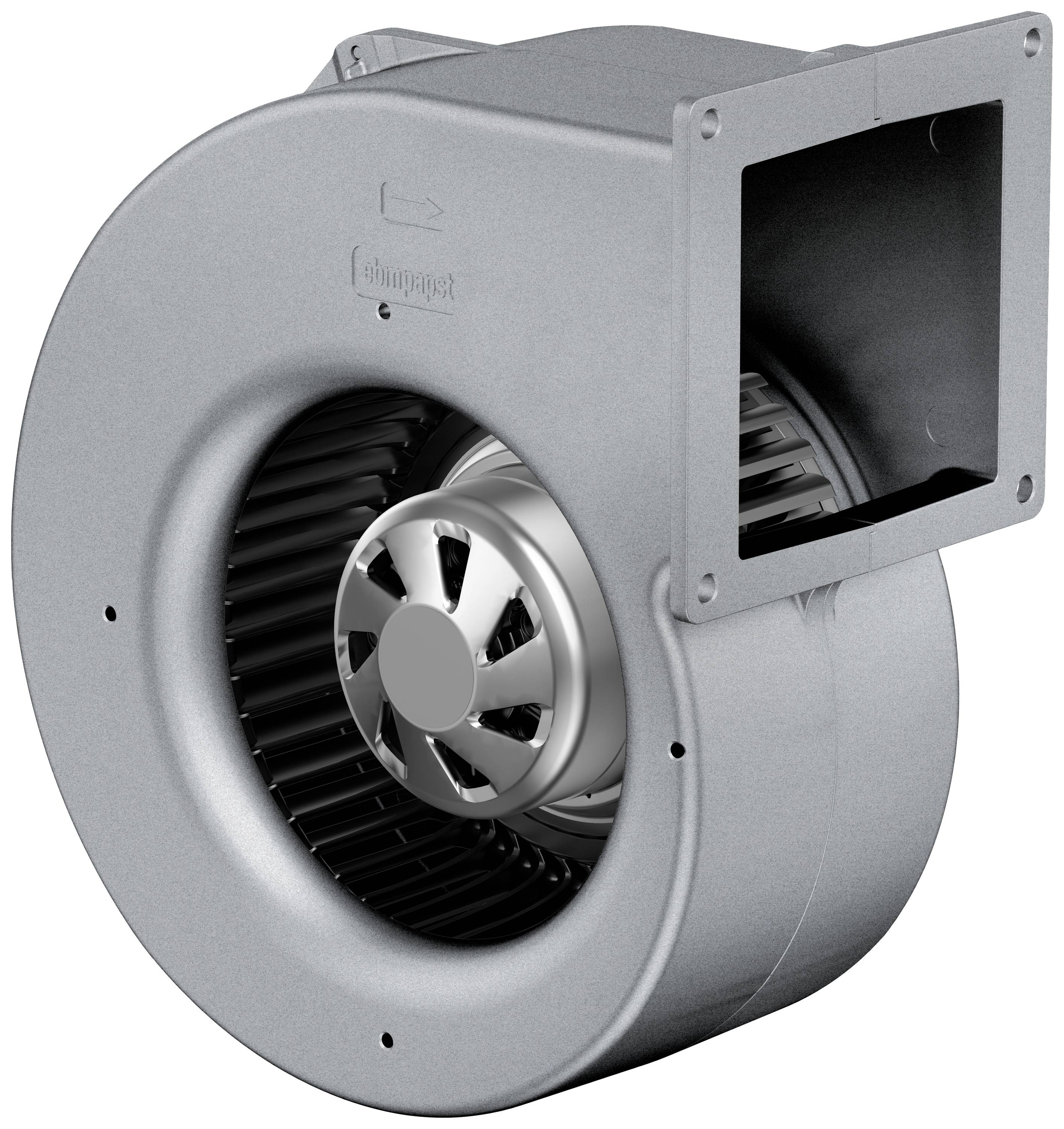

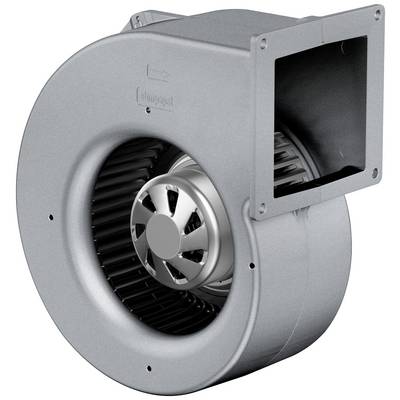

EBM Papst 8300100088 Radial extractor 230 V 335 m³/h
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
RG 230VAC EC STANDARD
- Clock-wise rotation
- Ball bearing IP54 ISO class B
- Control input 0-10VDC / PWM
- Cable 450mm
Technical specifications
- Product type
Radial extractor
- Nominal voltage
230 V
- Nominal voltage range
200 - 240 V
165 W
- Rotational speed
3090 U/min
- Air flow rate
335 m³/h
- Min. temperature
-25 °C
- Max. temperature
60 °C
IP54
- Material
Aluminium (die-cast)
Plastic
- Dim
(W x H x D) 227 x 262 x 130 mm
- Width
227 mm
- Height
262 mm
- Depth
130 mm
Documents & Downloads
Datasheet
Datasheet 2901001 EBM Papst 8300100088 Radial extractor 230 V 335 m³/h
User & Safety Instructions
User & Safety Instructions 2901001 EBM Papst 8300100088 Radial extractor 230 V 335 m³/h
Description
Store the device partly as well as fully assembled, dry, weatherproof and vibration-free in the original packaging in a clean environment.
Protect the device from environmental influences and dirt until the final installation is completed.
This text is machine translated.
Protect the device from environmental influences and dirt until the final installation is completed.
This text is machine translated.
Features
- Output 10 VDC, max. 10 mA
- Blocking detection
- Speed output
- Speed control
- Power limitation
- Motor current limitation
- Soft start-up.
- Control input 0-10 VDC / PWM
- Control interface with SELV potential securely isolated from the grid
- Overvoltage detection
- Overtemperature protection Electronic / Motor
- Under voltage identification
- POWER CORD (PWR) PVC AWG20
- 3x wire-end claw
- 2 CONTROL CABLE (CTRL) PVC AWG22
- 6x wire-end clamp
