EBM Papst 9203510005 In-line extractor 115 V, 230 V 70 m³/h 98 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

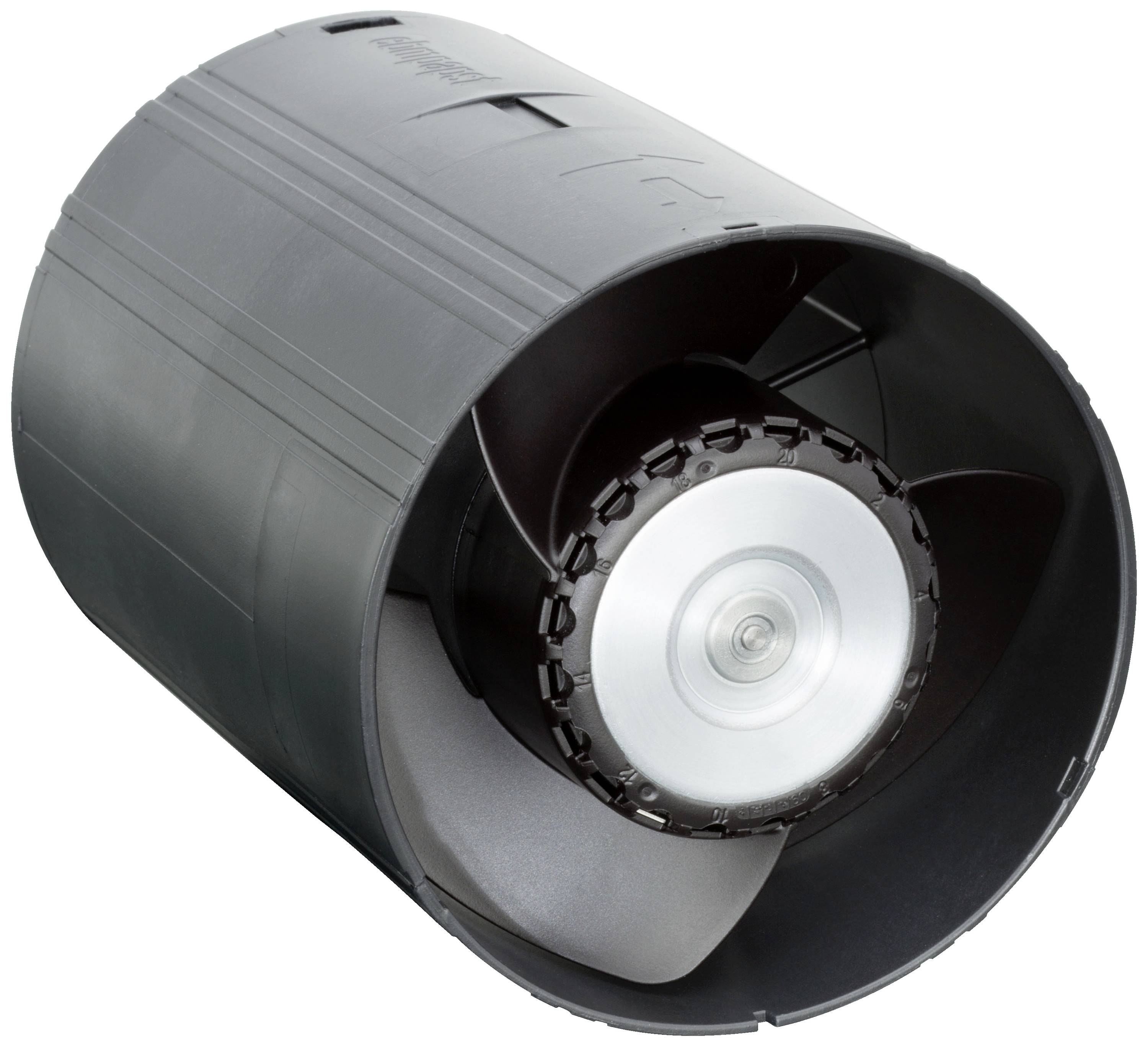

Pipe fan 98.5 x 130 mm
- Pipe fan 98 x 130mm
- Operating voltage 85 - 265 V AC
- max. 101m³/h
Technical specifications
- Product type
In-line extractor
- Nominal voltage
115 V
230 V
- Nominal voltage range
85 V - 265 V
- Current consumption
37 - 80 mA
5 W
- Air flow rate
70 m³/h
- Rotational speed
3500 U/min
- Suitable for pipe Ø
98 mm
- Noise emission (max.)
42 dB
- Factory colour
Black
- Material
Plastic
- Dim
(Ø x L) 98 mm x 130 mm
- Length
130 mm
- (Ø)
98 mm
Documents & Downloads
Datasheet
Datasheet 2900990 EBM Papst 9203510005 In-line extractor 115 V, 230 V 70 m³/h 98 mm
User & Safety Instructions
User & Safety Instructions 2900990 EBM Papst 9203510005 In-line extractor 115 V, 230 V 70 m³/h 98 mm
Description
Store the device partly as well as fully assembled, dry, weatherproof and vibration-free in the original packaging in a clean environment.
; Protect the device until it is fully installed
Environmental influences and dirt
This text is machine translated.
; Protect the device until it is fully installed
Environmental influences and dirt
This text is machine translated.
