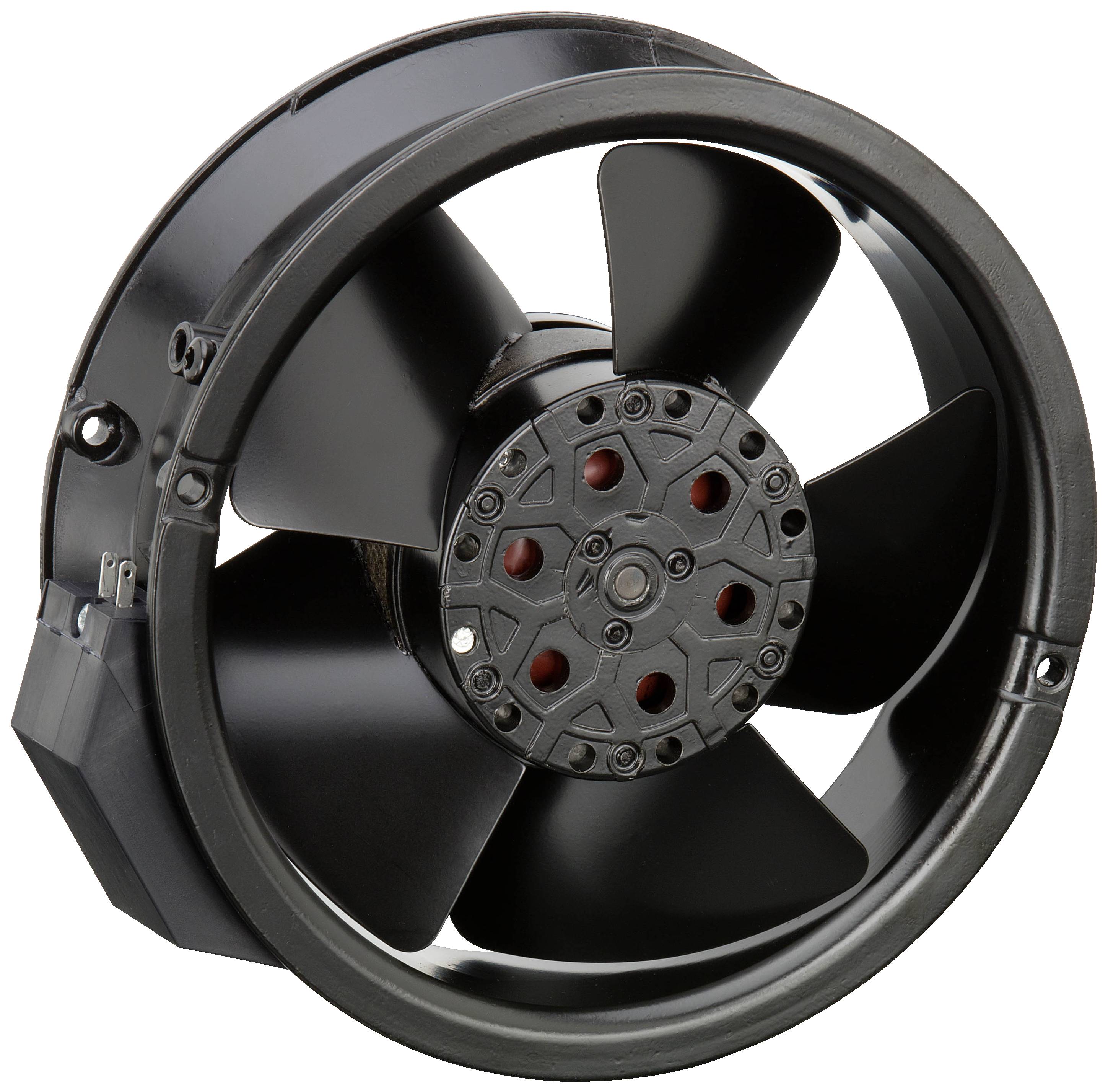

EBM Papst AC-Axiallüfter Axial fan 115 V 400 m³/h (Ø) 171 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
115 V
Power
28 W
Type of bearing
Ball bearing
Air flow rate
400 m³/h
Datasheet (PDF)
Highlights & Details
Compact fan 172x51mm
- 115 V
- 24/26W 375/445 m³/h
- Promotion "V"
Technical specifications
- Product type
Axial fan
- Type
AC-Axiallüfter
- Nominal voltage
115 V
- Max. current consumption
0.25 A
28 W
- Type of bearing
Ball bearing
- Rotational speed
3300 U/min
- Air flow rate
400 m³/h
- Connection
Plug
- Factory colour
Black
- Material
Aluminium (die-cast)
Steel plate
- Weight
940 g
IP20
- Min. temperature
-25 °C
- Max. temperature
70 °C
- (Ø)
171 mm
- Width
51 mm
- Dim
(Ø) 171 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2900994 EBM Papst AC-Axiallüfter Axial fan 115 V 400 m³/h (Ø) 171 mm
User & Safety Instructions
User & Safety Instructions 2900994 EBM Papst AC-Axiallüfter Axial fan 115 V 400 m³/h (Ø) 171 mm
Description
Store the device partly as well as fully assembled, dry, weatherproof and vibration-free in the original packaging in a clean environment.
Protect the device from environmental influences and dirt until the final installation is completed.
This text is machine translated.
Protect the device from environmental influences and dirt until the final installation is completed.
This text is machine translated.
Features
- 24/26W 375/445 m³/h
- Promotion "V"
- Ball bearing-IP20-I.KL"B"-TW
- incl. super smash bros. Capacitor
- Plug 2.8 x 0.5 mm
- APPROVALS GOST; CSA; UL 507; VDE
