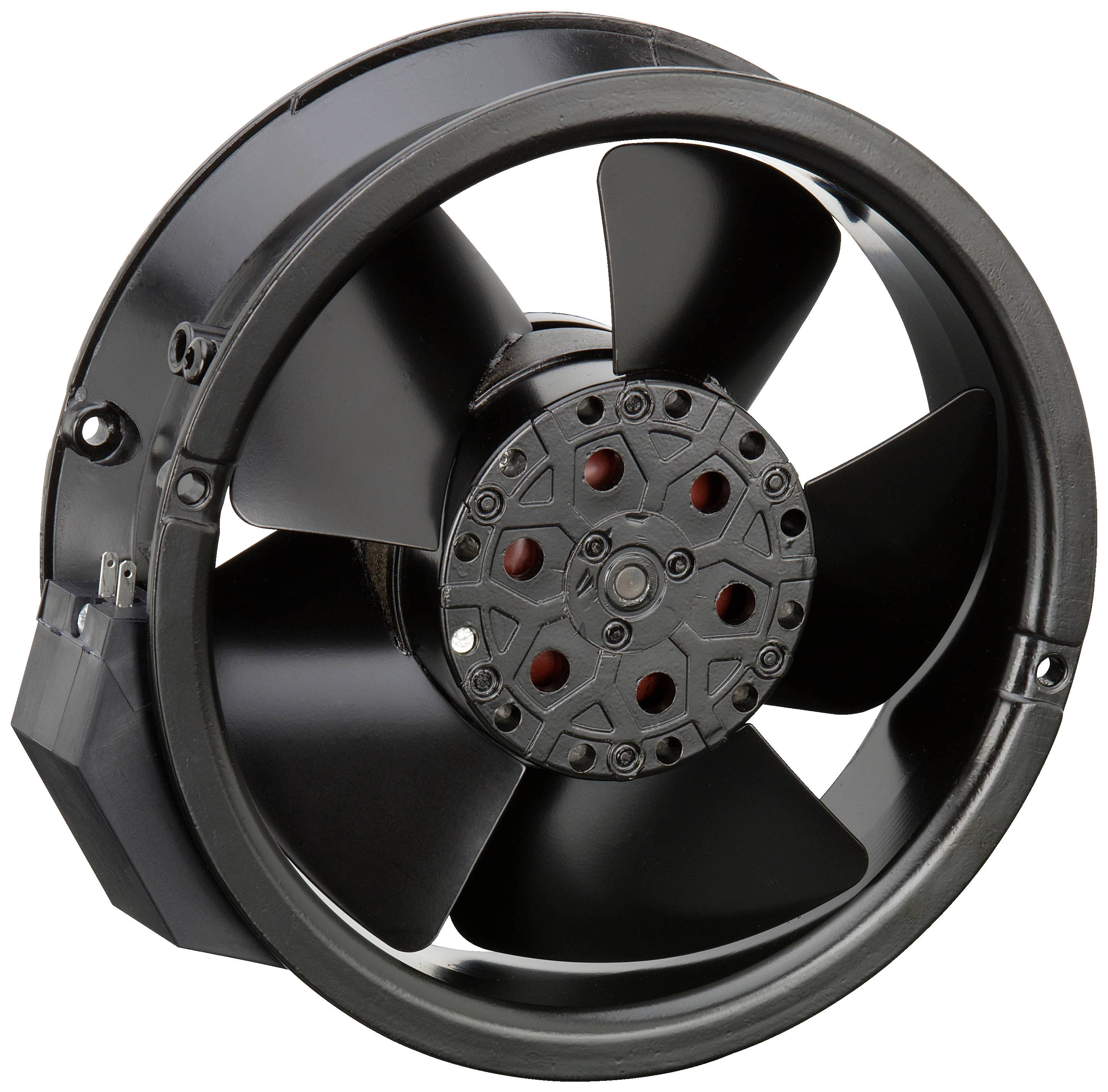

EBM Papst AC-Axiallüfter Axial fan 230 V 300 m³/h (Ø x H) 185 mm x 185 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V
Power
24 W
Type of bearing
Ball bearing
Air flow rate
300 m³/h
Datasheet (PDF)
Highlights & Details
Compact fan 172x51mm
- 230VAC-50/60Hz
- Cond. V
- BALL-BEARING IP20-I.KL. B
Technical specifications
- Product type
Axial fan
- Type
AC-Axiallüfter
- Nominal voltage
230 V
- Max. current consumption
0.12 A
24 W
- Type of bearing
Ball bearing
- Rotational speed
2800 U/min
- Air flow rate
300 m³/h
- Connection
Plug
- Factory colour
Black
- Material
Aluminium (die-cast)
Steel plate
- Weight
1 kg
IP20
- Min. temperature
-25 °C
- Max. temperature
70 °C
- (Ø)
185 mm
- Width
51 mm
- Height
185 mm
- Dim
(Ø x H) 185 mm x 185 mm
Documents & Downloads
Datasheet
Datasheet 2900993 EBM Papst AC-Axiallüfter Axial fan 230 V 300 m³/h (Ø x H) 185 mm x 185 mm
User & Safety Instructions
User & Safety Instructions 2900993 EBM Papst AC-Axiallüfter Axial fan 230 V 300 m³/h (Ø x H) 185 mm x 185 mm
Description
Store the device partly as well as fully assembled, dry, weatherproof and vibration-free in the original packaging in a clean environment.
Protect the device from environmental influences and dirt until the final installation is completed.
This text is machine translated.
Protect the device from environmental influences and dirt until the final installation is completed.
This text is machine translated.
Features
- 230VAC-50/60Hz
- Cond. V
- BALL-BEARING IP20-I.KL. B
- TW-version
- Painting: Device black
- Plug 2.8 x 0.5mm n.LV 2053
