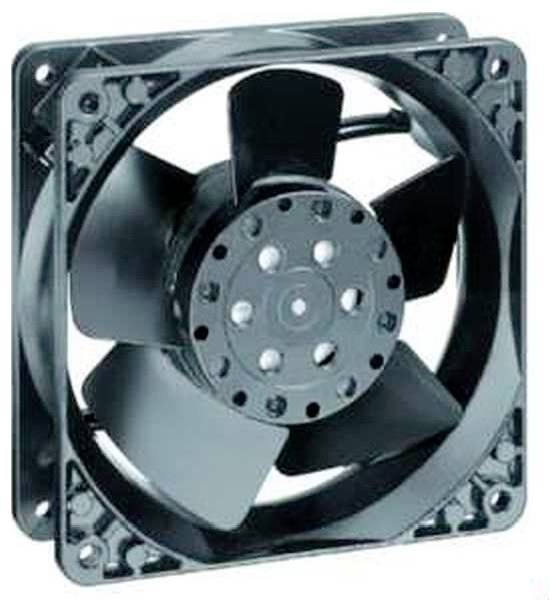

EBM Papst Axial fan 230 V AC (L x W x H) 38 x 119 x 119 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Power
19 W
Length
38 mm
Width
119 mm
Technical specifications
- Product type
Axial fan
- Type
4650N
- Nominal voltage
230 V AC
19 W
- Length
38 mm
- Width
119 mm
- Height
119 mm
- Dim
(L x W x H) 38 x 119 x 119 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3819527 EBM Papst Axial fan 230 V AC (L x W x H) 38 x 119 x 119 mm
Description
AC voltage fan with outer runner-up gap pole motor, protected against overload by impedance protection, fan housing and fan blade wheel made of metal, sucking via bars, direction of rotation on rotor seen on the right, blowing types 3.0 N and 4840 N over bars, electrical connection at 2 flat plugs 4890 x 0.5 mm, fan wheel with 3 or 5 wings, see note in case of fan type, Optional available: Versions with reinforced mounting flanges and freely designed individual strands, fan housing with earthing lugs with M4 and UNC thread, mass 550g, please note our new series ACmaxx, with identical mounting dimensions and voltages this series achieves a higher energy efficiency
