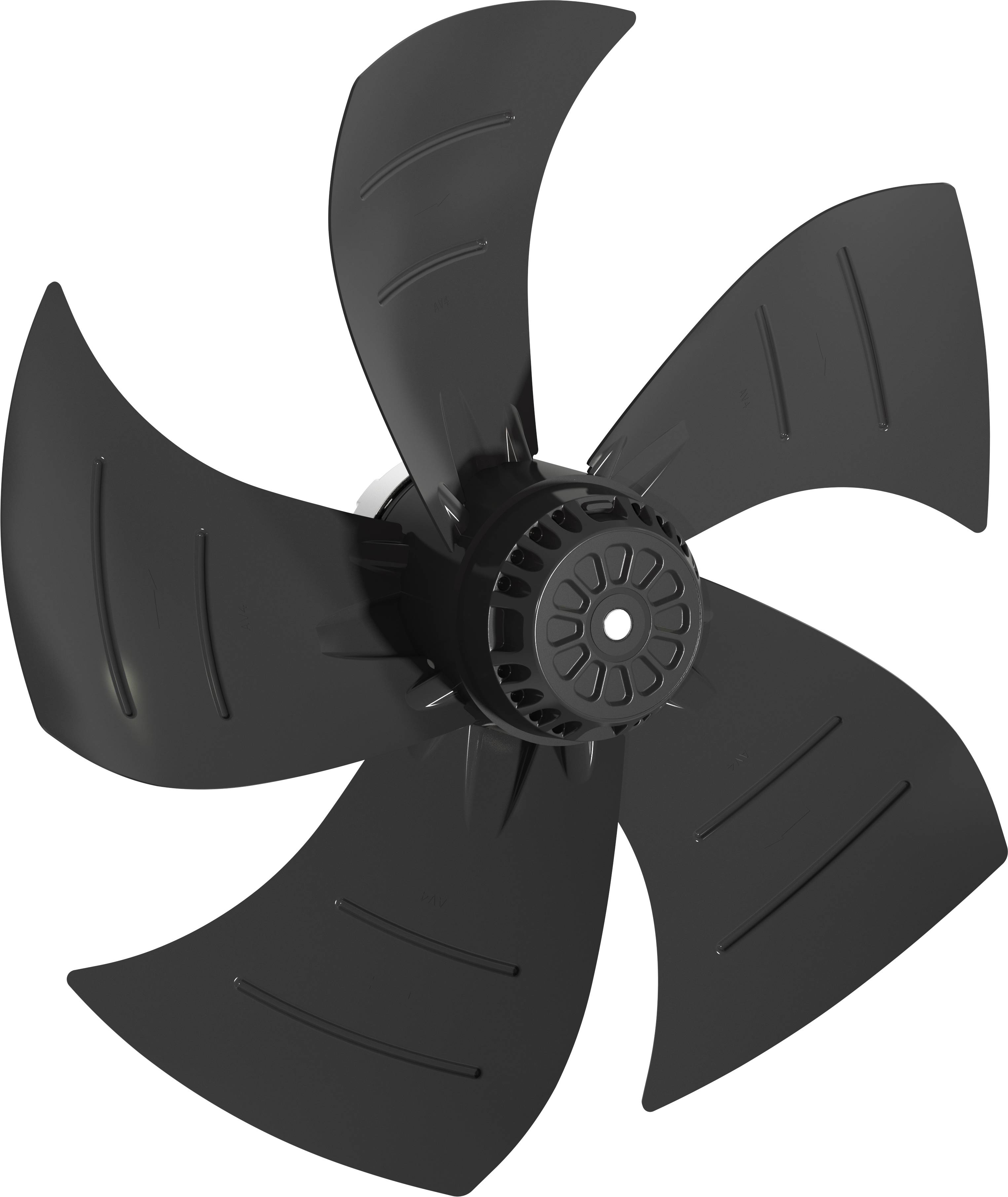

EBM Papst VAY0450X5NLS Axial fan 230 V AC 6040 m³/h (L x W x H) 135 x 446 x 446 mm
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Power
285 W
Type of bearing
Ball bearing
Air flow rate
6040 m³/h
Datasheet (PDF)
Technical specifications
- Motor: AC, 3~ Powered 4-pole
- Motor number: 4
- Motor size 74 mm
- Wheel size 450 mm
- Direction of rotation: Right
- Motor system: External rotor
- Motor type: Asynchronous motor
- Product type
Axial fan
- Type
VAY0450X5NLS
- Nominal voltage
230 V AC
- Min. operating voltage
230 V AC
- Max. operating voltage
400 V AC
- Operating voltage
230 - 400 V AC
- Max. current consumption
0.53 A
285 W
- Type of bearing
Ball bearing
- Rotational speed
1540 U/min
- Noise emission (max.)
75 dBa
- Air flow rate
6040 m³/h
- Cable length
600 mm
- Weight
4950 g
IP44
- Length
135 mm
- Width
446 mm
- Height
446 mm
- Dim
(L x W x H) 135 x 446 x 446 mm
Documents & Downloads
Datasheet
Datasheet 3836499 EBM Papst VAY0450X5NLS Axial fan 230 V AC 6040 m³/h (L x W x H) 135 x 446 x 446 mm
User & Safety Instructions
User & Safety Instructions 3836499 EBM Papst VAY0450X5NLS Axial fan 230 V AC 6040 m³/h (L x W x H) 135 x 446 x 446 mm
