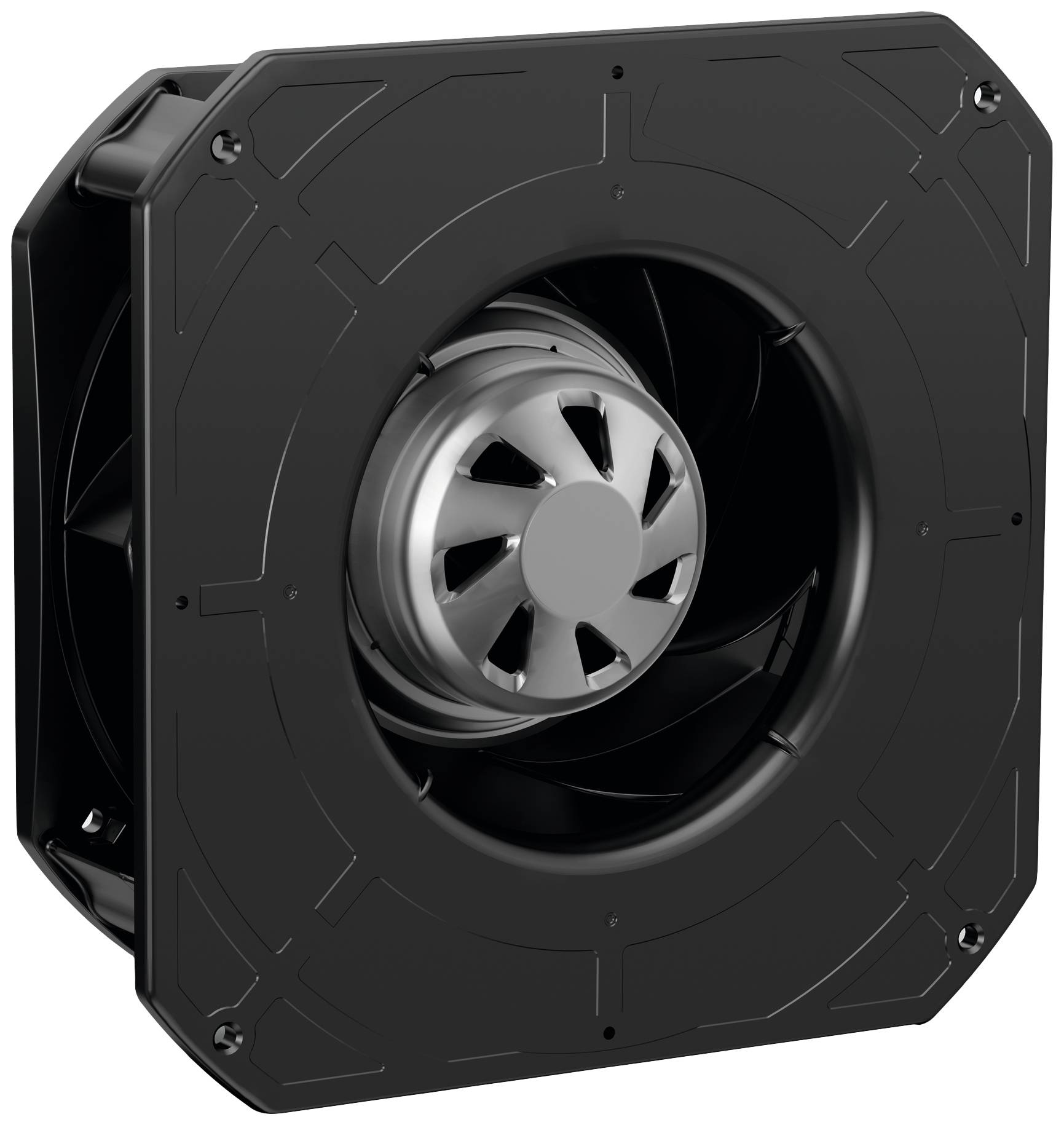

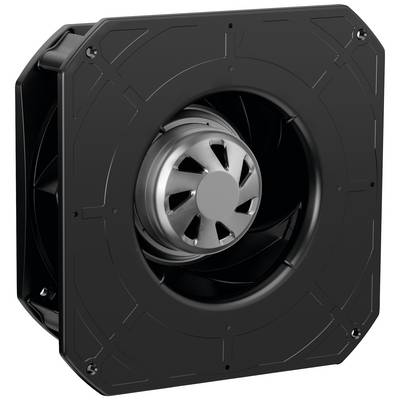

EBM Papst VBH0190RSLES Radial extractor 230 V 550 m³/h
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EC radial module - radial 200-240VAC-50/60Hz
- 200-240VAC-50/60Hz
- 4150rpm, 170W, 1.35A
- Ball bearings, ISO class "B"- IP54
- Electronic Motor Protection
Technical specifications
- Product type
Radial extractor
- Nominal voltage
230 V
- Nominal voltage range
200 - 240 V
170 W
- Rotational speed
4150 U/min
- Air flow rate
550 m³/h
- Min. temperature
-25 °C
- Max. temperature
60 °C
IP54
- Factory colour
Black
- Material
Aluminium (die-cast)
Plastic
- Dim
(L x W x H) 350 x 226 x 226 mm
- Width
226 mm
- Height
226 mm
- Length
350 mm
- Depth
96.1 mm
Documents & Downloads
Datasheet
Datasheet 2900995 EBM Papst VBH0190RSLES Radial extractor 230 V 550 m³/h
User & Safety Instructions
User & Safety Instructions 2900995 EBM Papst VBH0190RSLES Radial extractor 230 V 550 m³/h
Description
Store the device partly as well as fully assembled, dry, weatherproof and vibration-free in the original packaging in a clean environment.
; Protect the device until it is fully installed
Environmental influences and dirt
This text is machine translated.
; Protect the device until it is fully installed
Environmental influences and dirt
This text is machine translated.
Features
- Output 10 VDC, max. 10 mA
- Blocking detection
- Speed output
- Speed control
- Power limitation
- Motor current limitation
- Soft start-up.
- Control input 0-10 VDC / PWM
- Control interface with SELV potential securely isolated from the grid
- Overvoltage detection
- Overtemperature protection Electronic / Motor
- Under voltage identification
- Control input 0-10VDC
- Cable length: 350mm.
- Power cord (PWR) PVC AWG20 - 3x wire end claw
- Control cable (CTRL) PVC AWG22 - 6x wire end clamps
