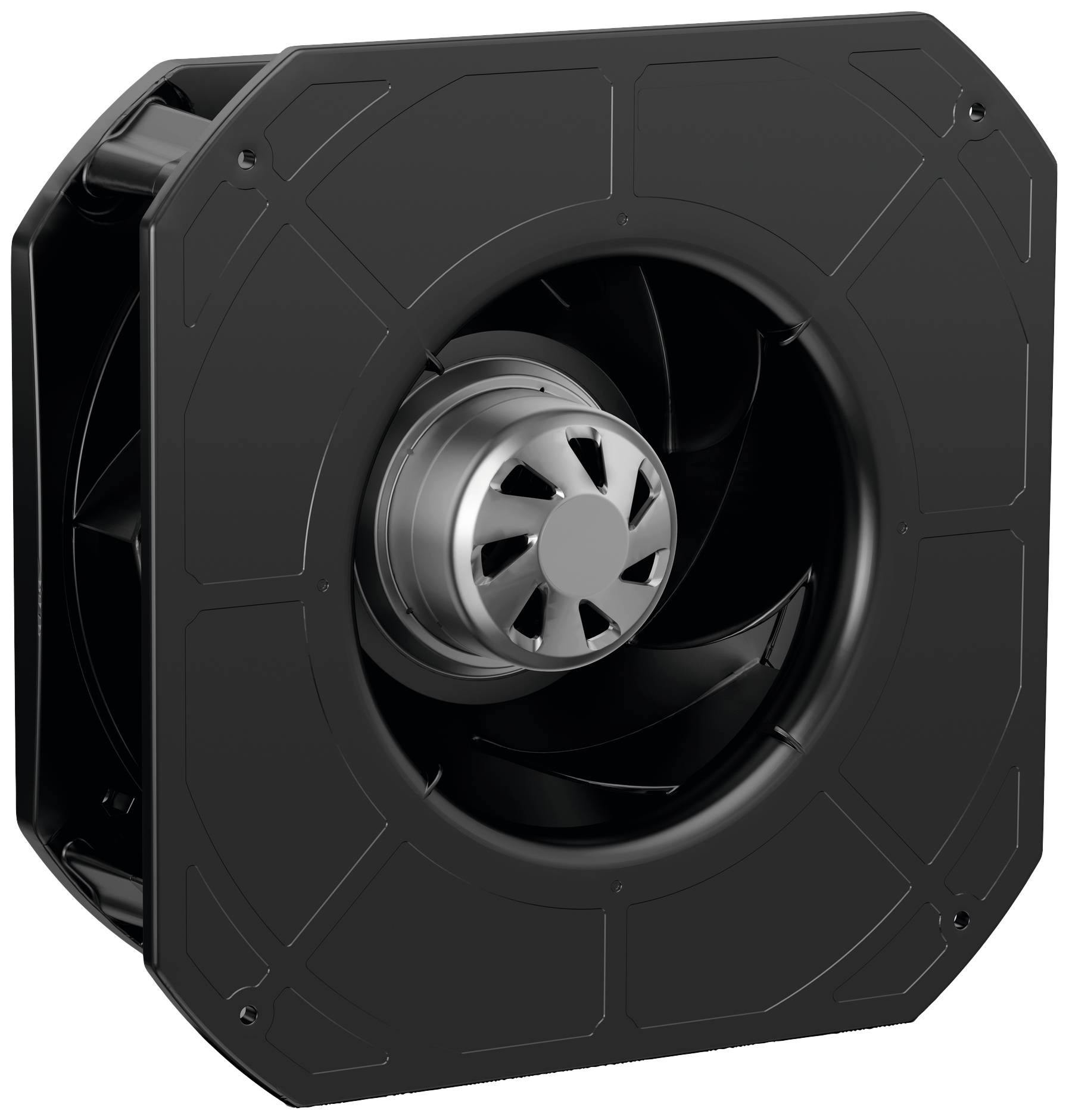

EBM Papst VBH0250RSLFS Radial extractor 230 V 890 m³/h
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EC radial module
- Ball bearings, ISO class "B", IP54
- Electronic Motor Protection
- Control input 0-10VDC
- Cable length 320mm
Technical specifications
- Product type
Radial extractor
- Nominal voltage
230 V
- Nominal voltage range
200 - 240 V
170 W
- Rotational speed
2550 U/min
- Air flow rate
890 m³/h
- Min. temperature
-25 °C
- Max. temperature
60 °C
IP54
- Factory colour
Black
- Material
Aluminium (die-cast)
Plastic
- Weight
2.6 kg
- Dim
(L x W x H) 320 x 300 x 300 mm
- Width
300 mm
- Height
300 mm
- Length
320 mm
- Depth
106.5 mm
Documents & Downloads
Datasheet
Datasheet 2900998 EBM Papst VBH0250RSLFS Radial extractor 230 V 890 m³/h
User & Safety Instructions
User & Safety Instructions 2900998 EBM Papst VBH0250RSLFS Radial extractor 230 V 890 m³/h
Description
Store the device partly as well as fully assembled, dry, weatherproof and vibration-free in the original packaging in a clean environment.
Protect the device from environmental influences and dirt until the final installation is completed.
This text is machine translated.
Protect the device from environmental influences and dirt until the final installation is completed.
This text is machine translated.
Features
- Output 10 VDC, max. 10 mA
- Blocking detection
- Speed output
- Speed control
- Power limitation
- Motor current limitation
- Soft start-up.
- Control input 0-10 VDC / PWM
- Control interface with SELV potential securely isolated from the grid
- Overvoltage detection
- Overtemperature protection Electronic / Motor
- Under voltage identification
- POWER CORD (PWR) PVC AWG20
- 3x wire-end claw
- 2 CONTROL CABLE (CTRL) PVC AWG22
- 6x wire-end clamp
