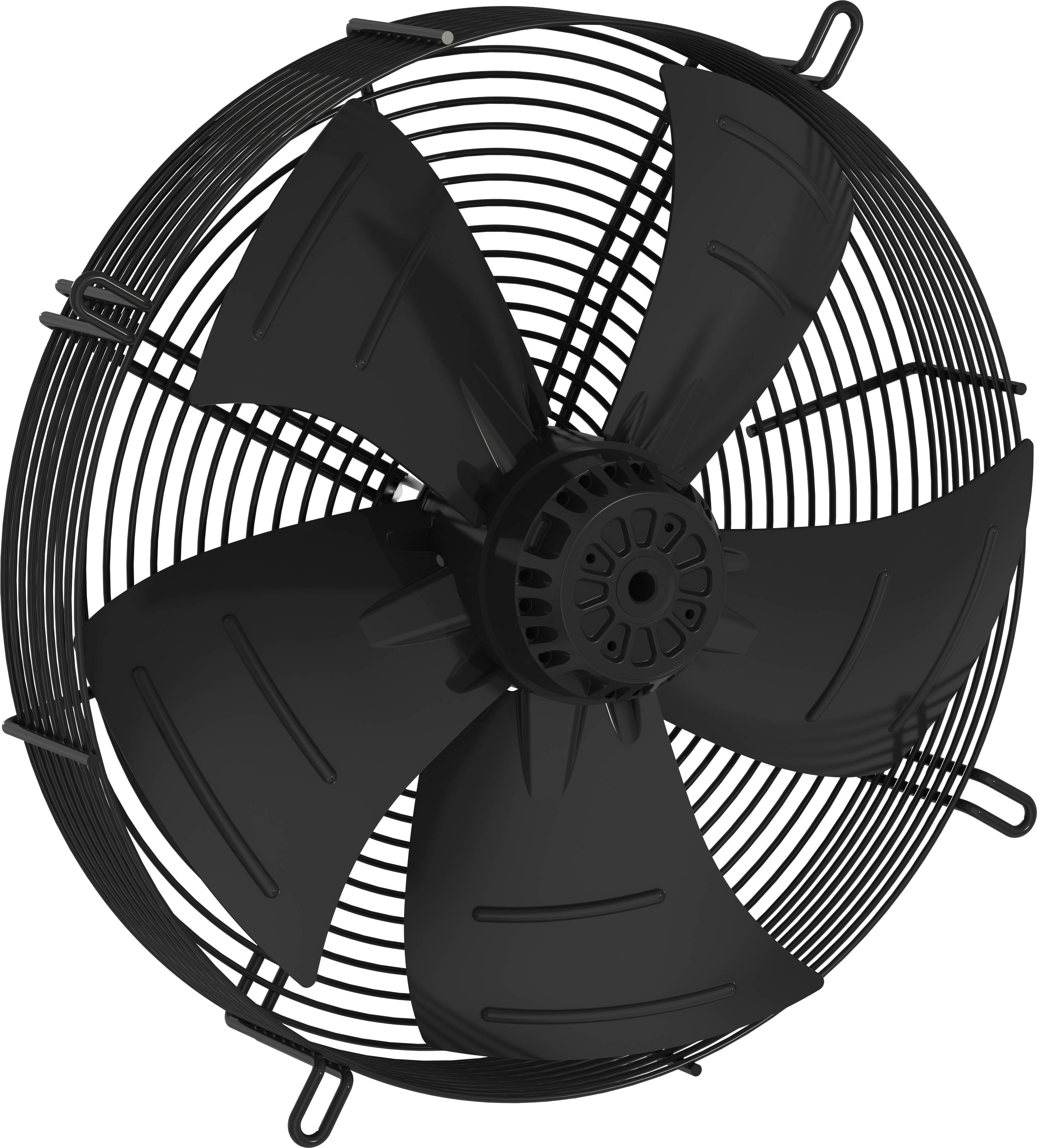

EBM Papst VMA0400X5NKS Axial fan 230 V AC 4610 m³/h (L x W x H) 132 x 489 x 489 mm
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Power
185 W
Type of bearing
Ball bearing
Air flow rate
4610 m³/h
Datasheet (PDF)
Technical specifications
- Motor: AC, 3~ Powered 4-pole
- Motor number: 4
- Motor size 74 mm
- Wheel size 400 mm
- Direction of rotation: Left
- Motor system: External rotor
- Motor type: Asynchronous motor
- Product type
Axial fan
- Type
VMA0400X5NKS
- Nominal voltage
230 V AC
- Min. operating voltage
230 V AC
- Max. operating voltage
400 V AC
- Operating voltage
230 - 400 V AC
- Max. current consumption
0.39 A
185 W
- Type of bearing
Ball bearing
- Rotational speed
1690 U/min
- Noise emission (max.)
72 dBa
- Air flow rate
4610 m³/h
- Cable length
600 mm
- Weight
5870 g
IP44
- Length
132 mm
- Width
489 mm
- Height
489 mm
- Dim
(L x W x H) 132 x 489 x 489 mm
