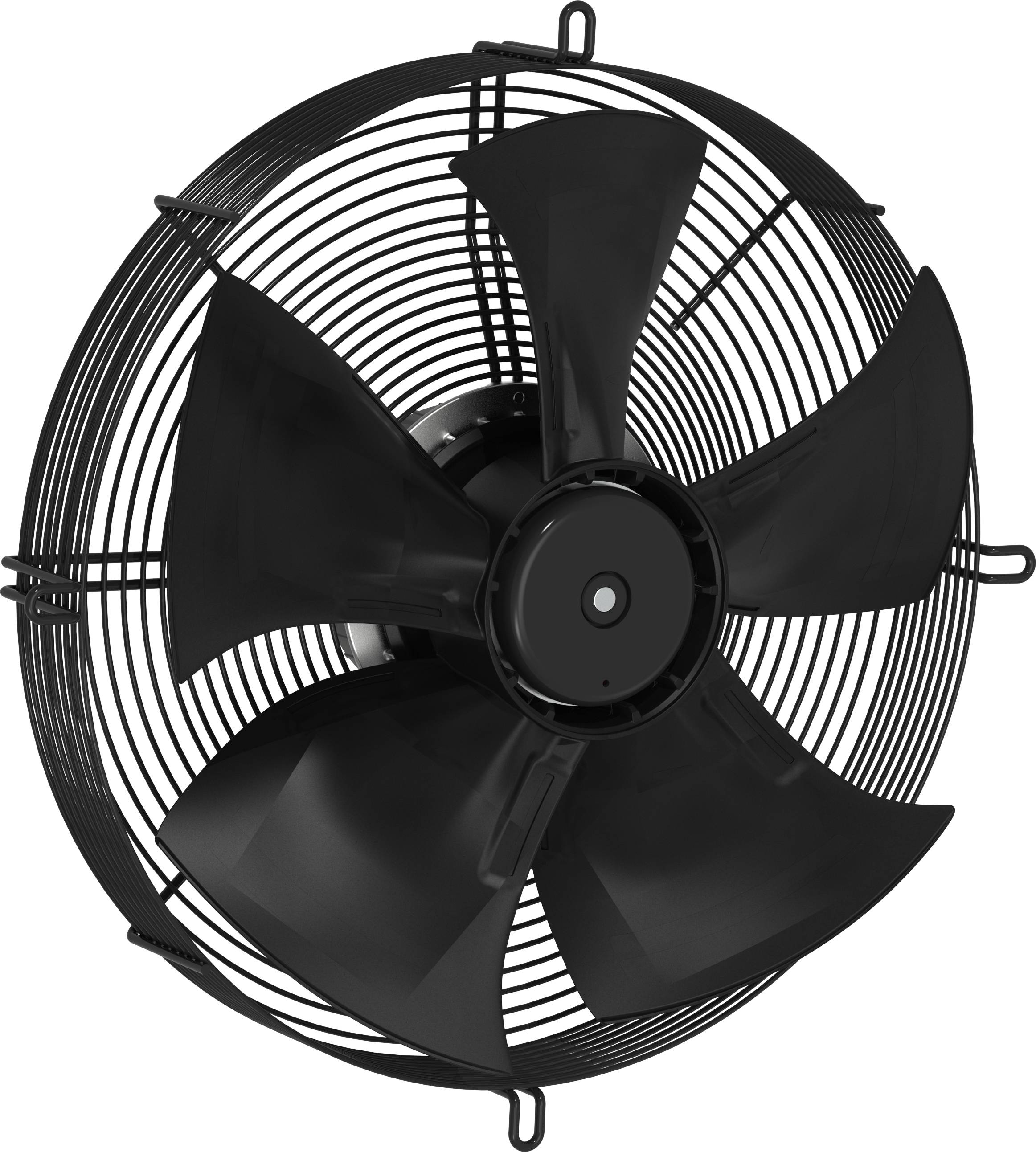

EBM Papst VMA0450HSPKS Axial fan 230 V AC 4700 m³/h (L x W x H) 150 x 541 x 541 mm
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Power
500 W
Type of bearing
Ball bearing
Air flow rate
4700 m³/h
Datasheet (PDF)
Technical specifications
- Motor: EC, 1~ power supply
- Motor number: 10
- Motor size 84 mm
- Wheel size 450 mm
- Direction of rotation: Left
- Motor system: External rotor
- Motor type: Electronic Come. Motor
- Product type
Axial fan
- Type
VMA0450HSPKS
- Nominal voltage
230 V AC
- Min. operating voltage
200 V AC
- Max. operating voltage
277 V AC
- Operating voltage
200 - 277 V AC
- Max. current consumption
2.2 A
500 W
- Type of bearing
Ball bearing
- Rotational speed
1500 U/min
- Air flow rate
4700 m³/h
- Cable length
600 mm
- Weight
6700 g
IP55
- Length
150 mm
- Width
541 mm
- Height
541 mm
- Dim
(L x W x H) 150 x 541 x 541 mm
