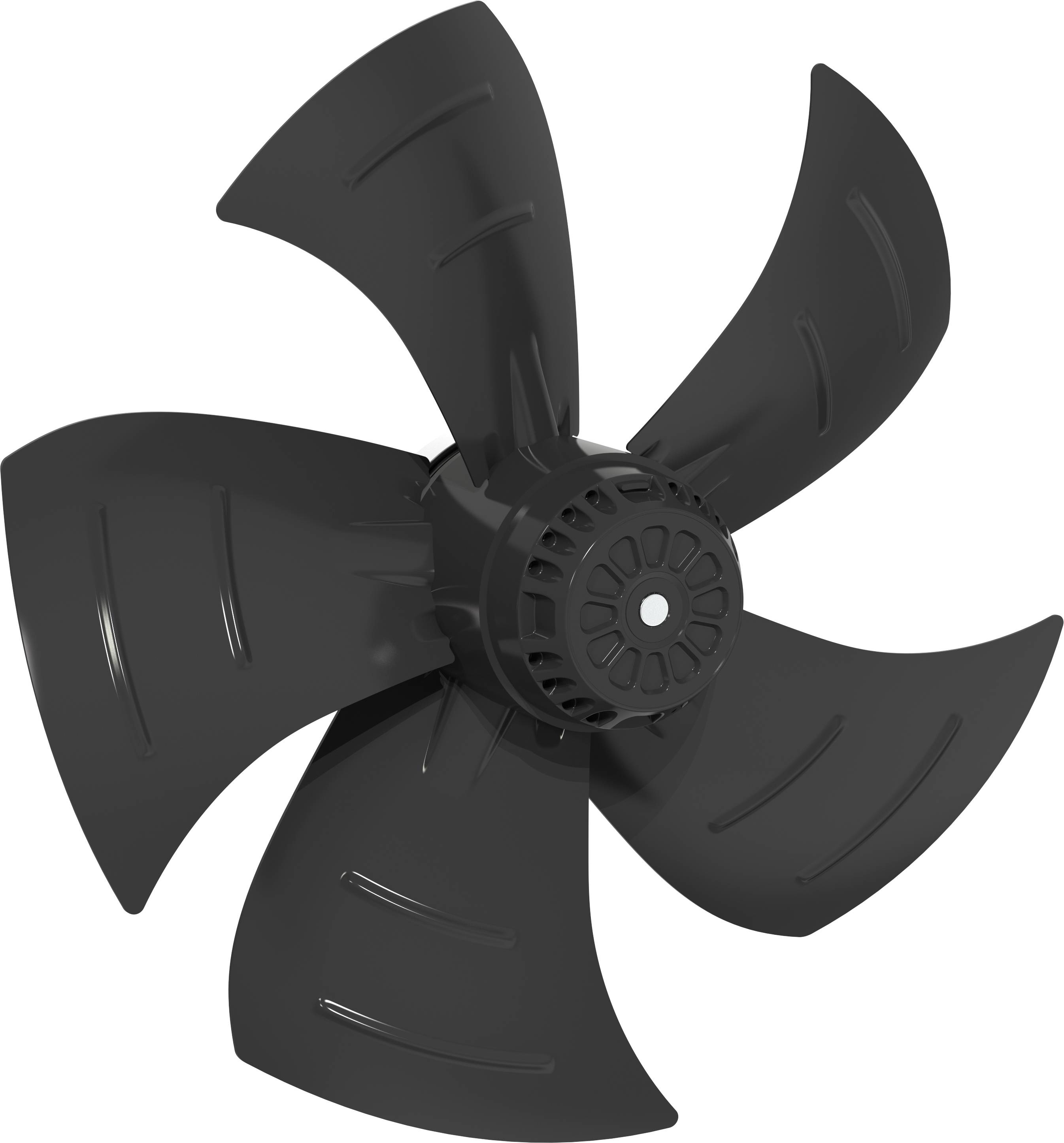

EBM Papst VVY0420X4NLS Axial fan 230 V AC 5630 m³/h (L x W x H) 134 x 418 x 418 mm
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Power
285 W
Type of bearing
Ball bearing
Air flow rate
5630 m³/h
Datasheet (PDF)
Technical specifications
- Motor: AC, 1~ Powered 4-pole
- Motor number: 4
- Motor size 74 mm
- Wheel size 420 mm
- Direction of rotation: Left
- Motor system: External rotor
- Motor type: Asynchronous motor
- Product type
Axial fan
- Type
VVY0420X4NLS
- Nominal voltage
230 V AC
- Max. current consumption
1.25 A
285 W
- Type of bearing
Ball bearing
- Rotational speed
1680 U/min
- Noise emission (max.)
74 dBa
- Air flow rate
5630 m³/h
- Cable length
600 mm
- Weight
4830 g
IP44
- Length
134 mm
- Width
418 mm
- Height
418 mm
- Dim
(L x W x H) 134 x 418 x 418 mm
