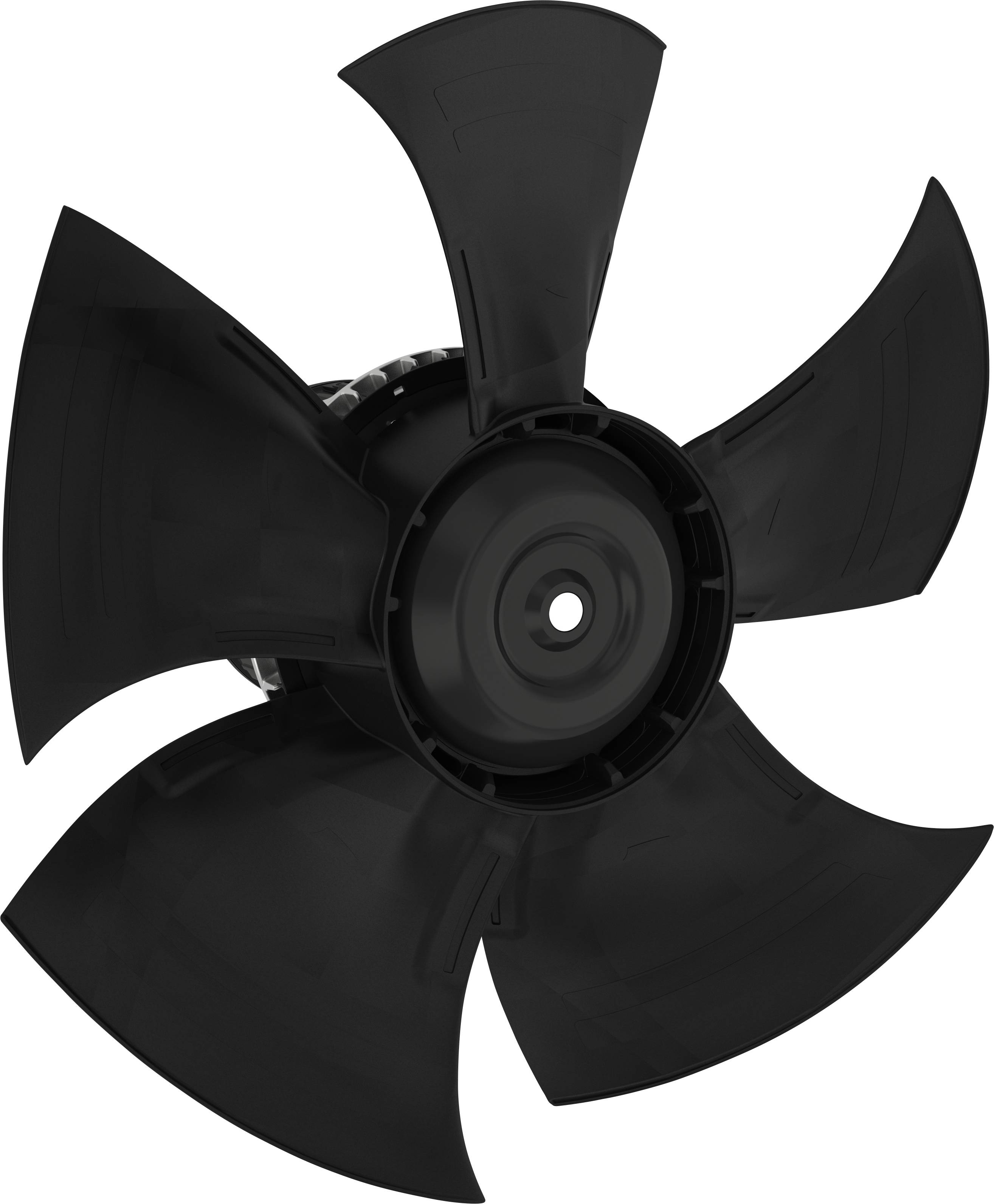

EBM Papst VVY0500HSRHS Axial fan 230 V AC 6050 m³/h (L x W x H) 217 x 497 x 497 mm
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Power
740 W
Type of bearing
Ball bearing
Air flow rate
6050 m³/h
Datasheet (PDF)
Technical specifications
- Motor: EC, 1~ power supply
- Motor number: 10
- Motor size 112 mm
- Wheel size 500 mm
- Direction of rotation: Left
- Motor system: External rotor
- Motor type: Electronic Come. Motor
- Product type
Axial fan
- Type
VVY0500HSRHS
- Nominal voltage
230 V AC
- Min. operating voltage
200 V AC
- Max. operating voltage
277 V AC
- Operating voltage
200 - 277 V AC
- Max. current consumption
3.25 A
740 W
- Type of bearing
Ball bearing
- Rotational speed
1440 U/min
- Air flow rate
6050 m³/h
- Weight
7400 g
IP55
- Length
217 mm
- Width
497 mm
- Height
497 mm
- Dim
(L x W x H) 217 x 497 x 497 mm
