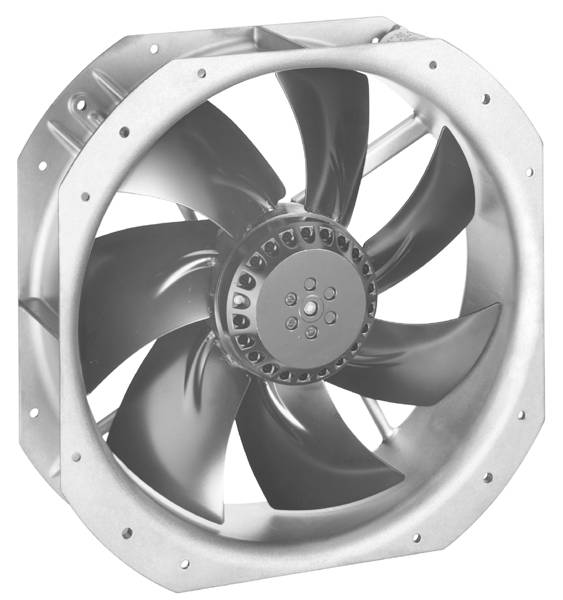

EBM Papst W2E250HL0619 Axial fan 230 V 1515 m³/h (L x W x H) 320 x 320 x 80 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V
Power
115 W
Air flow rate
1515 m³/h
Material
Aluminium (die-cast)
Steel plate
Datasheet (PDF)
Highlights & Details
Compact fan 280x80mm
- 230VAC-50/60Hz
- Conveyor direction "V"
- Ball bearing-IP44-ISO.KL "F" -TW
- Capacitor 3µF connected
Technical specifications
- Product type
Axial fan
- Type
W2E250HL0619
- Nominal voltage
230 V
- Max. current consumption
0.51 A
115 W
- Rotational speed
2450 U/min
- Air flow rate
1515 m³/h
- Factory colour
White
Black
- Material
Aluminium (die-cast)
Steel plate
- Weight
2.76 kg
IP44
- Min. temperature
-25 °C
- Max. temperature
75 °C
- Length
320 mm
- Width
320 mm
- Height
80 mm
- Dim
(L x W x H) 320 x 320 x 80 mm
Documents & Downloads
Datasheet
Datasheet 2900989 EBM Papst W2E250HL0619 Axial fan 230 V 1515 m³/h (L x W x H) 320 x 320 x 80 mm
User & Safety Instructions
User & Safety Instructions 2900989 EBM Papst W2E250HL0619 Axial fan 230 V 1515 m³/h (L x W x H) 320 x 320 x 80 mm
Description
Store the device partly as well as fully assembled, dry, weatherproof and vibration-free in the original packaging in a clean environment.
Protect the device from environmental influences and dirt until the final installation is completed
This text is machine translated.
Protect the device from environmental influences and dirt until the final installation is completed
This text is machine translated.
Features
- Electrical connection via terminal strip
- UL, CSA, CCC APPROVAL
