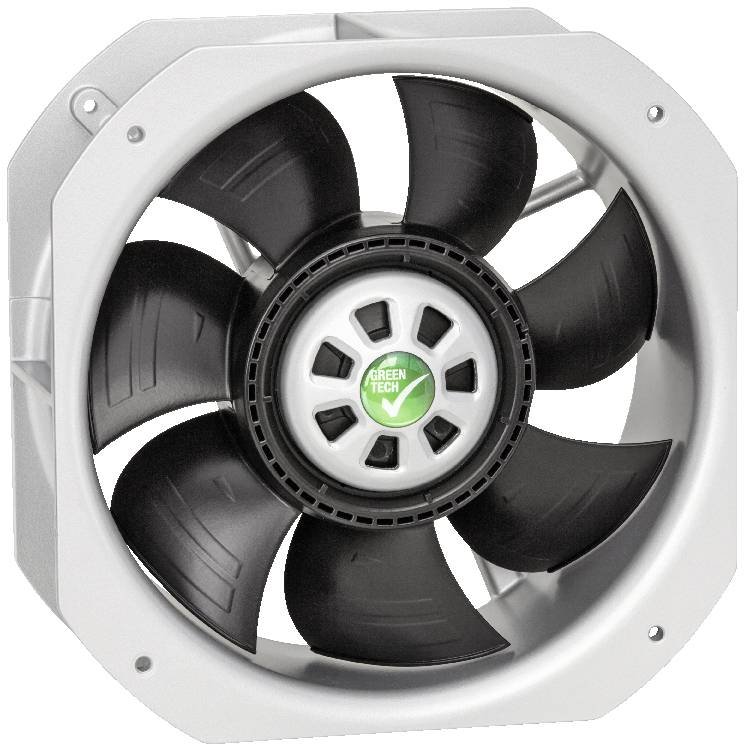

EBM Papst W3G200-HD01-03 Axial fan 230 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EC compact fan 200-240V 50/60Hz
- Conveyor direction "V"
- Ball bearing, IP54, ISO.-CL. B
- Stator completely cast
- Speed monitoring and control input
Technical specifications
- Product type
Axial fan
- Nominal voltage
230 V
- Nominal voltage range
200 - 240 V
54 W
- Rotational speed
2900 U/min
- Min. temperature
-25 °C
- Max. temperature
60 °C
IP54
- Factory colour
White
Black
- Material
Plastic
- Weight
1.7 kg
- Dim
(W x H x D) 260 x 260 x 80 mm
- Width
260 mm
- Height
260 mm
- Depth
80 mm
Documents & Downloads
Datasheet
Datasheet 2901002 EBM Papst W3G200-HD01-03 Axial fan 230 V
User & Safety Instructions
User & Safety Instructions 2901002 EBM Papst W3G200-HD01-03 Axial fan 230 V
Description
Store the device partly as well as fully assembled, dry, weatherproof and vibration-free in the original packaging in a clean environment.
Protect the device from environmental influences and dirt until the final installation is completed
This text is machine translated.
Protect the device from environmental influences and dirt until the final installation is completed
This text is machine translated.
Features
- Built-in connecting terminals
- UL and CSA approved
- Output 10 VDC, max. 1.1 mA
- Speed output
- Power limitation
- Motor current limitation
- Soft start-up.
- Control input 0-10 VDC / PWM
- Control interface with SELV potential securely isolated from the grid
- Overvoltage detection
- Overtemperature protection Electronic / Motor
- Under voltage identification
