A transparent, corrugated tube with red markings along the top edge, on a white background.

Image similar

A transparent, corrugated tube with red markings along the top edge, on a white background.

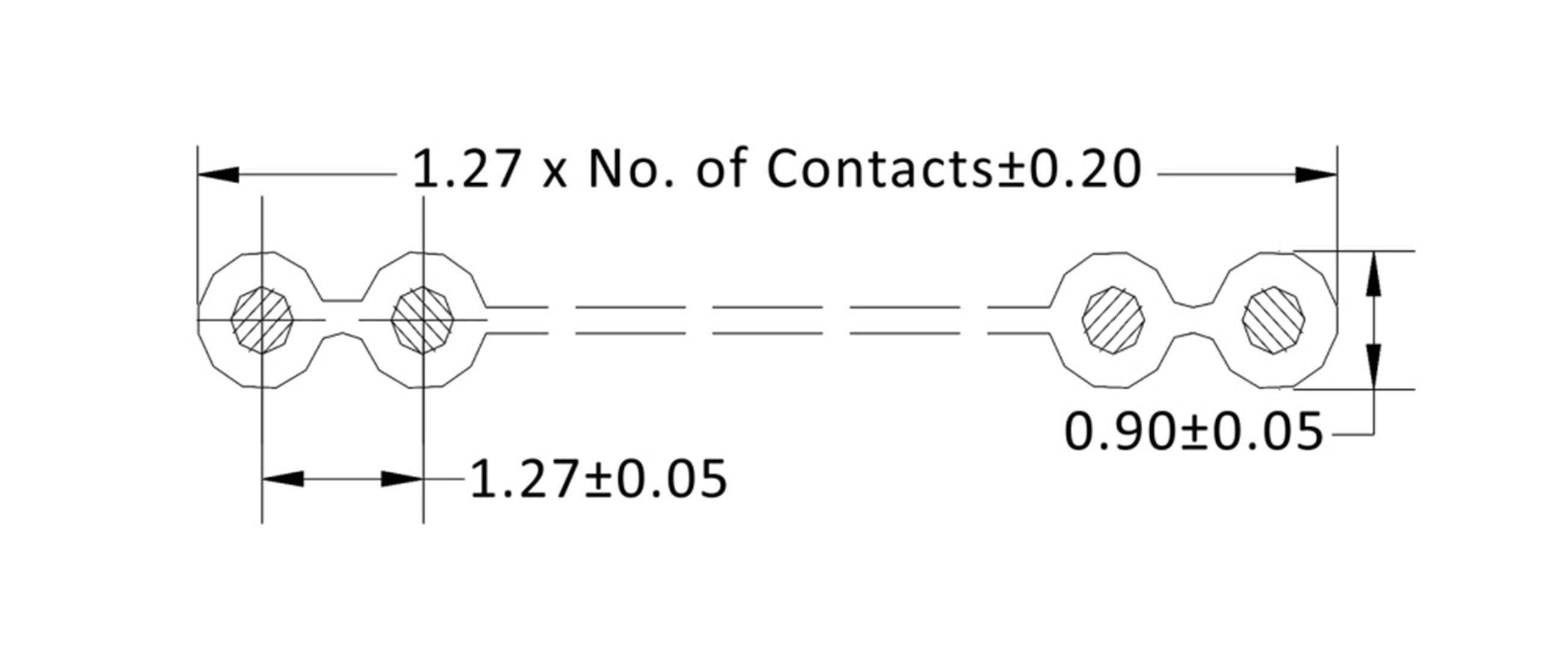

Technical Drawing: Double-line representation of a connector with dimensions 1.27 mm x Number of Contacts +0.20 mm and 0.90 mm ±0.05 mm.

1/2

Image similar

Product type

Ribbon cable

CS

1.27 mm

No. of leads

40 x

Cross section (each core)

0.08 mm²

Content

30.50 m

Datasheet (PDF)

English

econ connect

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (1 m = € 1.71)

€ 52.09

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Product type: Ribbon cable

CS: 1.27 mm

No. of leads: 40 x

Cross section (each core): 0.08 mm²

Cross section: 40 x 0.08 mm²

Height: 0.90 mm

Factory colour: Grey

Content: 30.50 m

Nominal voltage: 300 V

Packaged: Yes

: 28

Sold per metre: No

Insulation material: Polyvinyl chloride

Core layout: 7 x 0.125 mm

Max. temperature range (fixed installation): +105 °C

Manufacturer part #: 28AWG40GR

Type: 28AWG40GR

Max. length sold by the metre: 30.5 m

Documents & Downloads

Datasheet

English

Datasheet 1656434 econ connect 28AWG40GR Ribbon cable Contact spacing: 1.27 mm 40 x 0.08 mm² Grey 30.50 m
