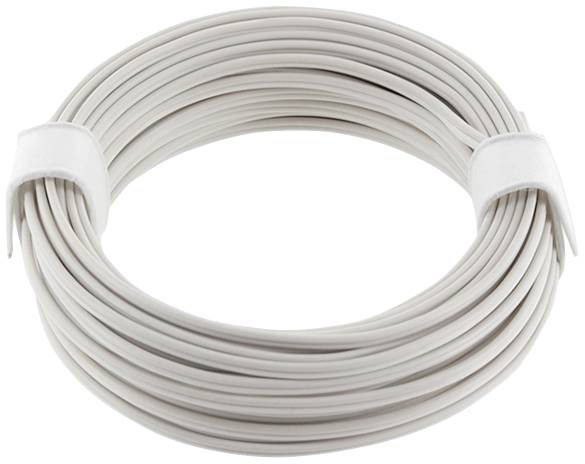

econ connect KZL2X008WS5 Strand 2 x 0.08 mm² White 5 m
EAN:
Part number:
Item no:
Product type
Strand
No. of leads
2 x
Cross section (each core)
0.08 mm²
Cable features
Flat
Flexible
Cross section
2 x 0.08 mm²
Datasheet (PDF)
Quantity (Set(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 0.72
€ 3.61
10
1 M = € 0.67
€ 3.34
25
1 M = € 0.65
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 0.72)
€ 3.61
plus VAT.
14-day return policy included
Technical specifications
- Product type
Strand
- No. of leads
2 x
- Cross section (each core)
0.08 mm²
- Cross section
2 x 0.08 mm²
- Cable features
Flat
Flexible
- Width
1.7 mm
- Height
0.8 mm
- Factory colour
White
- Content
5 m
- Nominal voltage
100 V
- Sold per metre
No
- Halogen-free
No
- Manufacturer part #
KZL2X008WS5
- Insulation material
PVC
- Core layout
2 x 10 x 0,1 mm
- Material (details)
Copper
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
85 °C
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
85 °C
- Max. length sold by the metre
5 m
- Type
KZL2X0,08/WS
