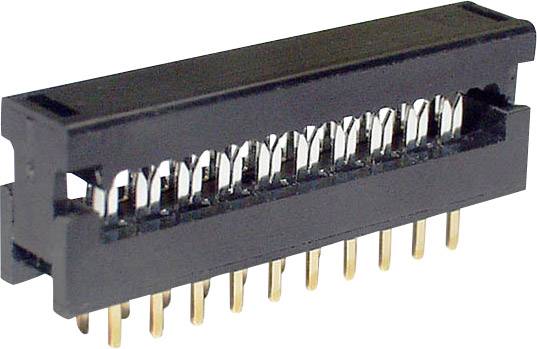

econ connect LPV25S26 Edge connector (sockets) Total number of pins 26 No. of rows 2 1 pc(s)
EAN:
Part number:
Item no:
Product type
Edge connector (sockets)
Total no. of pins
26
Connector type
PCB connector
CS
2.54 mm
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.71
15
8% = € 0.06
€ 0.65
25
11% = € 0.08
€ 0.63
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 0.71 / piece)
€ 3.55
plus VAT.
14-day return policy included
Highlights & Details
Pcb plug connector
- No. of rows 2
- Industrial goods No
- Content 1 pc(s)
Our service for you
Technical specifications
- Product type
Edge connector (sockets)
- Total no. of pins
26
- Connector type
PCB connector
- Features
+ ribbon cable outlet
- Connector orientation
Perpendicular (to the PCB)
- No. of rows
2
- CS
2.54 mm
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Pins per row
13
- Connection
Solder pins
- Factory colour
Black
- Case material
PBT
- Manufacturer part #
LPV25S26
- Content
1 pc(s)
- Contact material
Copper alloy
- Type
LPV25S26
- Contact resistance
20 mΩ
- Industrial packaging
No
- Number of pins
26
- RoHS-compliant
Yes
- Contact surface
Gold plated
- Temperature range
Pin length °C
Documents & Downloads
Datasheet
Datasheet 1400955 econ connect LPV25S26 Edge connector (sockets) Total number of pins 26 No. of rows 2 1 pc(s)
