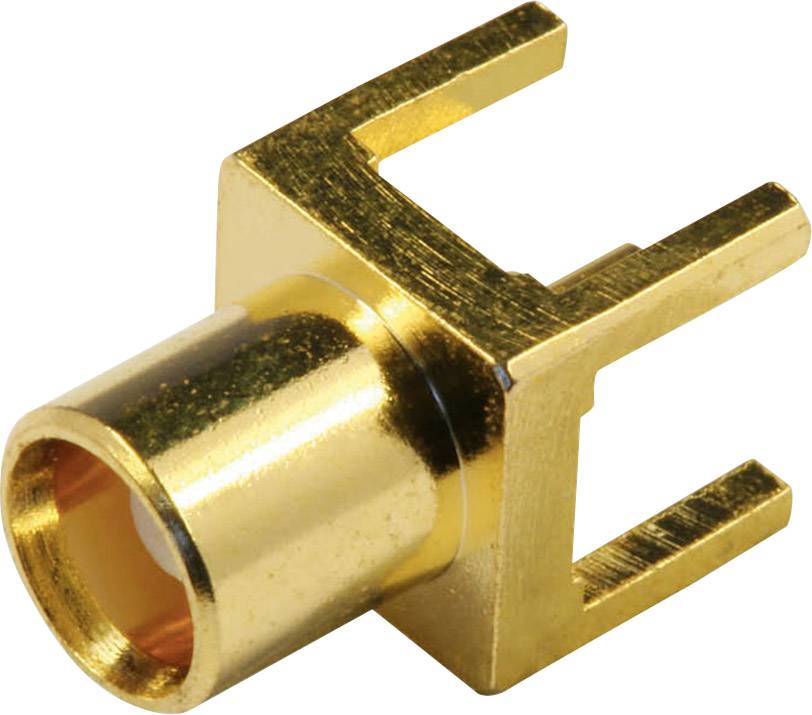

econ connect MCX7FG5 MCX7FG5 MCX connector Socket, straight 50 Ω 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
MCX connector
Connector type
Socket, straight
Impedance
50 Ω
Connection
Solder pins
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 3.61 / piece)
€ 3.61
plus VAT.
14 days return policy included
Highlights & Details
MCX connector
- The plug socket - name, according to the shape of the inner conductor defined.
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
MCX connector
- Connector type
Socket, straight
- Impedance
50 Ω
- Connection
Solder pins
- Content
1 pc(s)
- Case material
Brass gold plated
- Manufacturer part #
MCX7FG5
- Insulation resistance
5000 MOHM
- Insulation material
PTFE
- Contact material
Brass gold plated
- RoHS-compliant
Yes
- Type
MCX7FG5
- Seal type
Push-Pull
Documents & Downloads
Datasheet
Datasheet 1311377 econ connect MCX7FG5 MCX7FG5 MCX connector Socket, straight 50 Ω 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1311377 econ connect MCX7FG5 MCX7FG5 MCX connector Socket, straight 50 Ω 1 pc(s) Piece
Description
MCX-Plug connectors are small coaxial Plug connectors with Snap closure for Frequencies up to 6 GHz. Areas of Application: GPS Systems, WLAN, Fixed line and mobile Communications.
