Buy econ connect MPL8/8RG econ connect MPL8/8RG N/A MPL8/8RG Plug, straight No. of pins (RJ) 8P8C 1 pc(s) MPL8/8RG Plug, str

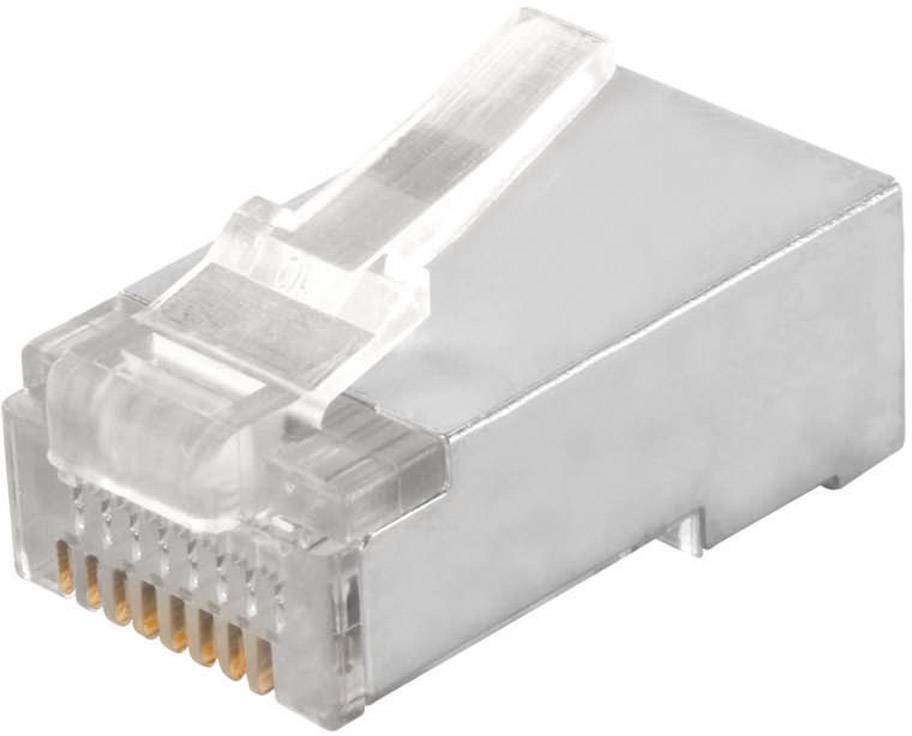

A translucent RJ45 plug, used for Ethernet network connections, with visible gold-plated contact pins.

Image similar

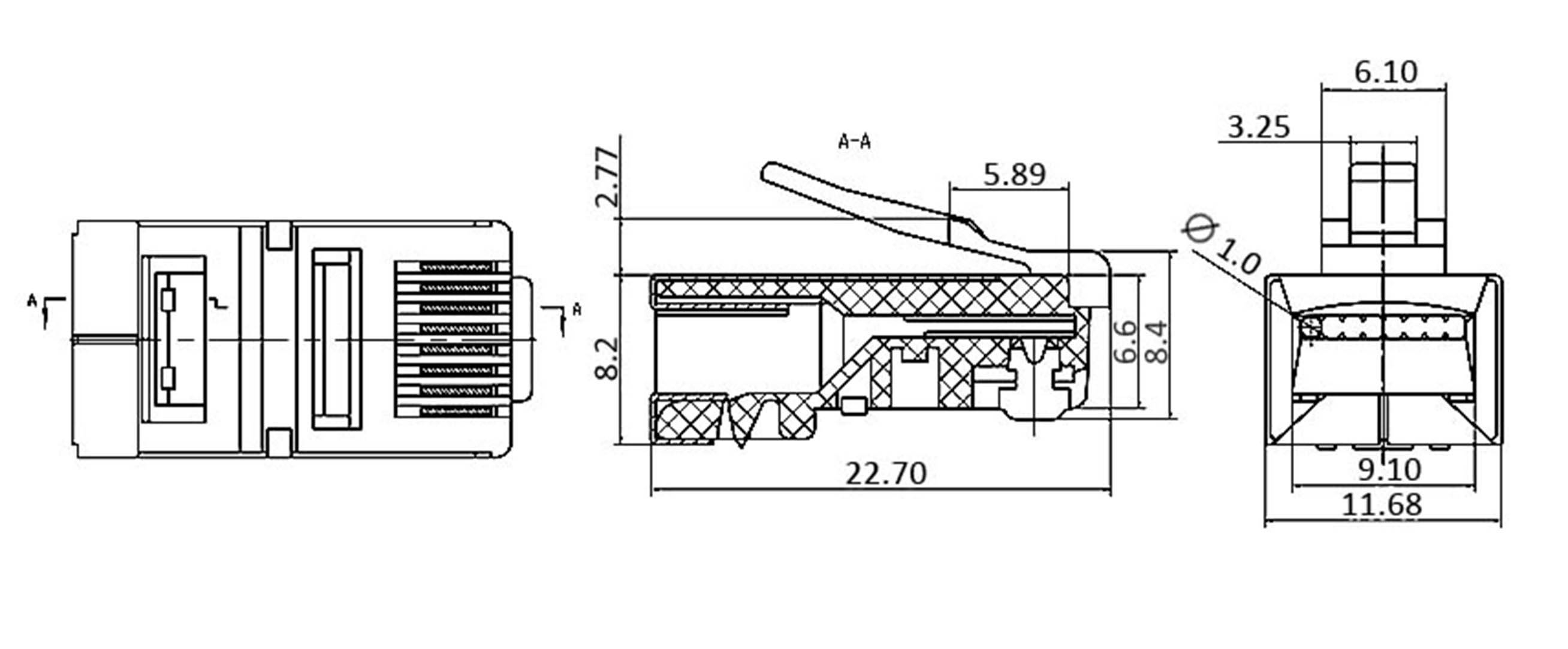

Technical drawing of an RJ45 plug with dimensions in millimetres. Shows side view, top view and cross-section with numerous dimensional annotations.

1/2

Image similar

Product type

RJ45 connector

Connector type

Plug, straight

No. of pins

8P8C

Connector standard

RJ45

Type

MPL8/8RG

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

2114 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 10

Total (€ 0.33 / piece)

€ 0.39

-15 %

€ 3.30

plus VAT.

Report legal concerns

Highlights & Details

econ connect MPL8/8RG N/A MPL8/8RG Plug, straight No. of pins (RJ) 8P8C 1 pc(s)

Our service for you

Technical specifications

Type: MPL8/8RG

Product type: RJ45 connector

Connector type: Plug, straight

No. of pins: 8P8C

Connector standard: RJ45

AWG max.: 26

AWG (min.): 28

Connection: Cut & Clip

Content: 1 pc(s)

Contact material: Copper alloy gold plated

RoHS-compliant: Yes

Max. temperature: +85 °C

Min. temperature: -40 °C

Seal type: Snap-in

Mating cycles: 750

Variants(All information is without VAT, plus shipping costs)

Connector standard

Connector type

Specification

Product type

No. of pins

econ connect MEB4/4PST econ connect MEB4/4PST N/A MEB4/4PST Socket, vertical vertical No. of pins (RJ) 4P4C Black 1 pc(s) MEB4/4PST Socket, vertical vertical No. of pins (RJ) 4P4C Black 1 pc(s)

Item no:1303468

RJ10

Socket, vertical vertical

CAT 3

RJ45 connector

4P4C

econ connect MEB6/6PST Modular mounted socket MEB6/6PST Socket, vertical vertical No. of pins (RJ) 6P6C Black 1 pc(s)

Item no:1303469

RJ12

Socket, vertical vertical

CAT 3

RJ45 connector

6P6C

econ connect MEB8/8PST econ connect MEB8/8PST N/A MEB8/8PST Socket, vertical vertical No. of pins (RJ) 8P8C Black 1 pc(s) MEB8/8PST Socket, vertical vertical No. of pins (RJ) 8P8C Black 1 pc(s)

Item no:1303470

RJ45

Socket, vertical vertical

CAT 3

RJ45 connector

8P8C

econ connect MEBE66D econ connect MEBE66D N/A MEBE66D Socket, horizontal mount No. of pins (RJ) 6P6C Black 1 pc(s) MEBE66D Socket, horizontal mount No. of pins (RJ) 6P6C Black 1 pc(s)

Item no:1303471

RJ12

Socket, horizontal mount

CAT 3

RJ45 connector

6P6C

econ connect 3012S02 Multi-port 2x RJ45 3012S02 Socket, horizontal mount No. of pins (RJ) 8P8C Metal 1 pc(s)

Item no:1303817

RJ45

Socket, horizontal mount

CAT 3

RJ45 connector

8P8C

econ connect 3022S2 Double-decker multi-port 4x RJ45 3022S2 Socket, horizontal mount No. of pins (RJ) 8P8C Metal 1 pc(s)

Item no:1303818

RJ45

Socket, horizontal mount

CAT 3

RJ45 connector

8P8C

econ connect 3022S4 econ connect 3022S4 N/A 3022S4 Socket, horizontal mount No. of pins (RJ) 8P8C Metal 1 pc(s) 3022S4 Socket, horizontal mount No. of pins (RJ) 8P8C Metal 1 pc(s)

Item no:1303819

RJ45

Socket, horizontal mount

CAT 3

RJ45 connector

8P8C

econ connect M8L1G3 Modular mounted socket M8L1G3 Socket, horizontal mount No. of pins (RJ) 8P8C Metal 1 pc(s)

Item no:1303838

RJ45

Socket, horizontal mount

CAT 3

RJ45 connector

8P8C

econ connect KSM8SW econ connect KSM8SW N/A KSM8SW Bend relief No. of pins (RJ) 8P8C Black 1 pc(s) KSM8SW Bend relief No. of pins (RJ) 8P8C Black 1 pc(s)
