econ connect Pin strip (standard) No. of rows: 1 Pins per row: 3 CSV3G/3 1 pc(s) Bulk
Part number:
Item no:
Datasheet (PDF)
10 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
30
-
€ 0.09
90
11% = € 0.01
€ 0.08
150
22% = € 0.02
€ 0.07
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 30
Total (€ 0.09 / piece)
€
Only 10 Piece(s) available
Highlights & Details

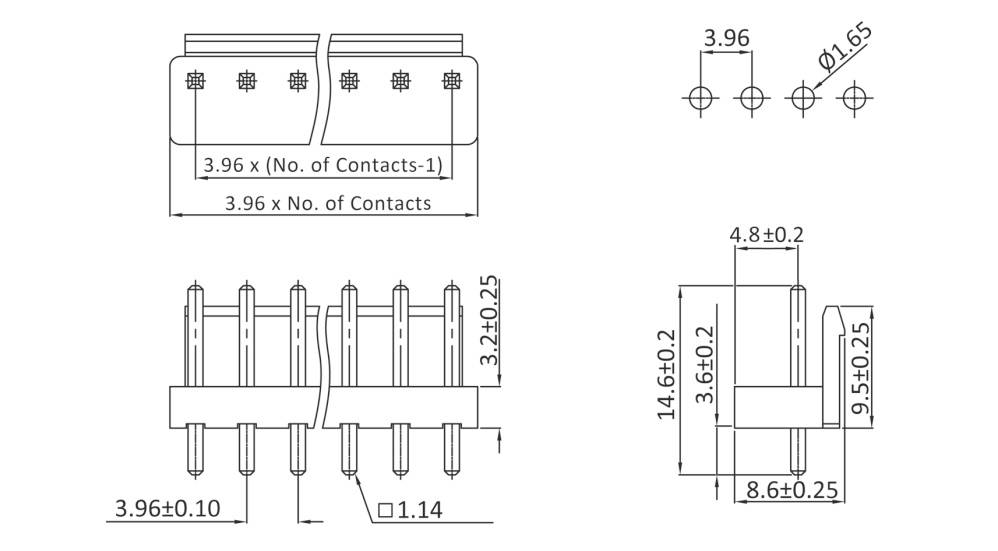

Pin strip/connector 1x3P STR. RM3.96
- Content 1 pc(s)
- No. of rows 1
- Pins per row 3
Technical specifications
- Packaging type
Bulk
- Connector type
Pin strip, straight
- No. of rows
1
- Pins per row
3
- Total number of pins
3
- CS
3.96 mm
- Connection
Solder pins
- Factory colour
White
- Pin shape
Square
- Nominal voltage
250 V
- Nominal current
7 A
- Nominal current - rounded value
7 A
- Contact surface
Tin plated
- Contact material
Brass
- Case material
Nylon (NL)
- Pin length (receptacle)
7.8 mm
- Pin length (PCB)
3.6 mm
- Separable
No
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
CSV3G/3
- Content
1 pc(s)
- Type
CSV3G/3
- Max. temperature
85 °C
- Min. temperature
-25 °C
- Product type
Pin strip (standard)
Documents & Downloads
Datasheet
Datasheet 2860070 econ connect Pin strip (standard) No. of rows: 1 Pins per row: 3 CSV3G/3 1 pc(s) Bulk
Description
Scope of delivery
- Content: 1 pcs.
- This text is machine translated.
