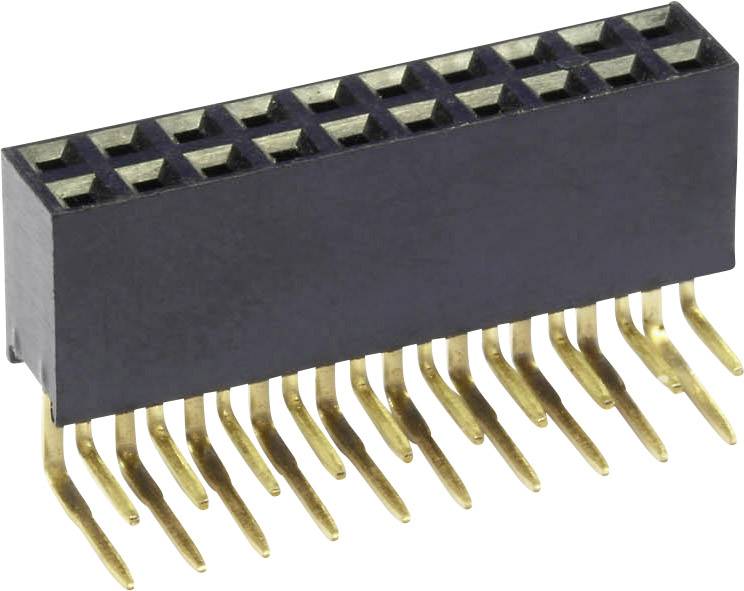

econ connect SIL socket (standard) No. of rows: 2 Pins per row: 5 BL5/2W8 1 pc(s)
EAN:
Part number:
Item no:
Connector type
Power strip, right angle
Product type
SIL socket (standard)
No. of rows
2
Total number of pins
10
CS
2.54 mm
Datasheet (PDF)
Total (€ 0.12 / piece)
€ 1.80
plus VAT.
14-day return policy included
Highlights & Details
Socket strip angled RM 2.54 mm
- Content 1 pc(s)
- No. of rows 2
- Pins per row 5
Our service for you
Technical specifications
- Connector type
Power strip, right angle
- Product type
SIL socket (standard)
- No. of rows
2
- Pins per row
5
- Total number of pins
10
- CS
2.54 mm
- Connection
Print
- Factory colour
Black
- Pin shape
Rectangular
- Nominal voltage
500 V AC
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Contact surface
Gold plated
- Contact material
Copper alloy
- Case material
PBT
- Pin length (PCB)
3.50 mm
- Separable
No

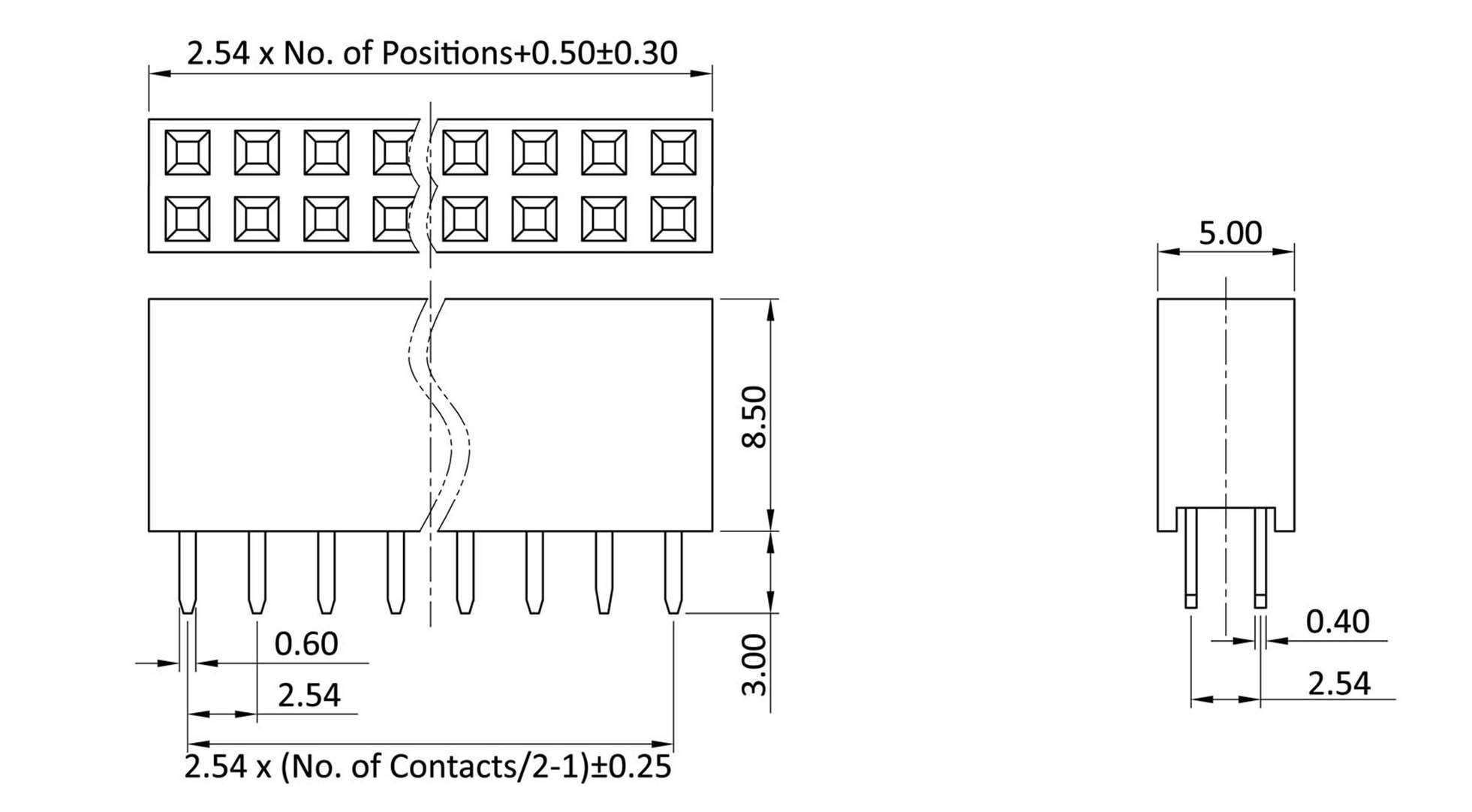

- Dim
(L x W x H) 12.70 x 12.60 x 8.50 mm
- Connector orientation
Parallel (to the PCB)
- Manufacturer part #
BL5/2W8
- Industrial packaging
No
- Content
1 pc(s)
- Width
12.60 mm
- Height
8.50 mm
- Length
12.70 mm
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
BL5/2W8
