Buy econ connect SIL socket (precision) No. of rows: 1 Pins per row: 40 SCS40AA3 1 pc(s)

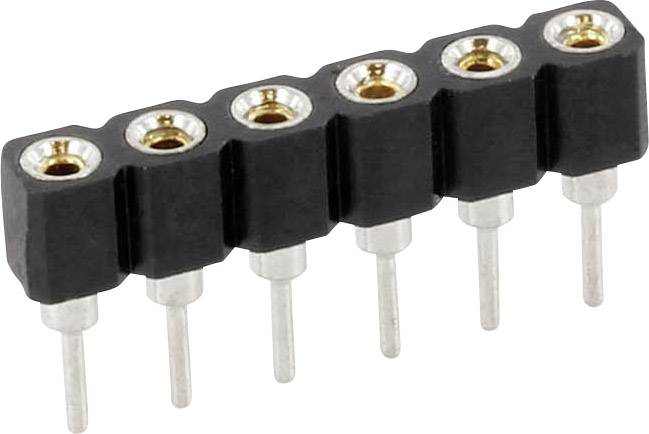

A black pin header with six metal pins. It serves to provide electrical connection in electronic devices.

Image similar

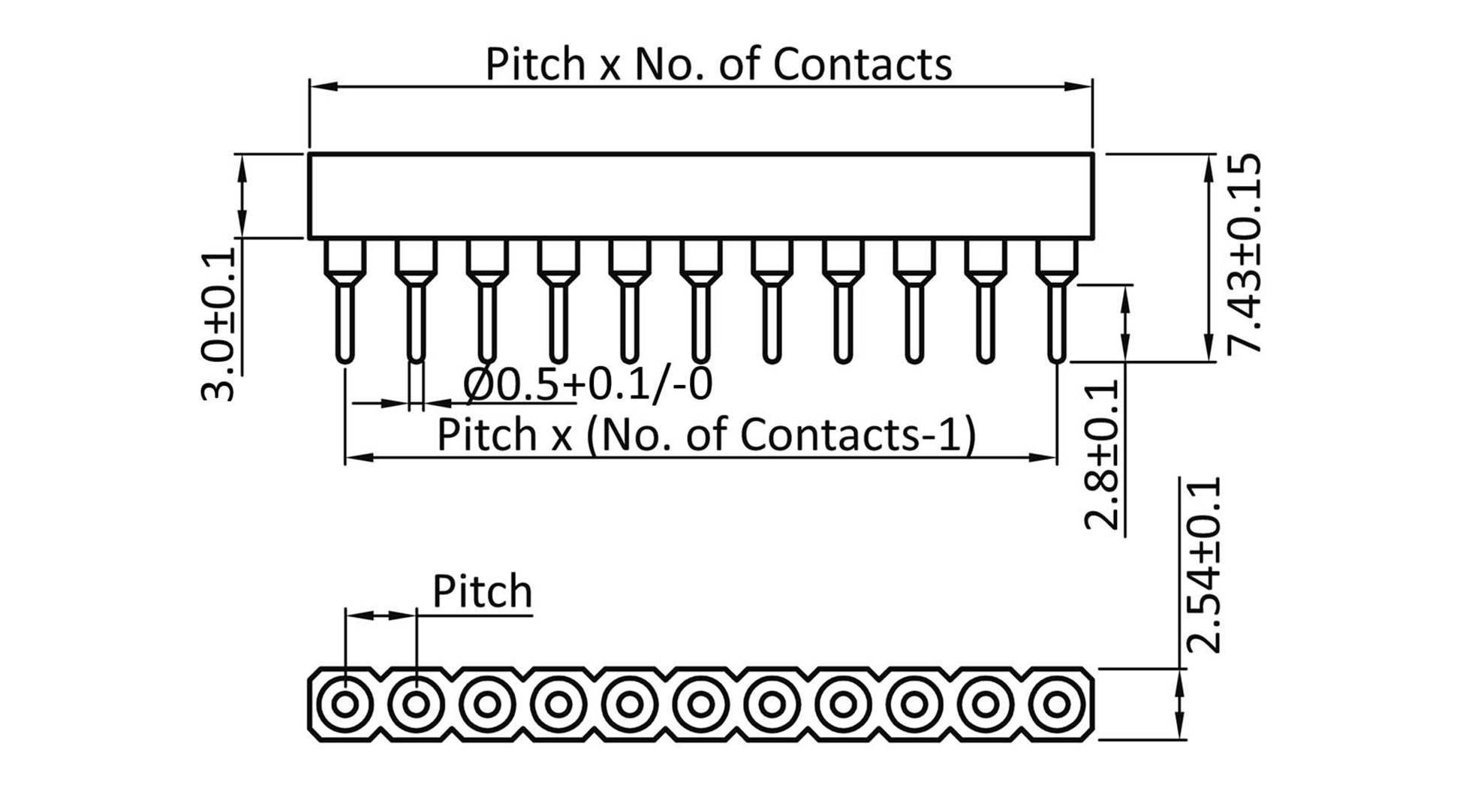

Figure of an IC socket with dimensions. Top: Width with 'Pitch x No. of Contacts'. Bottom: Contact density with '2.54±0.1'.

1/2

Image similar

Connector type

Power strip, straight

Product type

SIL socket (precision)

No. of rows

Total number of pins

2.54 mm

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

423 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.34 / piece)

€ 2.34

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Socket strip series SCS RM 2.54 mm

Content 1 pc(s)
No. of rows 1
Pins per row 40

Our service for you

Technical specifications

Connector type: Power strip, straight

Product type: SIL socket (precision)

No. of rows: 1

Pins per row: 40

Total number of pins: 40

CS: 2.54 mm

Connection: Print

Factory colour: Black

Pin shape: Circular

Nominal voltage: 60 V

Nominal current: 3 A

Nominal current - rounded value: 3 A

Contact surface: Tin plated

Contact material: Copper alloy

Case material: Polyester

Pin Ø: 0.60 mm

Pin length (PCB): 2.80 mm

Separable: No

Dim: (L x W x H) 101.6 x 7.43 x 2.54 mm

Connector orientation: Perpendicular (to the PCB)

Manufacturer part #: SCS40AA3

Industrial packaging: No

Content: 1 pc(s)

Width: 7.43 mm

Height: 2.54 mm

Length: 101.6 mm

RoHS-compliant: Yes

Max. temperature: +105 °C

Min. temperature: -40 °C

Type: SCS40AA3

Documents & Downloads

Datasheet

Datasheet 1311447 econ connect SIL socket (precision) No. of rows: 1 Pins per row: 40 SCS40AA3 1 pc(s)
