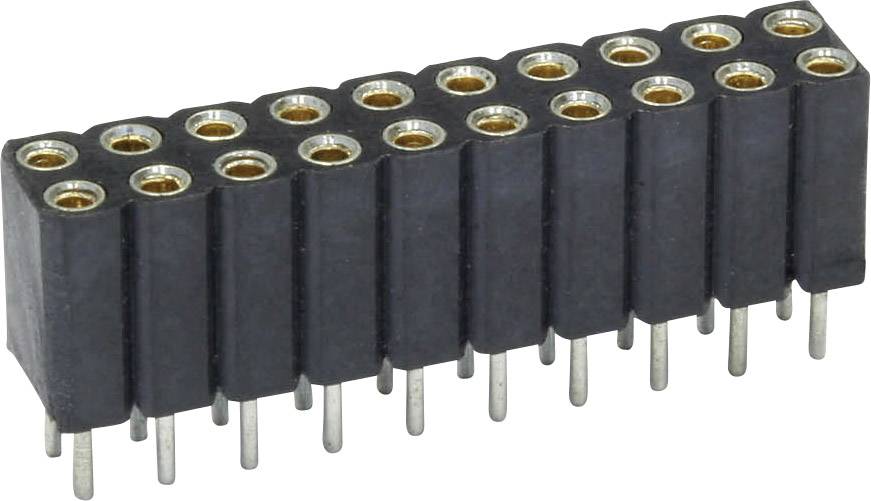

Image similar
econ connect SIL socket (precision) No. of rows: 2 Pins per row: 4 MP70D8 1 pc(s)
EAN:
Part number:
Item no:
Connector type
Power strip, straight
Product type
SIL socket (precision)
No. of rows
2
Total number of pins
8
CS
2.54 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 0.78
9
8% = € 0.06
€ 0.72
15
10% = € 0.08
€ 0.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 0.78 / piece)
€ 2.34
plus VAT.
14-day return policy included
Highlights & Details
Socket terminal strip RM 2.54 mm
- Content 1 pc(s)
- No. of rows 2
- Pins per row 4
Our service for you
Technical specifications
- Connector type
Power strip, straight
- Product type
SIL socket (precision)
- No. of rows
2
- Pins per row
4
- Total number of pins
8
- CS
2.54 mm
- Connection
Print
- Factory colour
Black
- Pin shape
Circular
- Nominal voltage
60 V
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Tin plated
- Contact material
Copper alloy
- Case material
PPS
- Pin Ø
0.60 mm
- Pin length (PCB)
3 mm
- Separable
No

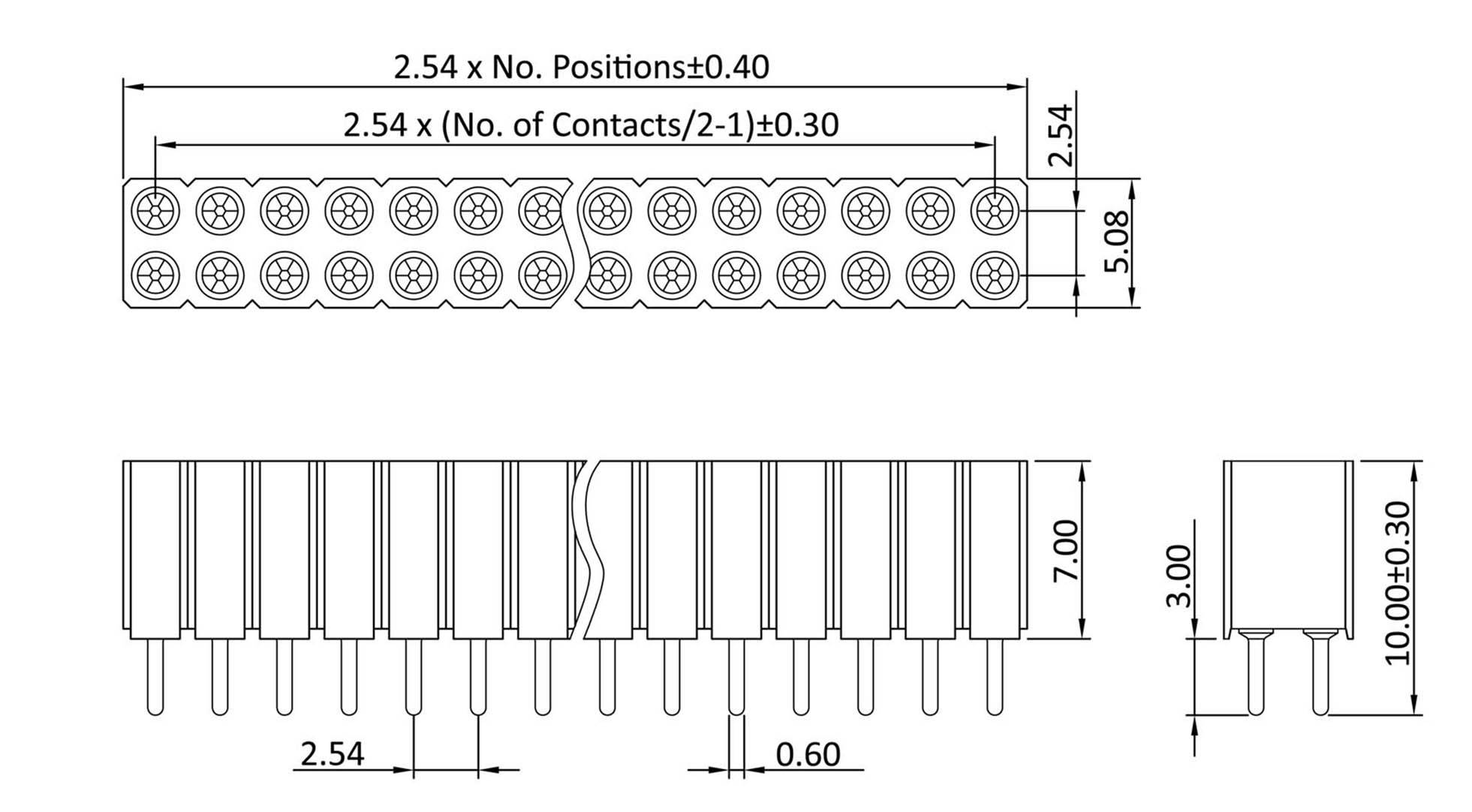

- Dim
(L x W x H) 10.16 x 10.00 x 5.08 mm
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
MP70D8
- Industrial packaging
No
- Content
1 pc(s)
- Width
10.00 mm
- Height
5.08 mm
- Length
10.16 mm
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-55 °C
- Type
MP70D8
